Agilent 1200 Preparative Pump User Manual 155
Configuring the Preparative Pump
9
Optional Interface Boards
Optional Interface Boards
BCD / External Contact Board
The Agilent 1100/1200 Series modules have one optional board slot that
allows to add an interface board to the modules. Some modules do not have
this interface slot. Refer to “Agilent 1100/1200 Series Interfaces” on page 16
for details.

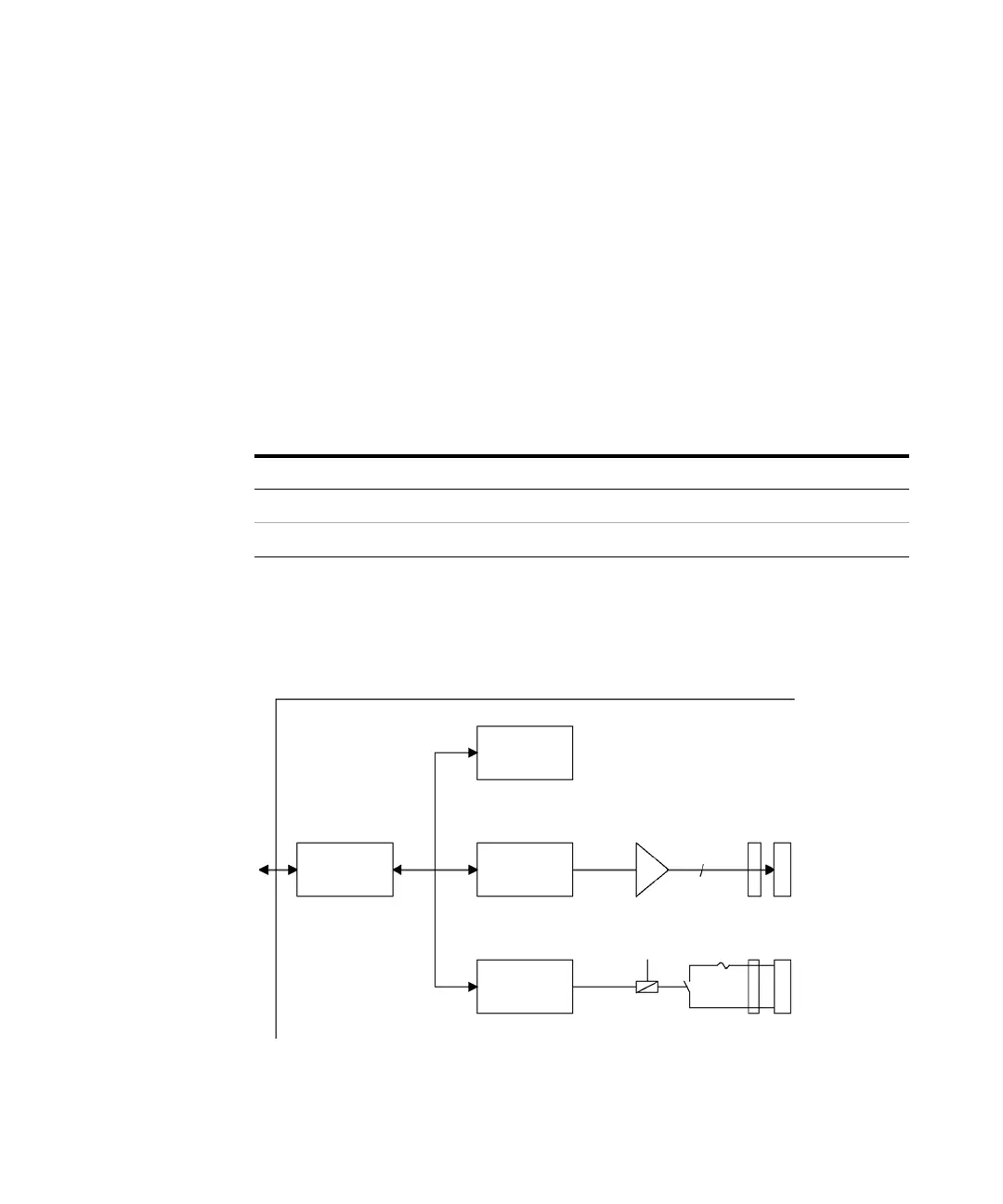

The BCD board provides a BCD output for the bottle number of the
Agilent 1200 Series autosampler and four external contacts. The external
contact closure contacts are relay contacts. The maximum settings are: 30 V
(AC/DC); 250 mA (fused).
Tabl e 21 Optional Interface Boards
Description Part Number
BCD Board G1351-68701
Fuse 250 mA (four are on the board) 2110-0004
A^cZYg^kZg
&'
)m
'*%b6
G;>[^aiZg
G;>[^aiZg
XdccZXidg
:miZgcVa
XdciVXih
7dVgY
^YZci^[^XVi^dc
EgdXZhhdg
^ciZg[VXZ
789
XdccZXidg
:miZgcVa
XdciVXi
789
gZ\^hiZg
