Agilent 1200 Preparative Pump User Manual 19
Introduction to the Preparative Pump
1
Agilent 1100/1200 Series Interfaces
The RS-232C is designed as DCE (data communication equipment) with a
9-pin male SUB-D type connector. The pins are defined as:

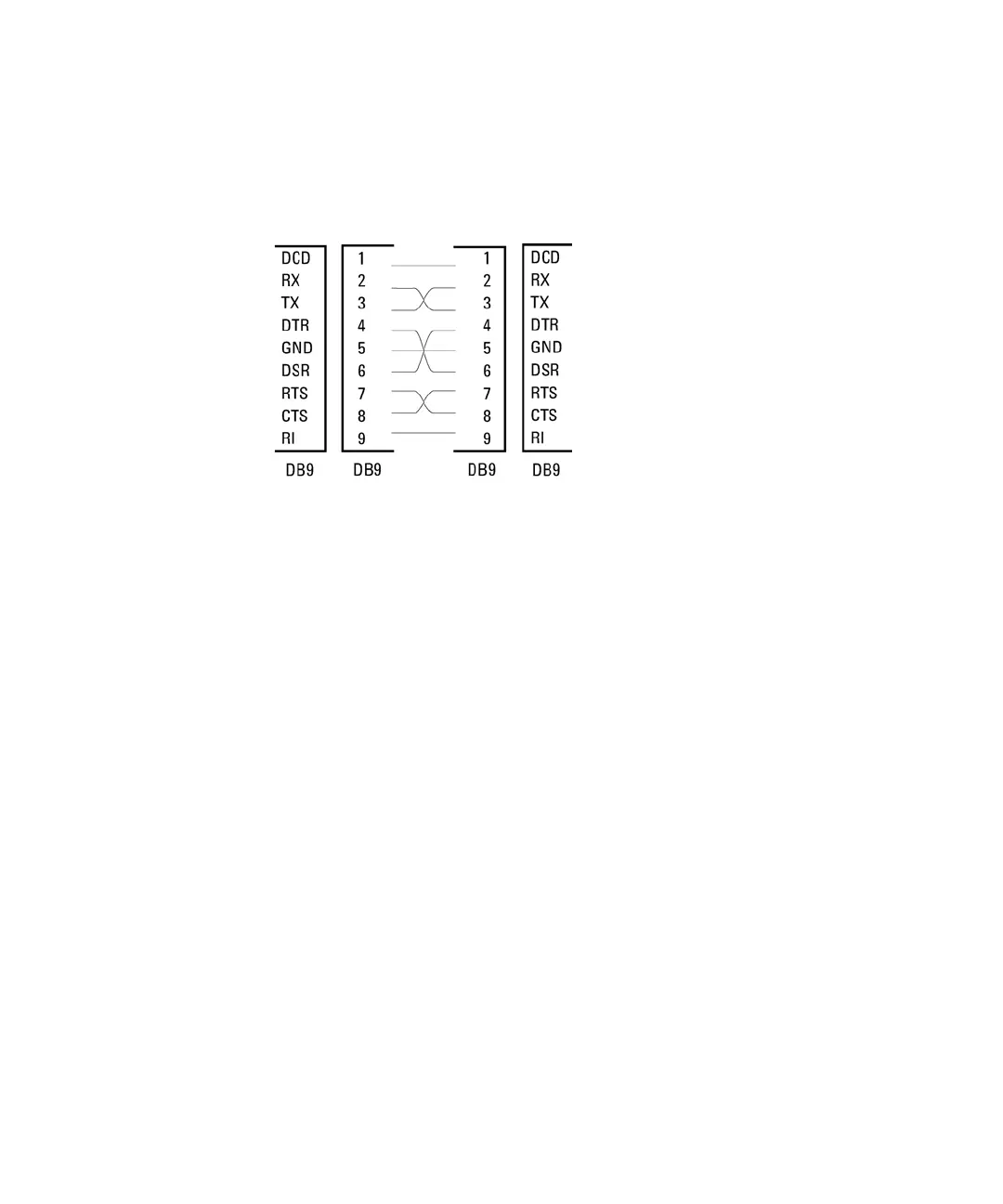

Figure 4 RS-232 Cable
Analog Signal Output
The analog signal output (e.g. detector signal or pump pressure signal) can be
distributed to a recording device. For details refer to the description of the
main board of the module.
APG Remote
The APG Remote connector may be used in combination with other analytical
instruments from Agilent Technologies if you want to use features as common
shut down, prepare, and so on.
Remote control allows easy connection between single instruments or systems
to ensure coordinated analysis with simple coupling requirements.
The subminiature D connector is used. The module provides one remote
connector which is inputs/outputs (wired-or technique).
To provide maximum safety within a distributed analysis system, one line is
dedicated to SHUT DOWN the system’s critical parts in case any module
detects a serious problem. To detect whether all participating modules are
switched on or properly powered, one line is defined to summarize the
POWER ON state of all connected modules. Control of analysis is maintained
>chigjbZci
E8
BVaZ ;ZbVaZ ;ZbVaZ BVaZ
