Exchanging the Outlet Valve
Exchanging the Outlet Valve
When If internally leaking
Tools required p/n Description
8710-0510 Wrench open 1/4 — 5/16 inch
8710-1924 Wrench open 14 mm
Parts required p/n Description
G1312-60067 Outlet valve 1220/1260
Preparations • Switch off pump at the main power switch
• Remove the front cover
1 Using a 1/4 inch wrench disconnect the valve capillary
from the outlet valve. Using the 14 mm wrench loosen the
valve and remove it from the pump body.
2 Do not disassemble the outlet valve, as this can damage
the valve.

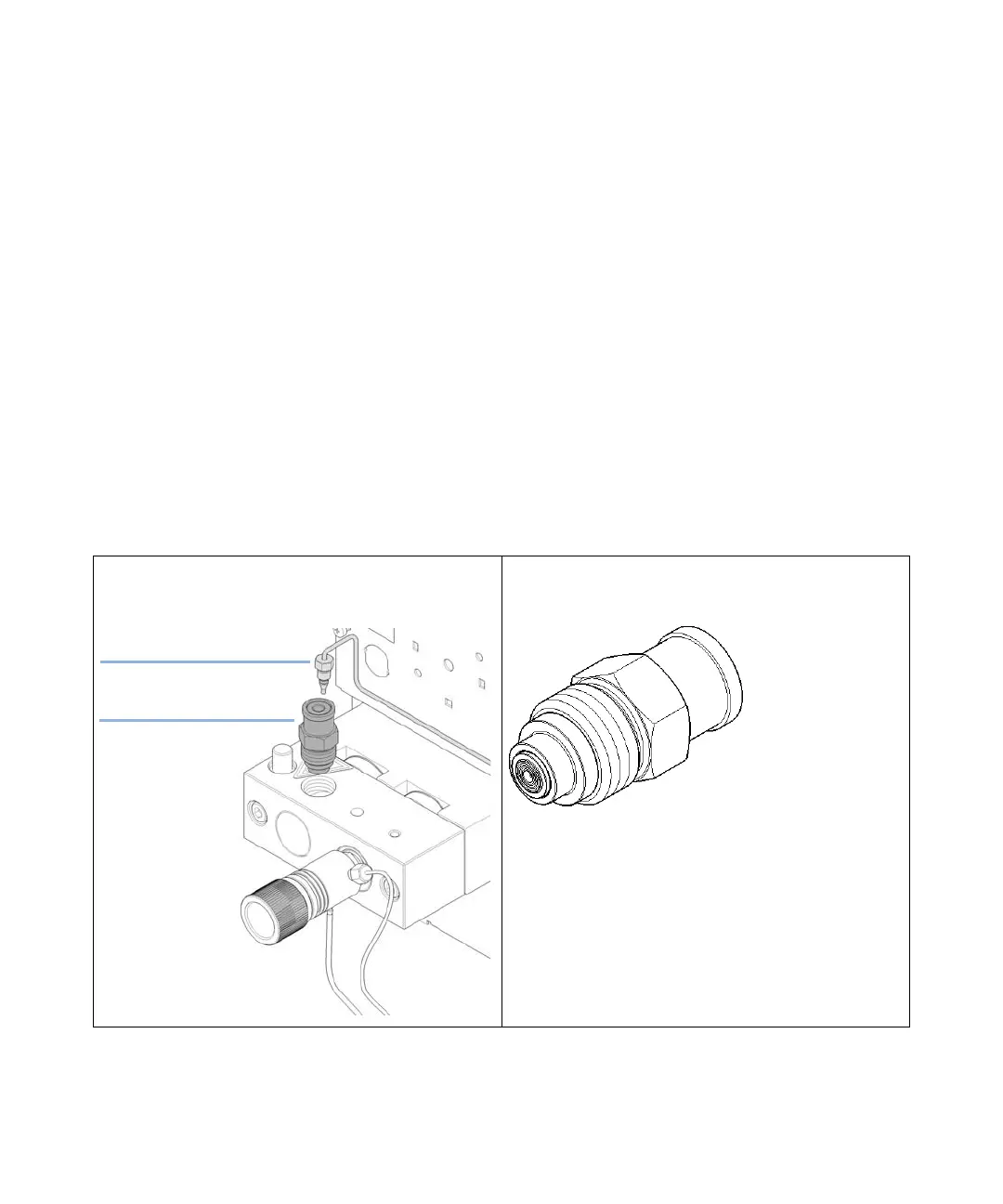

Valve capillary
Outlet valve
