BCD / External Contact Board
The Agilent 1200 Infinity Series modules have one optional board slot that
allows to add an interface board to the modules. Some modules do not have
this interface slot. Refer to “Interfaces” on page 179 for details.
Optional Interface Boards
The BCD board provides a BCD output for the bottle number of the
Agilent 1200 Series autosampler and four external contacts. The external
contact closure contacts are relay contacts. The maximum settings are: 30 V
(AC/DC); 250 mA (fused).
p/n Description
G1351-68701 Interface board (BCD) with external contacts and BCD outputs
2110-0004 Fuse for BCD board, 250 mA

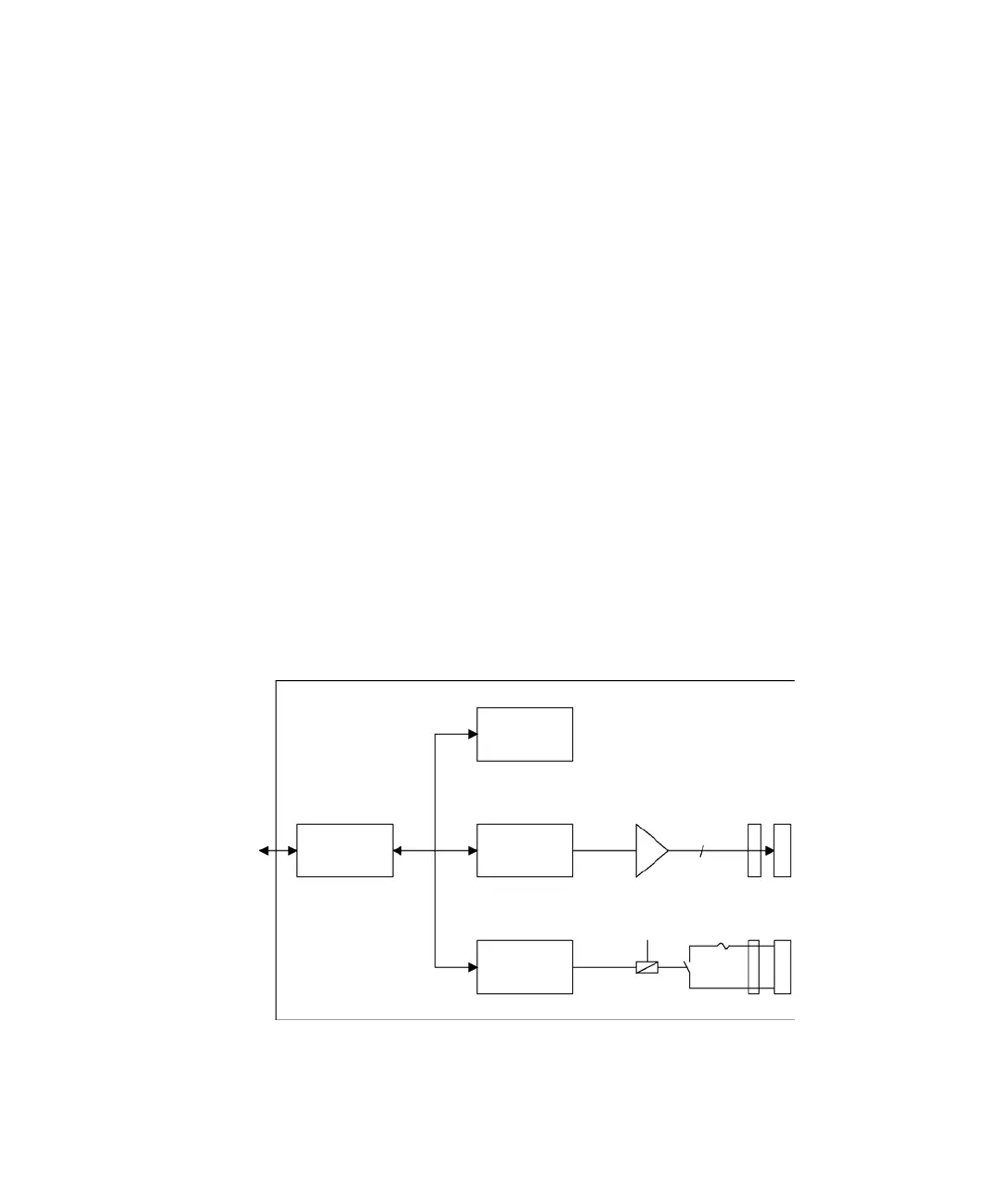

A^cZYg^kZg
&'
)m
'*%b6
G;>[^aiZg
G;>[^aiZg
XdccZXidg
:miZgcVa
XdciVXih
7dVgY
^YZci^[^XVi^dc
EgdXZhhdg
^ciZg[VXZ
789
XdccZXidg
:miZgcVa
XdciVXi
789
gZ\^hiZg
