Maintenance
9
Maintenance of a Pump Head Without Seal Wash Option
5
Using the plastic side of the insert tool, insert new seals
into the pump head.
6 Reassemble the pump head assembly. Note the correct
position of the pin on the support ring.
7 Insert the pistons and carefully press them into the seals. 8 Tighten the lock screw.
Next Steps:
9 If a standard seal has been installed, run the seal wear-in procedure, see “Seal Wear-in Procedure” on page 130, which
includes a replacement of the purge valve frit.
10 For the normal phase seal, the purge valve frit should be replaced, see “Exchanging the Purge Valve Frit” on page 117.

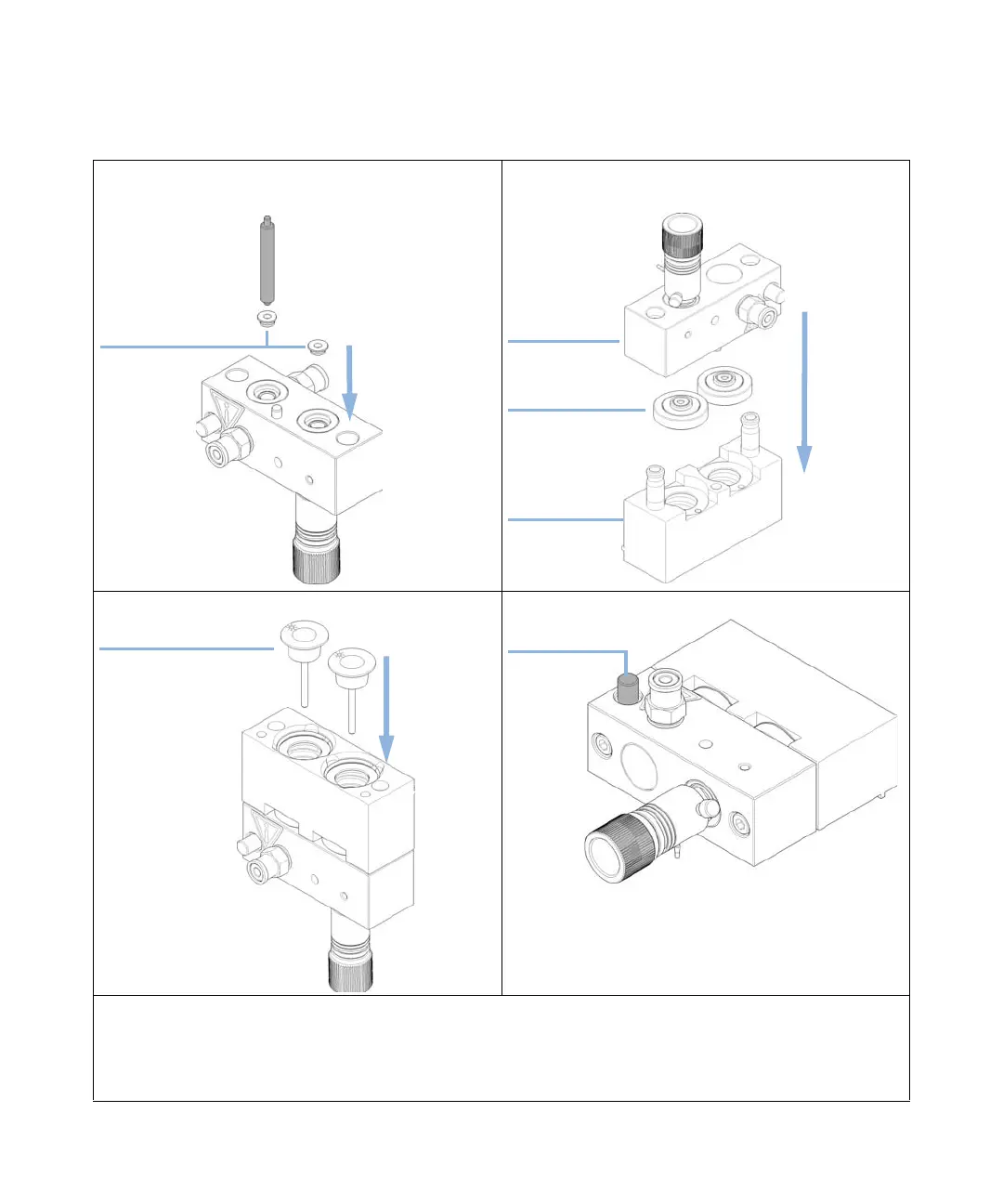

Piston seals
Ejbe]ZVY
Hjeedgig^c\
E^hidc]djh^c\
Pistons
Lock screw
