Overview of the Hydraulic Path
the inner diameter of the pump head chamber allowing the solvent to fill the
gap inbetween. The first piston has a stroke volume in the range of 20 – 100 µL
depending on the flow rate. The microprocessor controls all flow rates in a
range of 1 µL/min – 10 mL/min. The inlet of the first pumping unit is
connected to the passive inlet valve.
The outlet of the first piston/chamber unit is connected through the outlet
valve and the damping unit to the inlet of the second piston/chamber unit. The
outlet of the purge valve assembly is then connected to the following
chromatographic system.

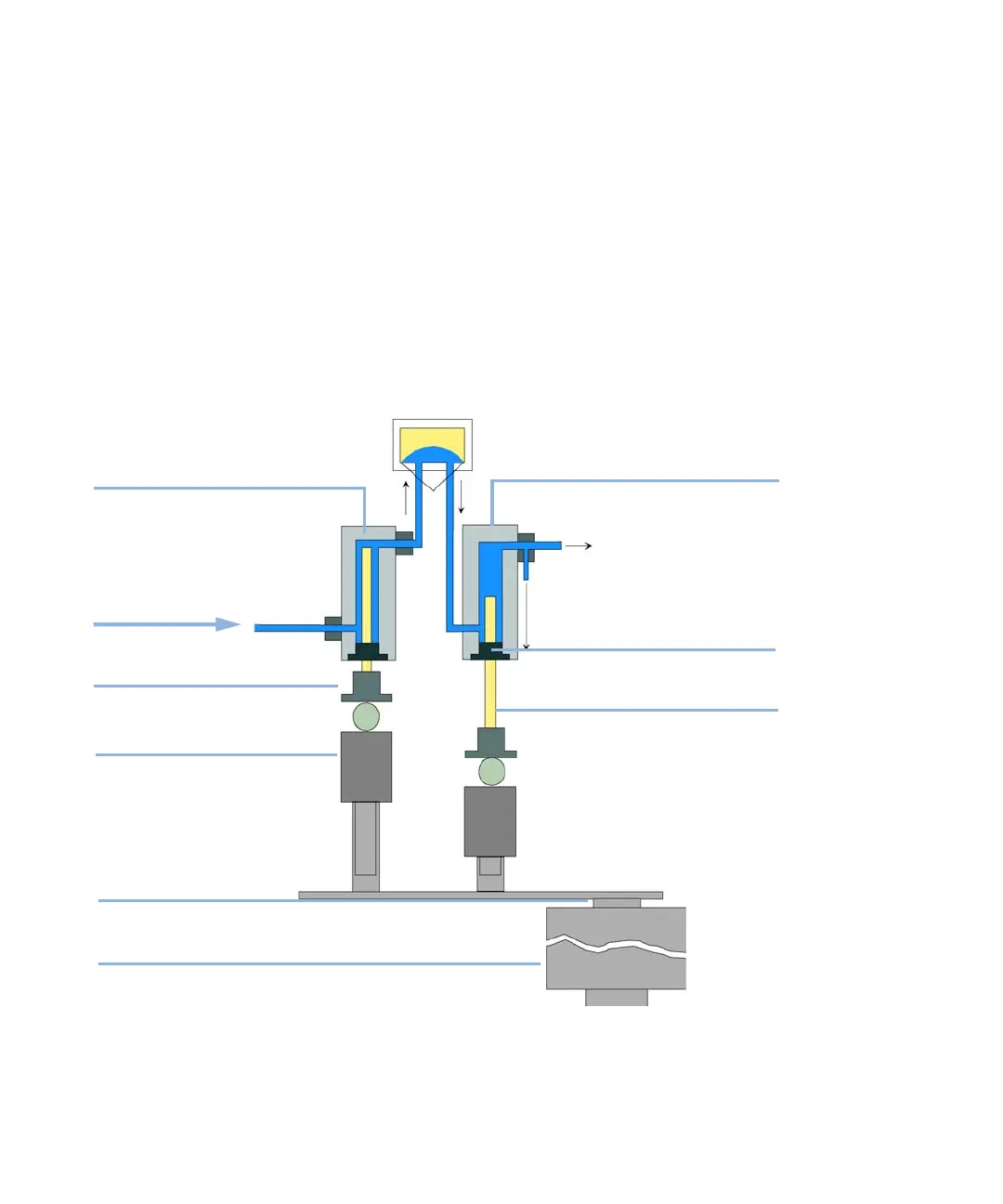

Figure 3 Principle of the Pump
>caZikVakZ
HZVa
7VaahXgZlYg^kZ
Bdidgl^i]ZcXdYZg
<ZVg
IdlVhiZ
Ejg\ZkVakZ
IdXdajbc
9VbeZg
DjiaZi
kVakZ
EjbeX]VbWZg& EjbeX]VbWZg'
E^hidc&
E^hidc'
;gdbhdakZciWdiiaZ$
YZ\VhhZg
