1260 Infinity QuatPump VL User Manual 133
Maintenance
9
Exchanging the Multi-Channel Gradient Valve (MCGV)
5

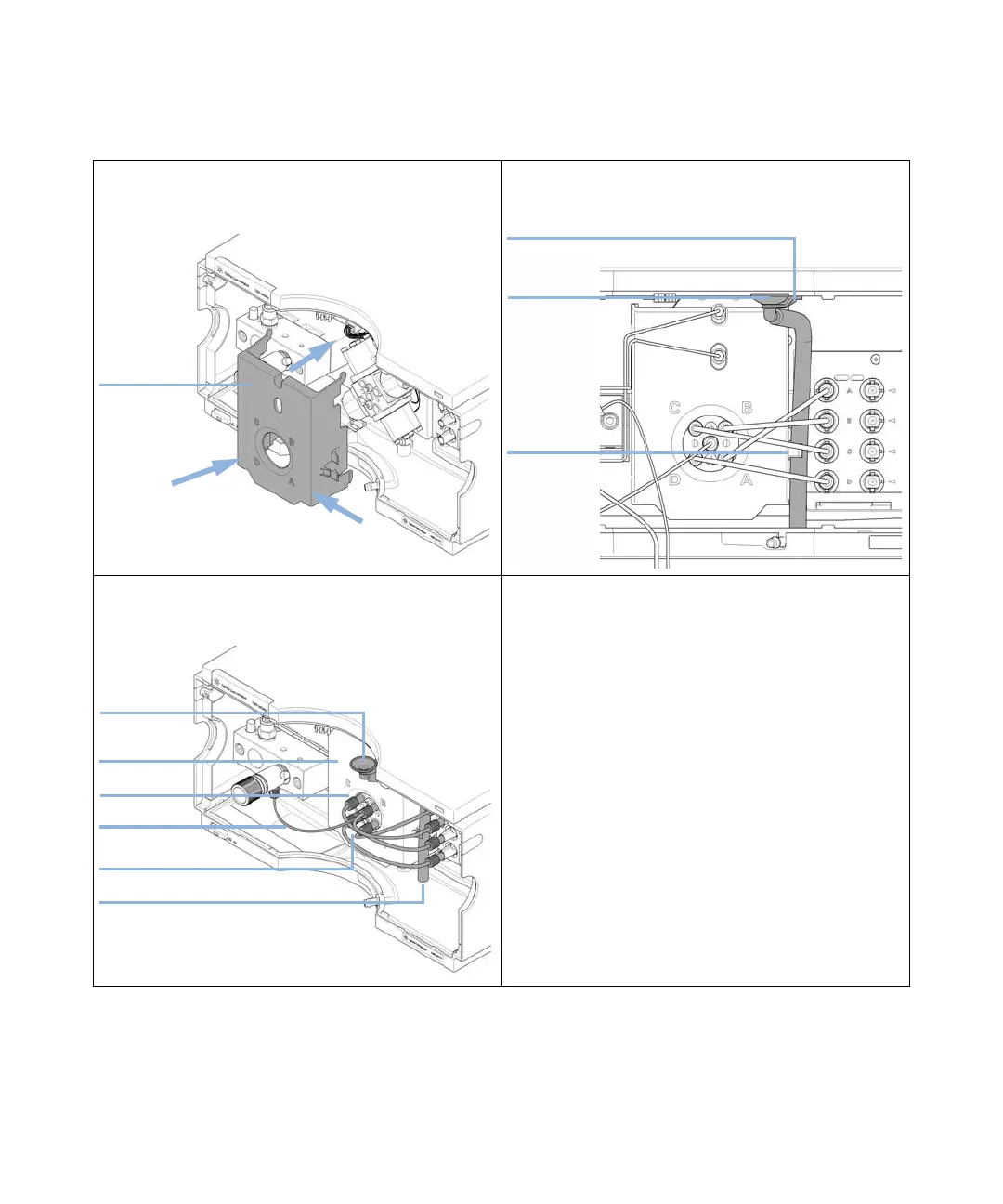

Install the MCGV cover. 6 Reconnect the waste funnel with the waste tube holder in
the top cover. Insert waste tube in the holder in the leak
pan and clip tube to the MCGV cover.
7 Reconnect the tube from the inlet valve to the middle
position of the MCGV. Connect solvent tubes for channels
A-D from the MCGV to the degasser outlets.
8dkZg
LVhiZijWZ]daYZg
LVhiZ[jccZa
8a^e
LVhiZ[jccZa
B8<K
8dccZXi^c\ijWZ
HdakZciijWZh
LVhiZijWZ
B8<KXdkZg
