36 1260 Infinity QuatPump VL User Manual
3 Installing the Pump
Installing the Pump
4 Connect the required interface cables to the quaternary pump, see
“Connecting Modules and Control Software” on page 37.
5 Connect all capillaries, solvent tubes and waste tubing (see “Flow
Connections of the Pump” on page 39).
6 Press the power switch to turn on the module.
7 Purge the quaternary pump (see “Inital Priming” on page 42).

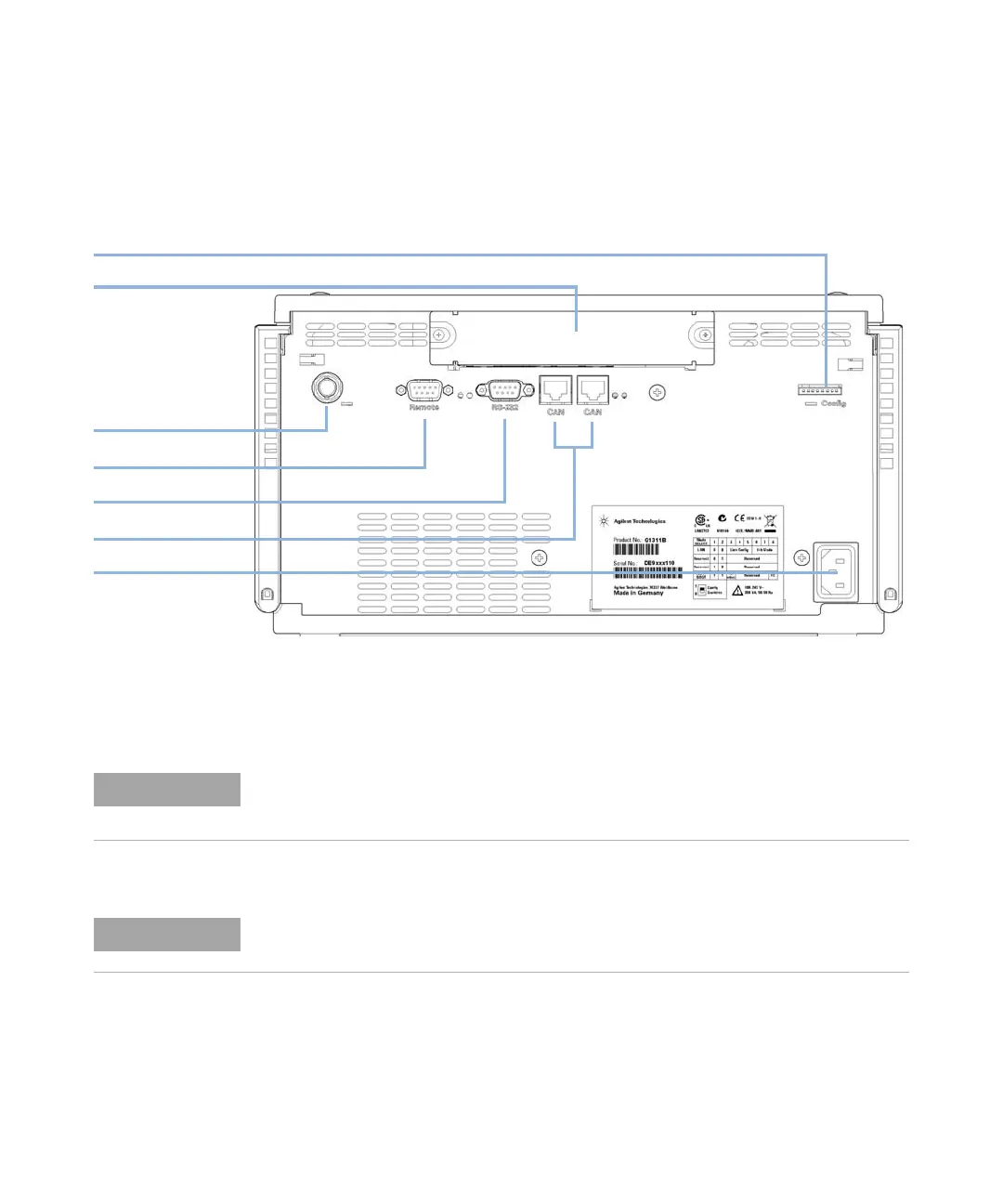

8dc[^\jgVi^dchl^iX]
Hadi[dg^ciZg[VXZWdVgY
6cVad\egZhhjgZ
6E<gZbdiZ
GH"'('8
86C
EdlZg
NOTE
The power switch stays pressed in and a green indicator lamp in the power switch is on
when the module is turned on. When the line power switch stands out and the green light
is off, the module is turned off.
NOTE
The pump was shipped with default configuration settings. To change these settings, see
“Setting the 8-bit Configuration Switch (without On-board) LAN” on page 185.
