Measurement Functions
Standby Function
Output Sequence of Standby Channels
Output sequence of measurement units is defined on the MEASURE: OUTPUT
SEQUENCE screen. Example output sequence setup is shown in the following
table, and Figure 3-2 shows timing diagram of this example:

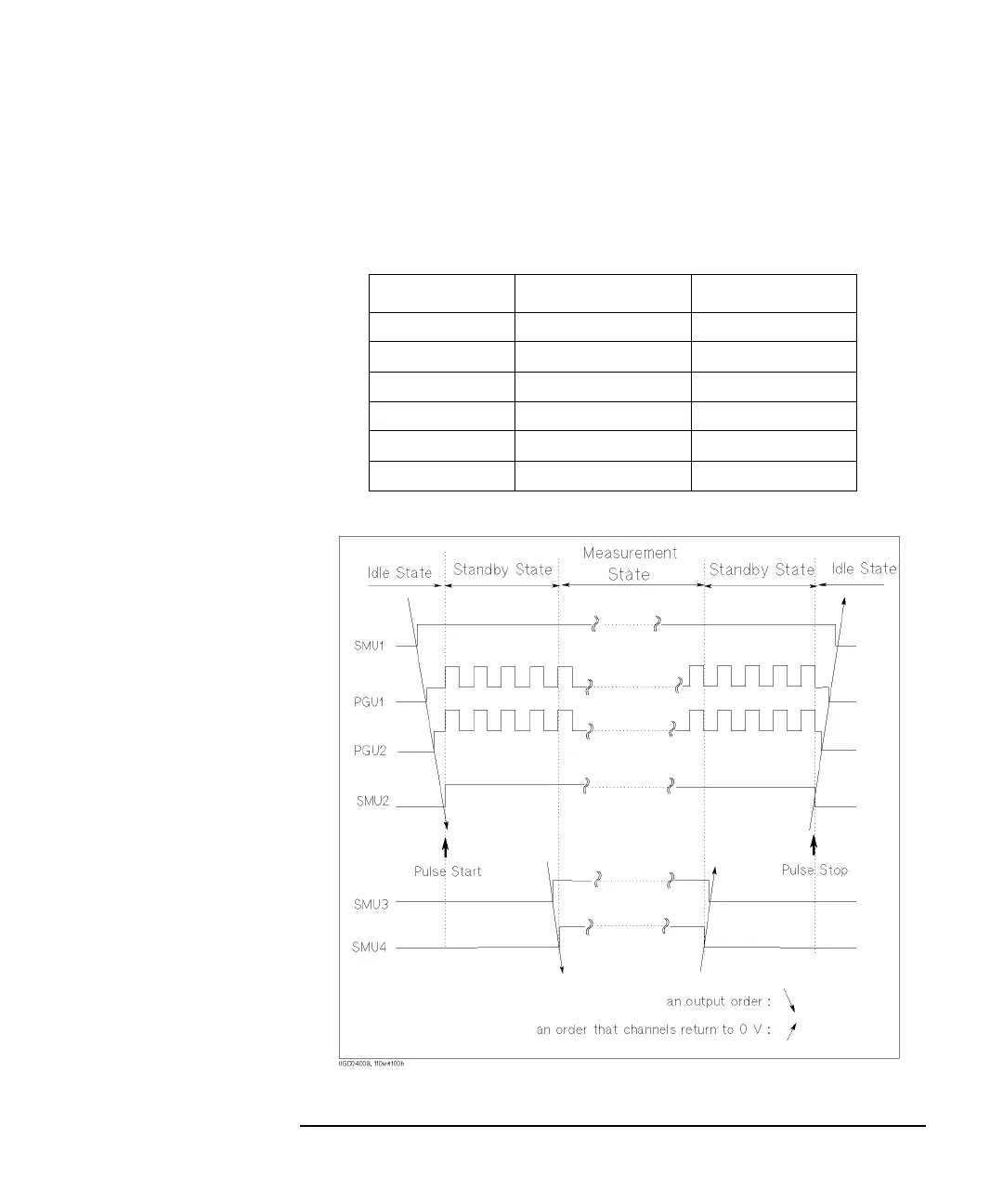

Figure 3-2 Example of the Output Sequence of the Standby Channels
Unit Output Sequence STBY
SMU1 1 ON
SMU3 2 OFF
SMU4 3 OFF
PGU1 4 ON
PGU2 5 ON
SMU2 6 ON
