Agilent 4155B/4156B User’s Guide Vol.2, Edition 5 3-39
Measurement Functions
Trigger Function
Trigger Function
Trigger function is used to perform measurements synchronized with the
measurements or source outputs by external instruments..
Connection

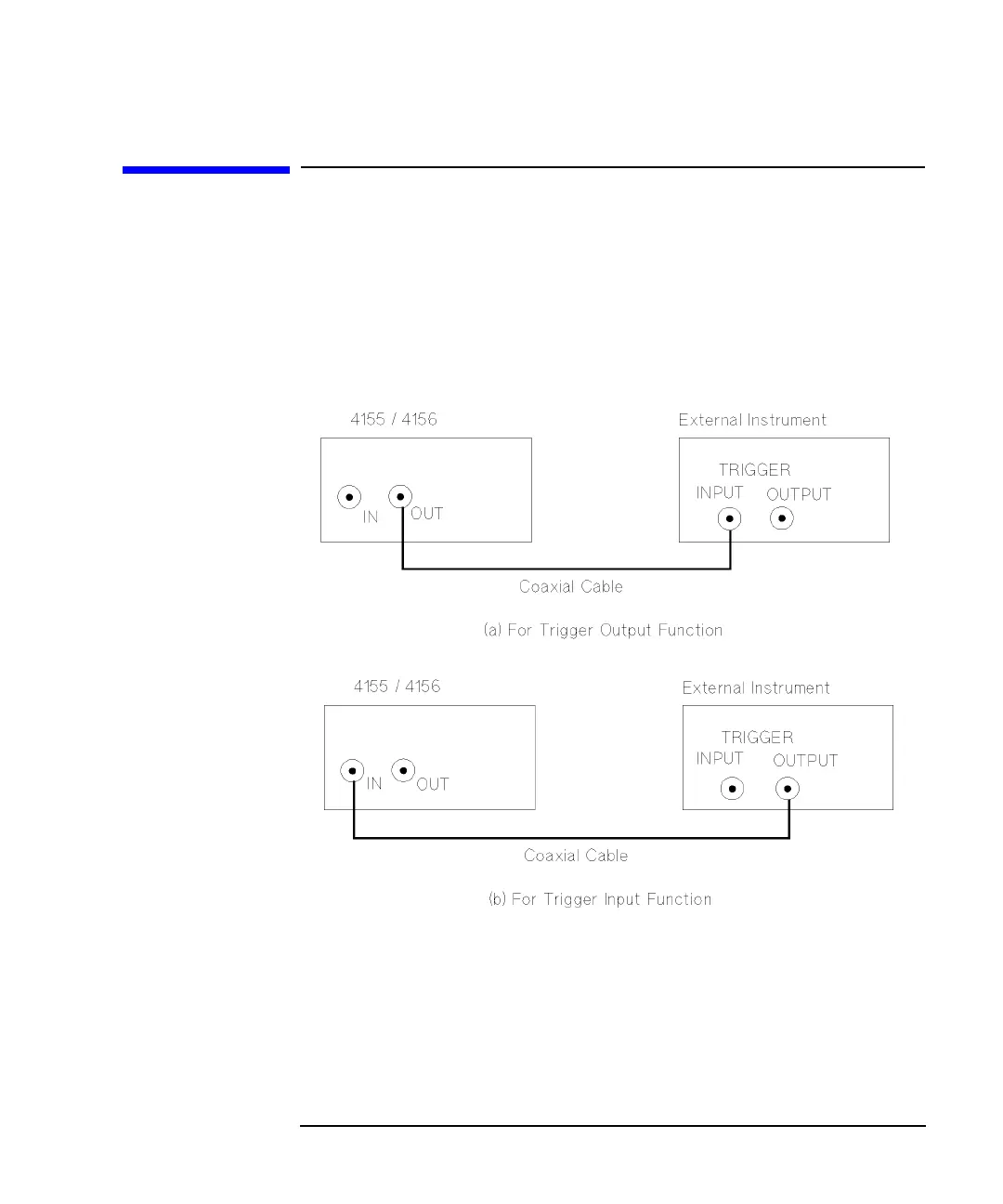

The following figure shows the connection between an 4155B/4156B and an
external instrument.
