Screen Organization
MEASURE Screen Group

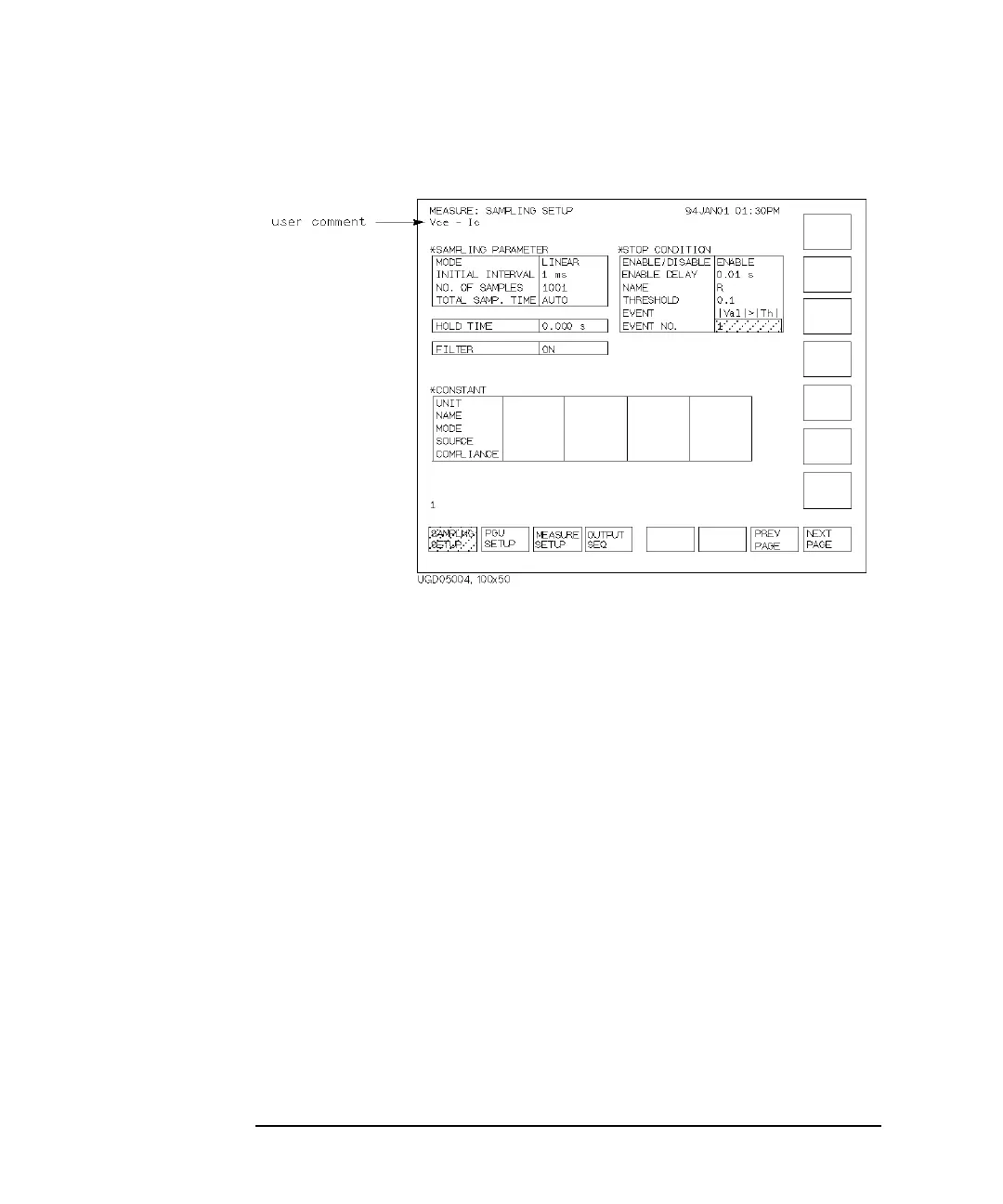

MEASURE: SAMPLING SETUP screen
On this screen, you set sampling parameters for each unit. For details, see
“Sampling Measurement Mode” in Chapter 2.
User Comment
In this field, you can enter a desired comment, which is also displayed in the
CHANNELS, MEASURE, DISPLAY, and GRAPH/LIST screen groups.
SAMPLING PARAMETER
• MODE
MODE field sets the sampling mode. In this field, select:
• LINEAR secondary softkey to specify the linear sampling mode.
• LOG10, LOG25, or LOG50 secondary softkey to specify the logarithmic
sampling mode. The number specifies how many samples to take per
decade.
• Select THINNED-OUT softkey to specify the thinned-out sampling mode,
which discards less recent samples.
To Next Page
