1-16 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Measurement Units
Voltage Source Unit (VSU)
Voltage Source Unit (VSU)

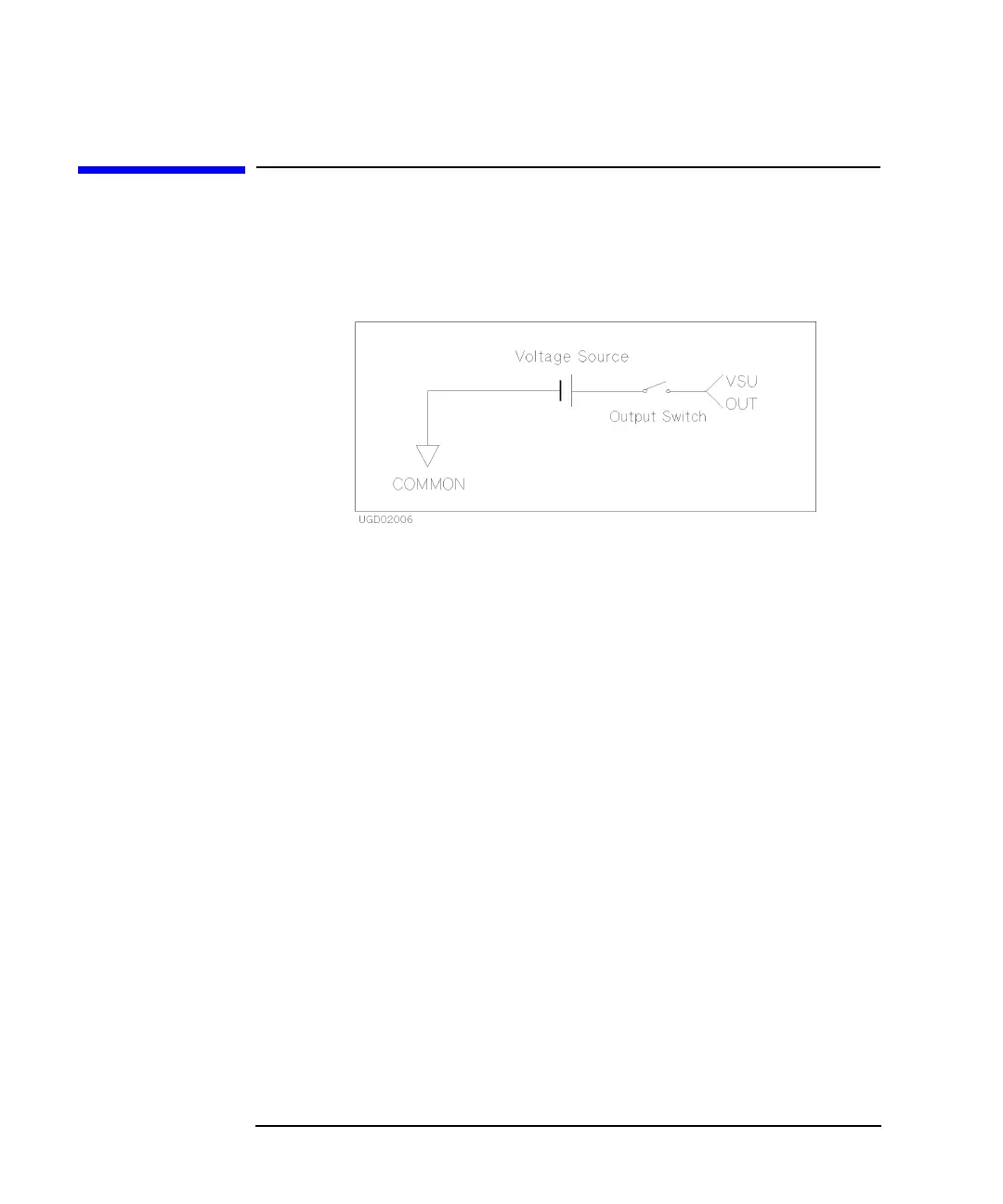

Figure 1-6 shows a simplified voltage source unit (VSU) circuit diagram.
Figure 1-6 Simplified VSU Circuit Diagram
• VSU can force up to ±20 V.
• Only range available is 20 V range with 1 mV resolution, so output range is
automatically set to 20 V.
• Current compliance is automatically set to ±100 mA.
