If You Have A Problem
When You Make A Measurement
If Measured Value Oscillates when Measuring Negative
Resistance
If the DUT has negative resistance characteristics, SMUs may oscillate. Because
SMUs operate as negative feedback amplifier.
To solve this problem:

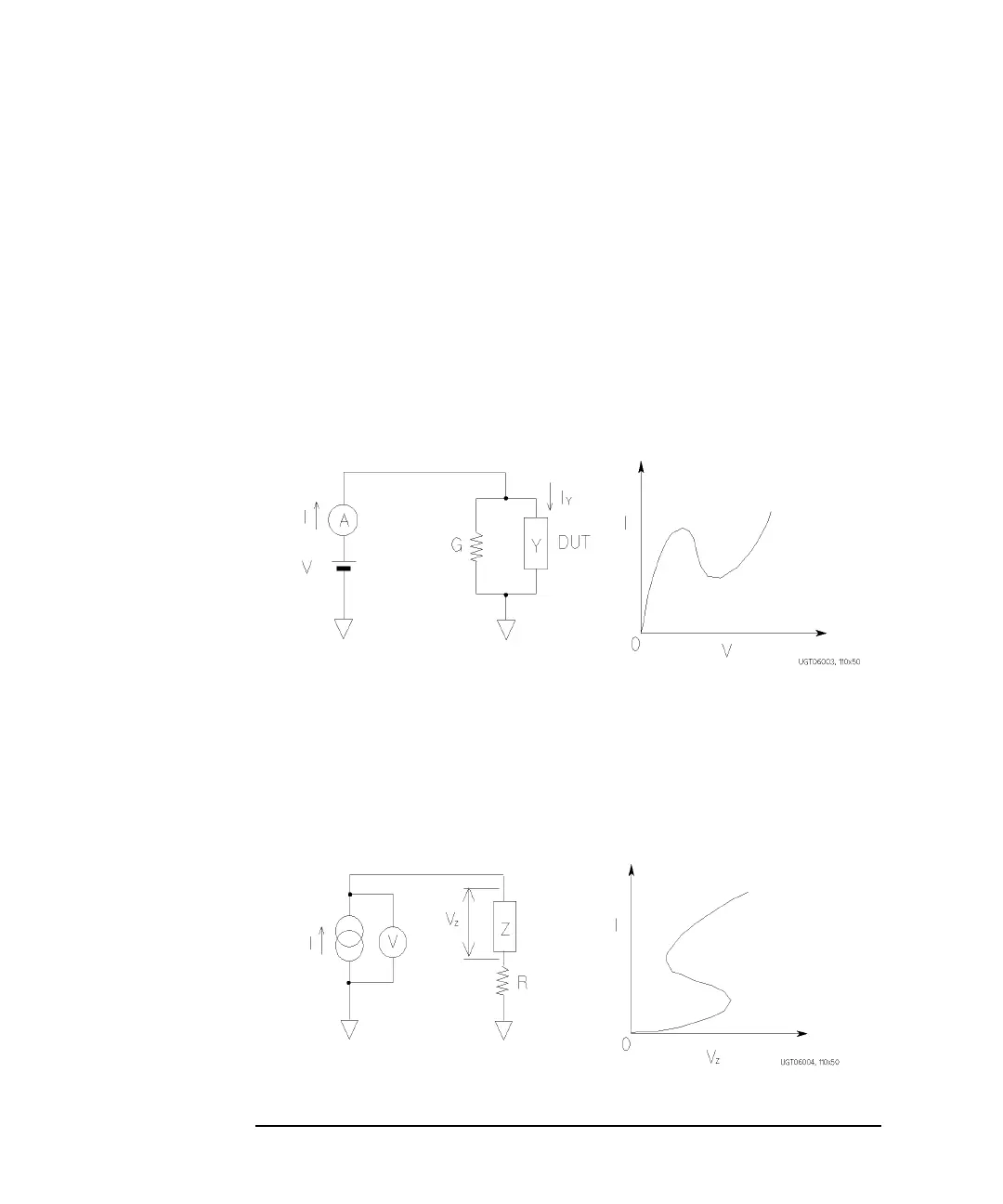

• For voltage controlled negative resistance device
• Connect G in parallel with your DUT to cancel negative resistance. To
obtain an output I-V curve, use the following equation.
I
Y
= I - G * V
• For current controlled negative resistance device
• Connect R in series with your DUT to cancel negative resistance. To obtain
an output I-V curve, use the following equation.
V
Z
= V - R * I
• If the resistance of the DUT is less than 1 MW, you can use R-Box.
