6-12 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Screen Organization
CHANNELS Screen Group

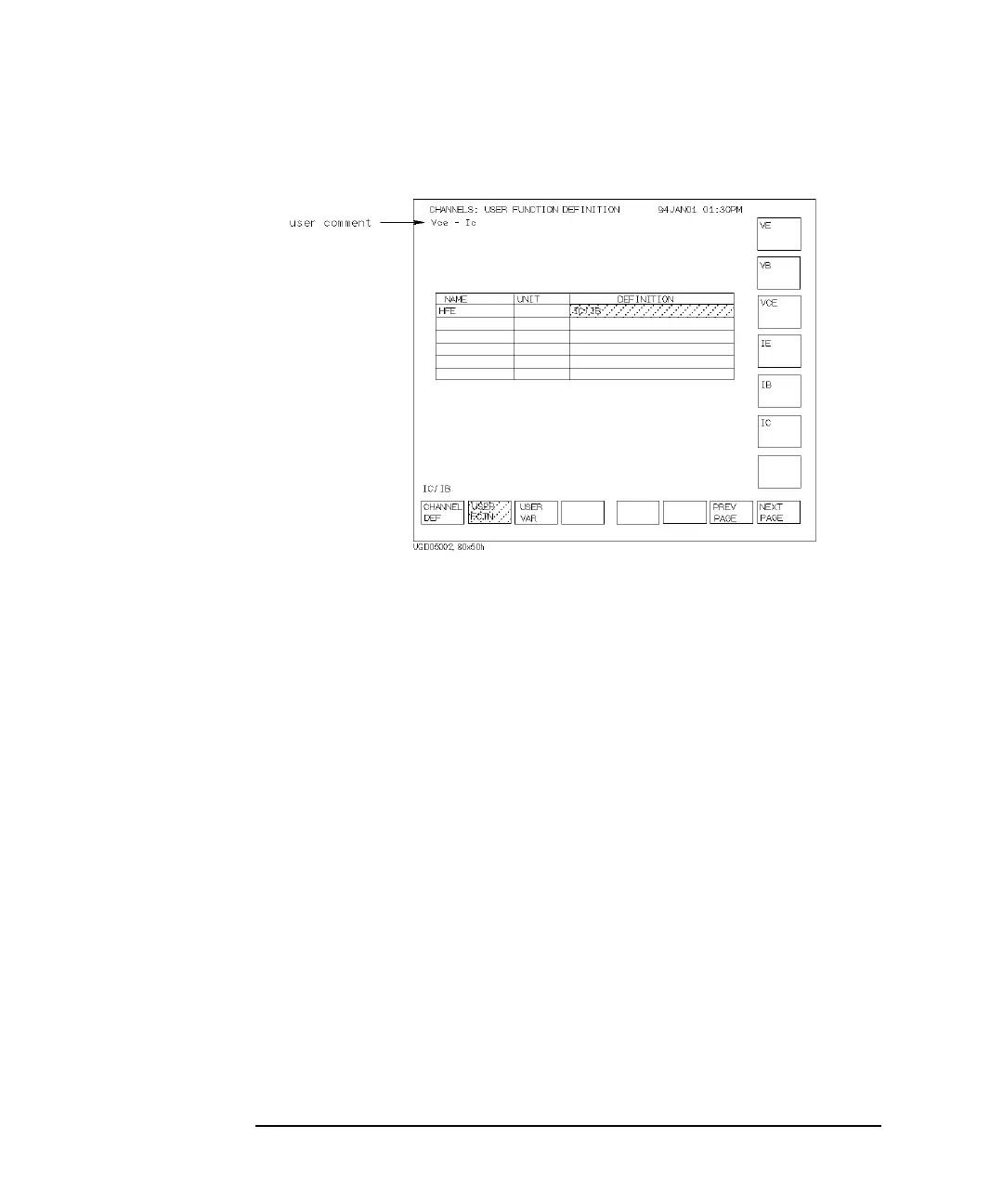

CHANNELS: USER FUNCTION DEFINITION screen
On this screen, you define user functions. For details about user functions, refer to
“User Function” in Chapter 7.
User Comment
In this field, you can enter a desired comment, which is also displayed in the
CHANNELS, MEASURE, DISPLAY, and GRAPH/LIST screen groups.
NAME
NAME field defines the user function name. In this field, you can enter a name by
using the keyboard or front panel keys. Or you can select variables that are shown
on the secondary softkeys.
To delete a user function, you can select DELETE ROW softkey to delete the
NAME, UNIT, and DEFINITION entries.
After defining a user function, you can use this variable name for reference on other
screens.
Restrictions
• NAME must be 6 or less alphanumeric characters. First character must be
alphabet character.
• NAME must be different from other names. The alphabet characters are case
sensitive. For example, HFE is different from Hfe.
