Screen Organization
MEASURE Screen Group

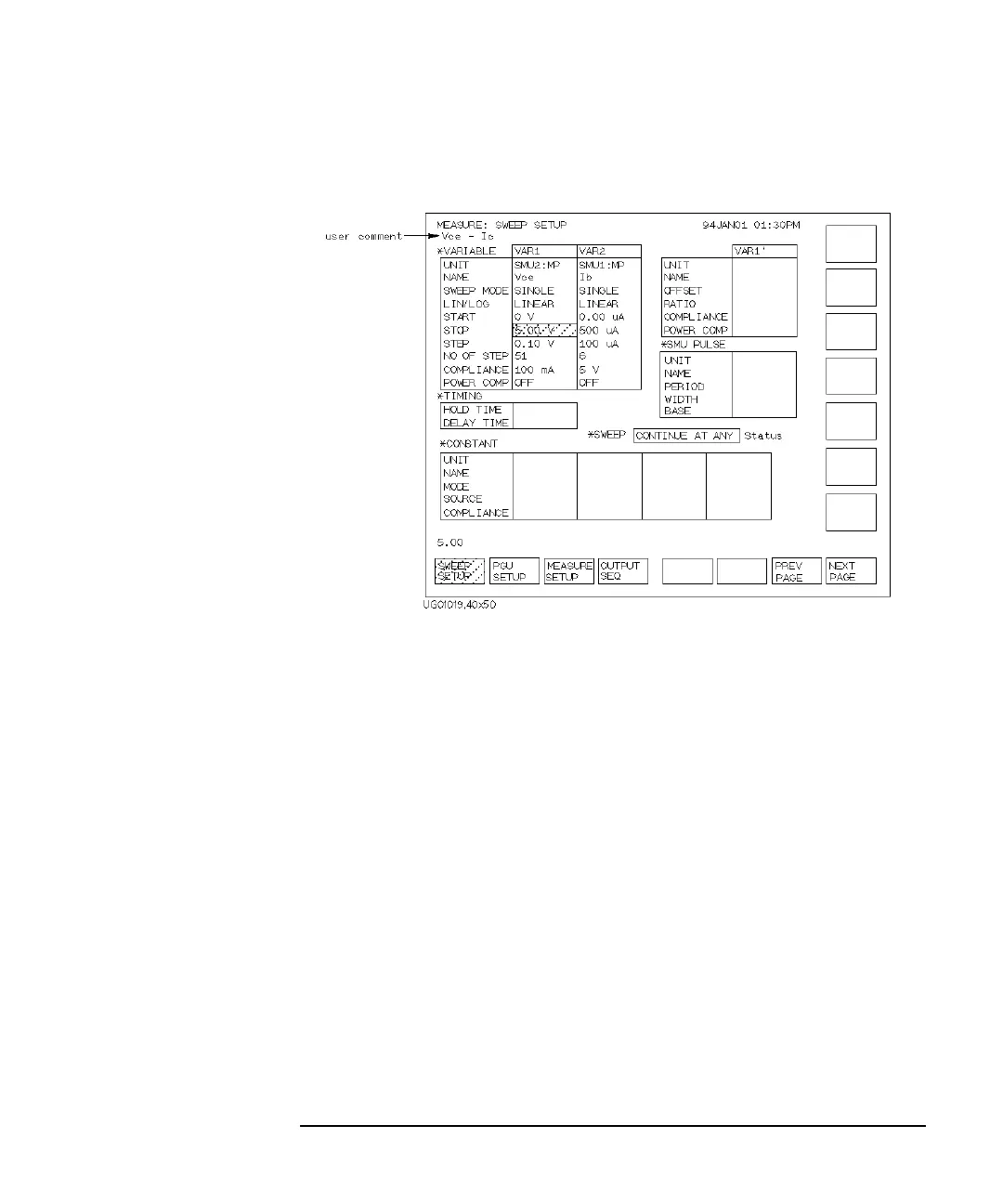

MEASURE: SWEEP SETUP screen
On this screen, you set output parameters for each unit.
User Comment
In this field, you can enter a desired comment, which is also displayed in the
CHANNELS, MEASURE, DISPLAY, and GRAPH/LIST screen groups.
VAR1 parameters
In this column, you set up output parameters for primary sweep unit. UNIT and
NAME are defined on CHANNELS: CHANNEL DEFINITION screen.
• SWEEP MODE
SWEEP MODE field sets single or double sweep mode. In this field, select:
• SINGLE secondary softkey to specify the single sweep mode.
• DOUBLE secondary softkey to specify the double sweep mode.
