Agilent 4155B/4156B User’s Guide Vol.2, Edition 5 5-21
Analyzing Measurement Results
Manual Analysis
To Change Variable Assigned to X, Y1, or Y2 Axis
1. Select DISPLAY SETUP primary softkey.
2. Select RE-SETUP GRAPH secondary softkey.
3. Move pointer to variable field of X, Y1, or Y2 axis by using arrow keys, then
select secondary softkey to set the desired variable.
4. Select EXIT primary softkey to exit RE-SETUP GRAPH mode.
To exit without changing variable assigned to X, Y1, or Y2 axis
Select CANCEL primary softkey.
Example

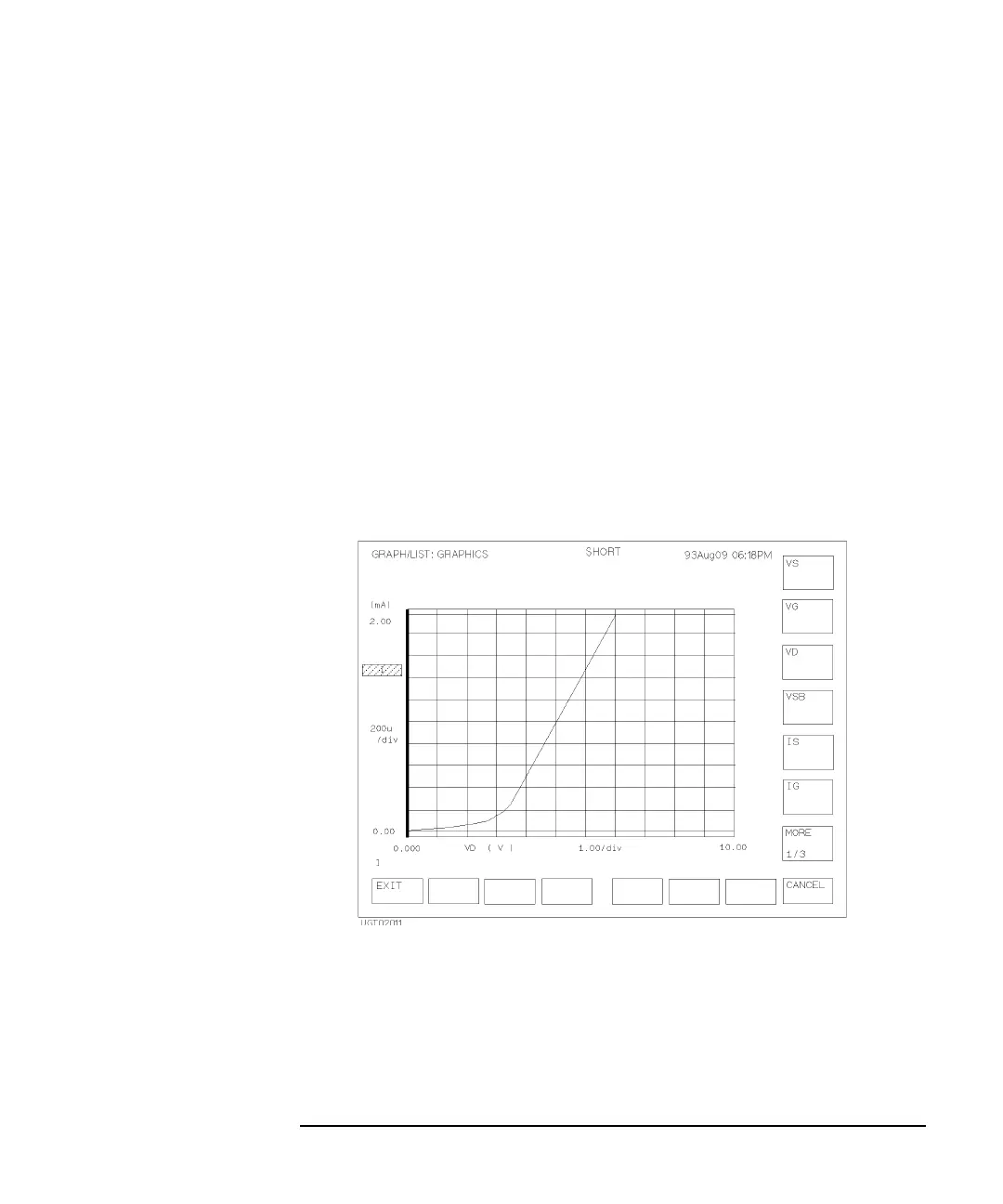

The following figure shows an example setup to change the variable that is assigned
to Y1 axis.
