R-BOX Control
Non-Kelvin Connections

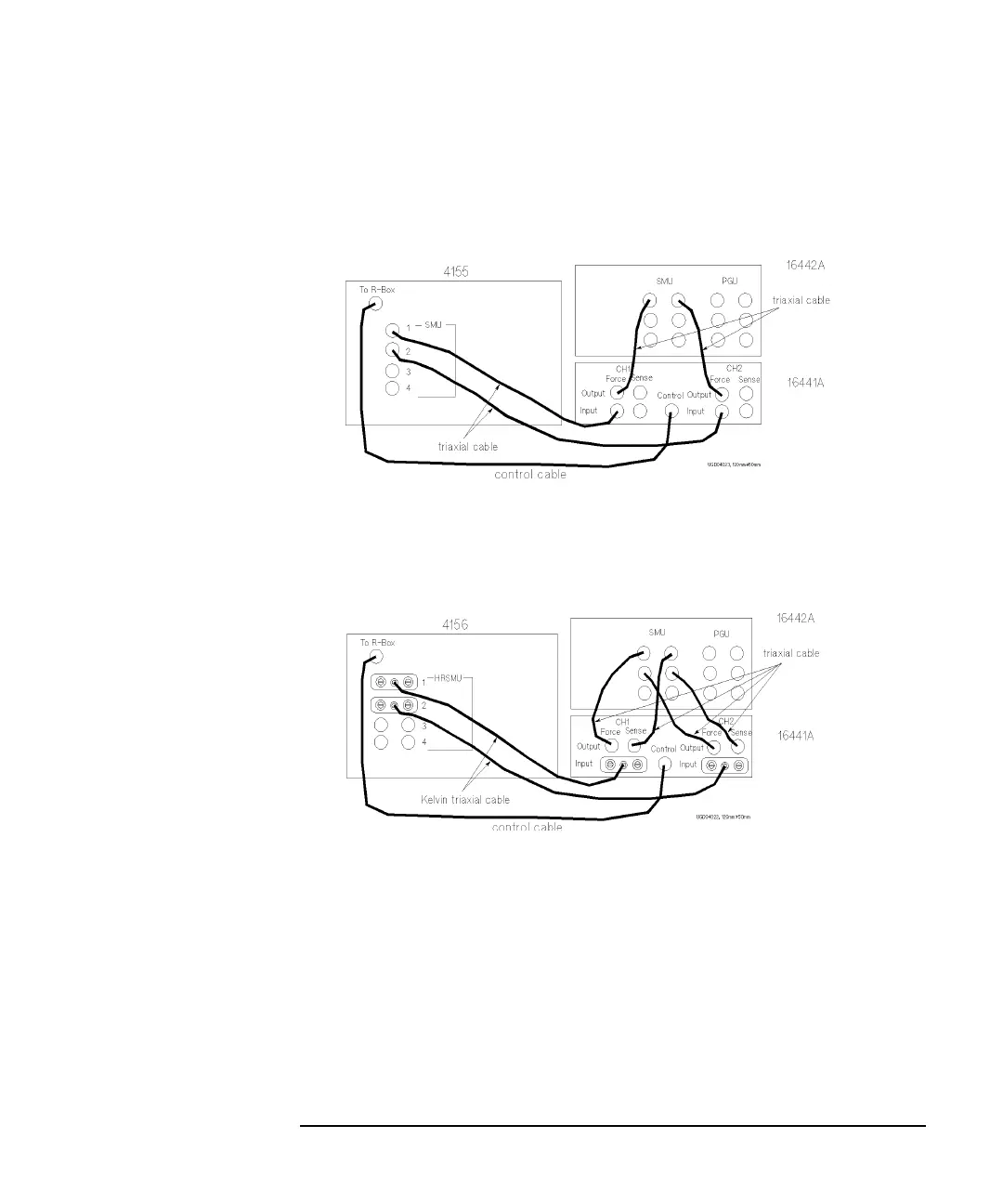

The following figure shows the 16441A R-Box connections using non-Kelvin
connections.
Kelvin Connections
The following figure shows the 16441A R-Box connections using Kelvin
connections. Only 0 ohm is available for the Kelvin connection.
