1-12 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Measurement Units
Source/Monitor Unit (SMU)

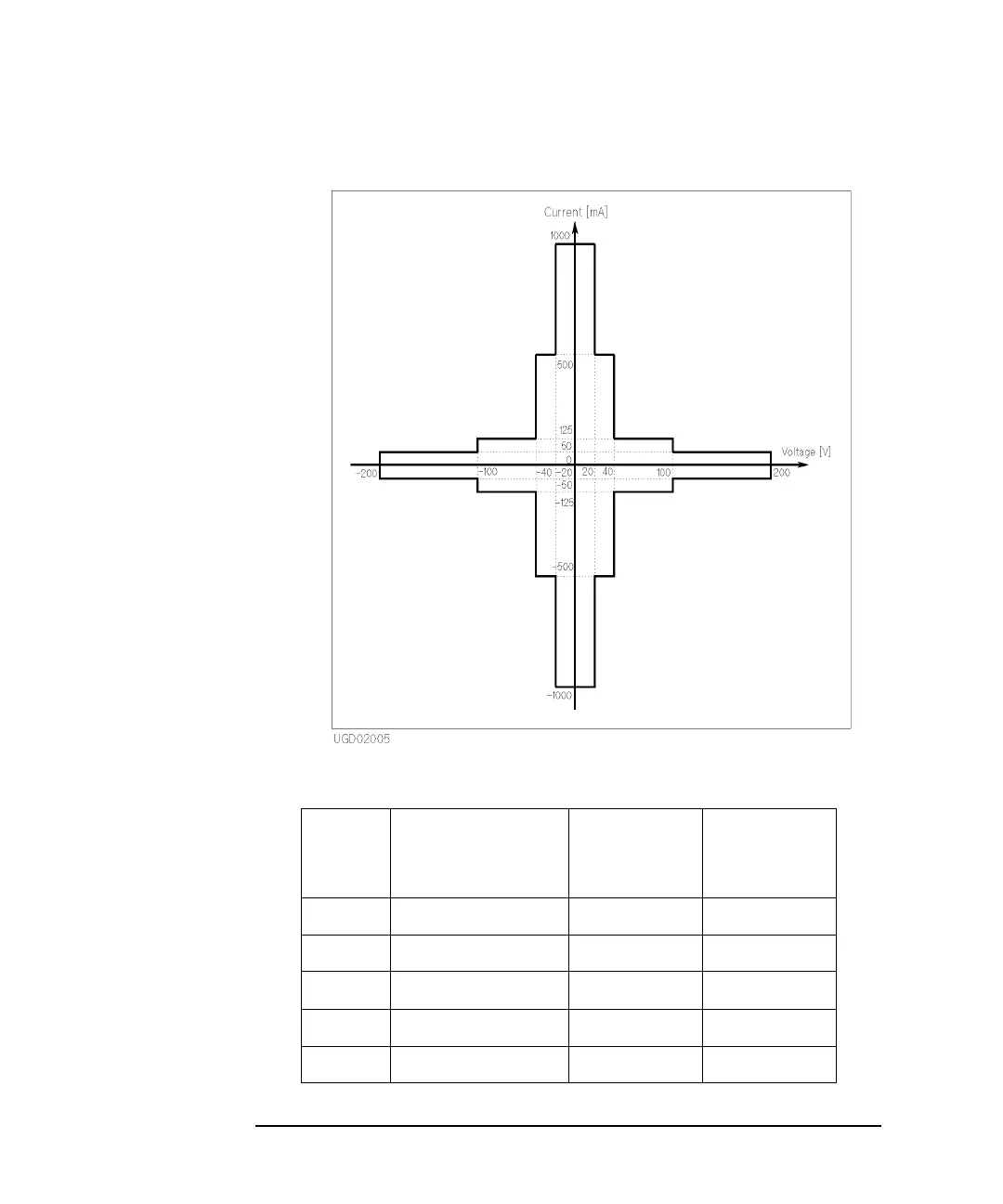

Figure 1-5 HPSMU Output and Measurement Ranges
Table 1-9 HPSMU Output Voltage Ranges and Resolutions
Range Output Value
Output
Resolution
Current
Compliance
Range
2 V 0 £ ½V½ £ 2 V 100 mV ±1000 mA
20 V 0 £ ½V½ £ 20 V 1 mV ±1000 mA
40 V 0 £ ½V½ £ 40 V 2 mV ±500 mA
100 V 0 £ ½V½ £ 100 V 5 mV ±125 mA
200 V 0 £ ½V½ £ 200 V 10 mV ±50 mA
