2-32 Agilent 4155B/4156B User’s Guide Vol.2, Edition 5
Measurement Mode
Sampling Measurement Mode
Rule to determine @TIME:
@TIME value is determined by the following rule. Data measured at @TIME=Tlog
are stored in memory.
Tlog ³ Ttarget
| Tlog - Ttarget | < | Ttarget - Tprev |
where,
Tlog Data stored in @TIME. Actual measurement point.
Ttarget Target value of @TIME. The values can plot data on the logarithmic
X-axis in the same interval completely.
Tprev Tlog - sampling interval. Actual measurement point.

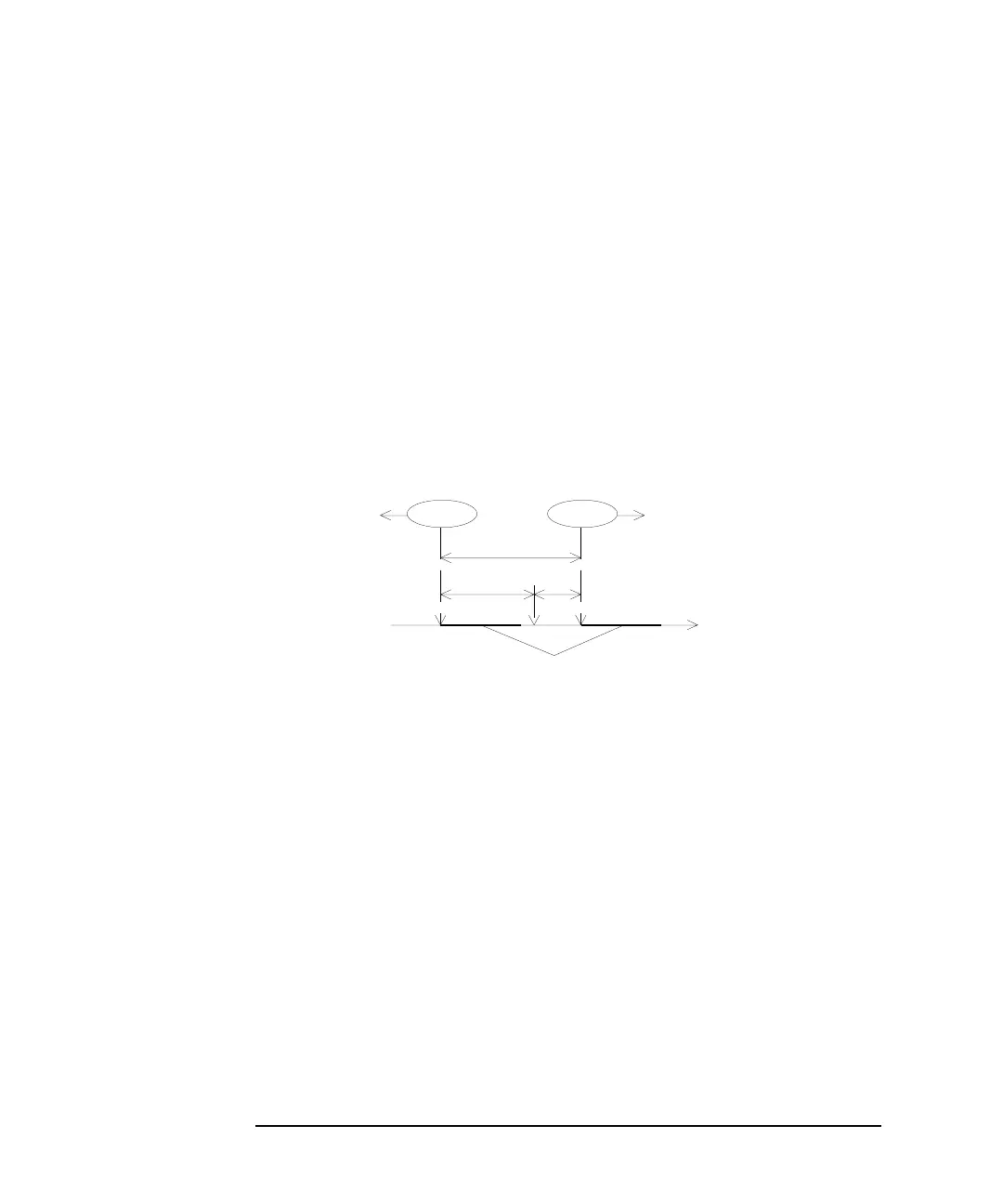

A= | Ttarget - Tprev |
B=|Tlog - Ttarget |
TIME
Tprev Tlog
Ttarget
Ttarget < Tlog
A > B
Sampling
Interval
Discard
Stored in @TIME
Measurement
BA
To Next Page
