Agilent Technologies 4263B User Manual

4263B

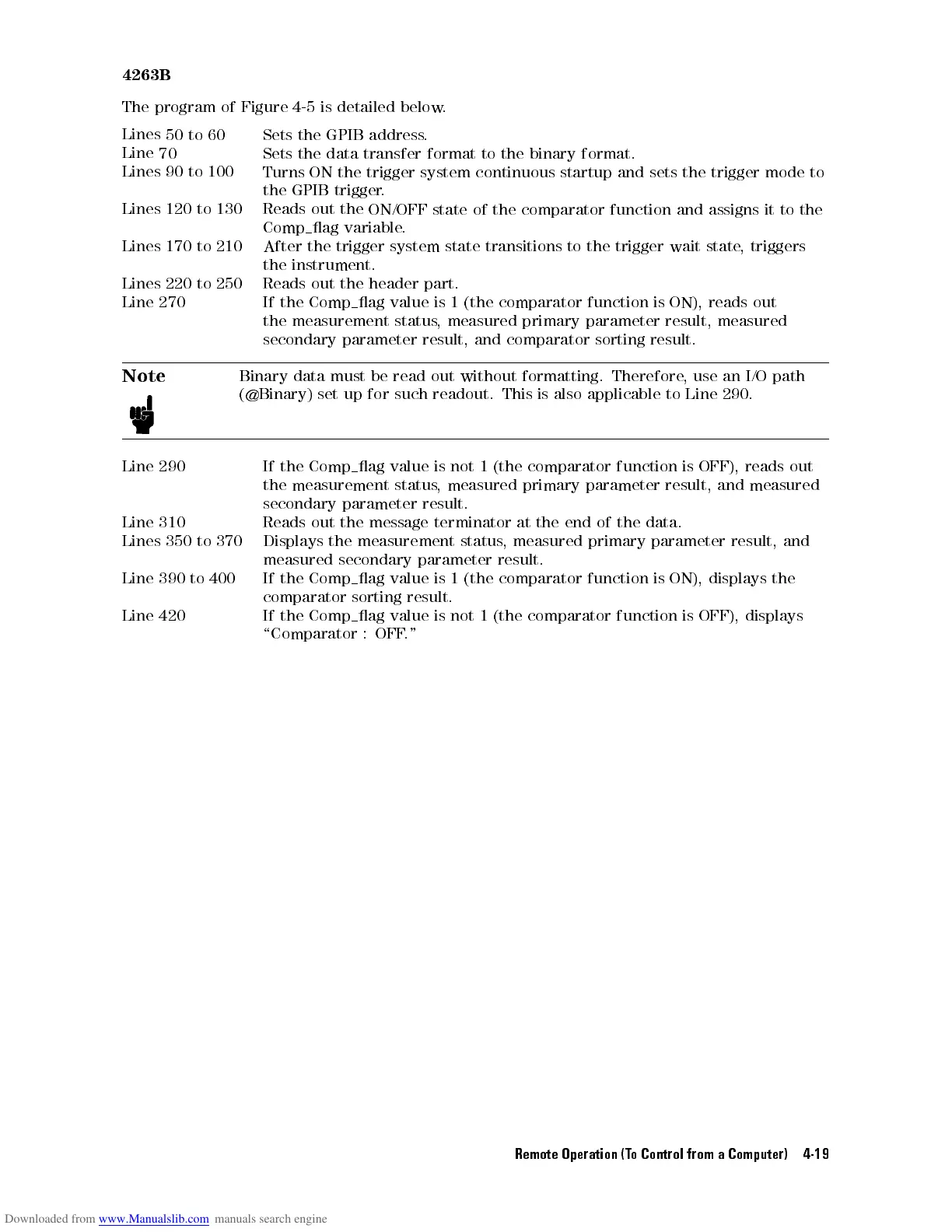

The
program of
Figure 4-5
is
detailed
below
.
Lines
50 to
60
Sets
the
GPIB
address
.
Line
70 Sets
the
data
transfer
format
to
the
binary
format.
Lines
90 to
100
Turns
ON
the
trigger
system
continuous
startup
and
sets
the
trigger mode
to
the
GPIB trigger
.
Lines
120 to
130
Reads
out
the
ON/OFF
state
of
the
comparator
function
and
assigns it
to the
Comp ag
variable
.
Lines
170
to
210
After
the
trigger
system
state
transitions
to
the
trigger
wait
state,
triggers
the
instrument.
Lines
220
to
250
Reads
out
the
header
part.
Line
270
If
the
Comp
ag
value
is
1
(the
comparator
function
is
ON),
reads
out
the
measurement
status
,
measured
primary
parameter
result,
measured
secondary
parameter
result,
and
comparator
sorting
result.
Note
Binary
data
must
be
read out
without formatting.
Therefore,
use
an
I/O
path
(@Binary) set
up for
such readout.
This
is
also
applicable
to
Line
290.
Line
290
If
the
Comp
ag
value
is
not
1
(the
comparator
function
is
OFF),
reads
out
the
measurement status
,
measured
primary
parameter
result,
and
measured
secondary
parameter result.
Line
310
Reads
out
the
message
terminator
at
the
end
of
the
data.
Lines
350
to
370
Displays
the
measurement
status
,
measured
primary
parameter
result,
and
measured
secondary
parameter
result.
Line
390
to
400
If
the
Comp
ag
value
is
1
(the
comparator
function
is
ON),
displays
the
comparator
sorting
result.
Line
420
If
the
Comp
ag
value
is
not
1
(the
comparator
function
is
OFF),
displays
\Comparator
:
OFF
."
Remote Operation (To Control from a Computer) 4-19
