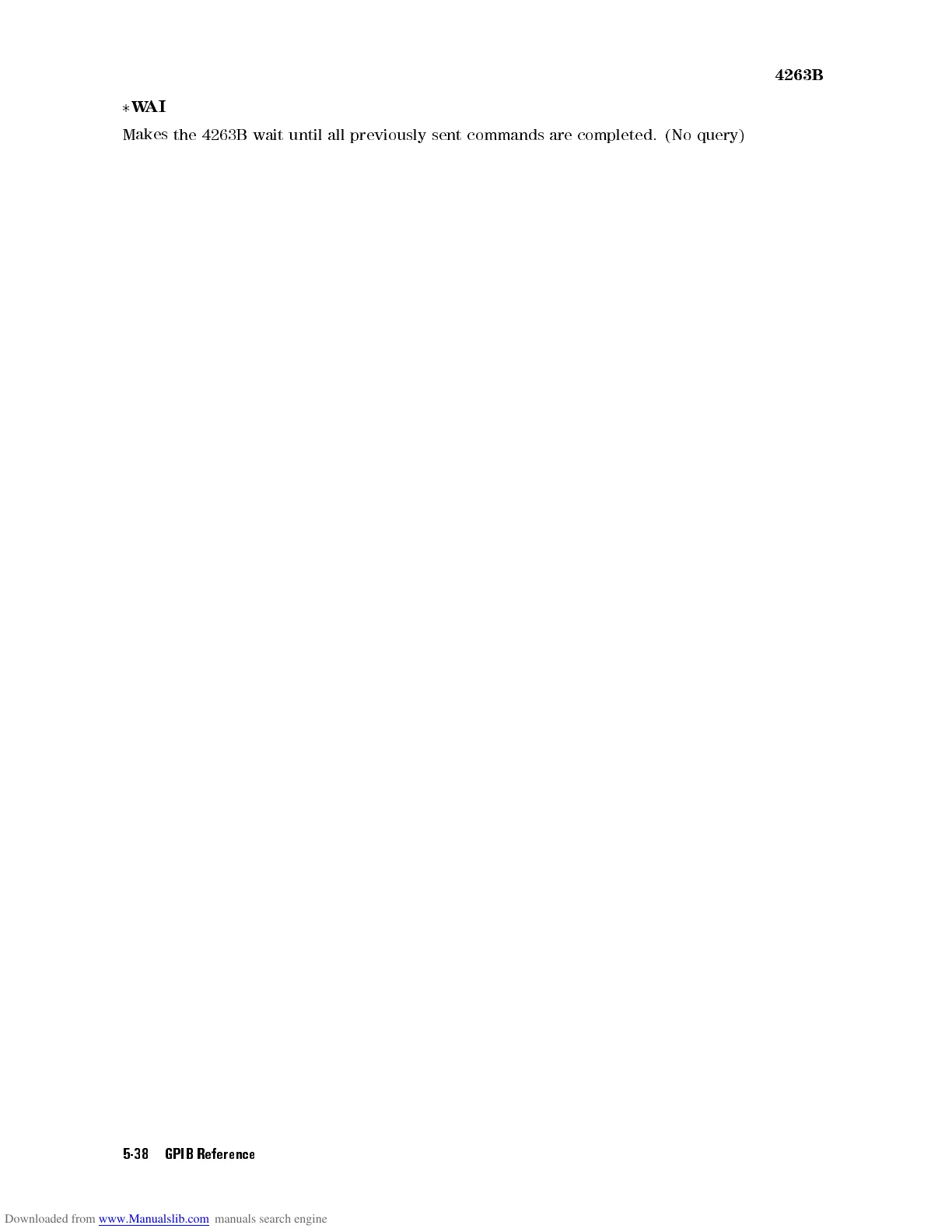

4263B

WAI

Makes

the 4263B

wait

until

all

previously

sent

commands

are

completed.

(No

query)

5-38 GPIB Reference
