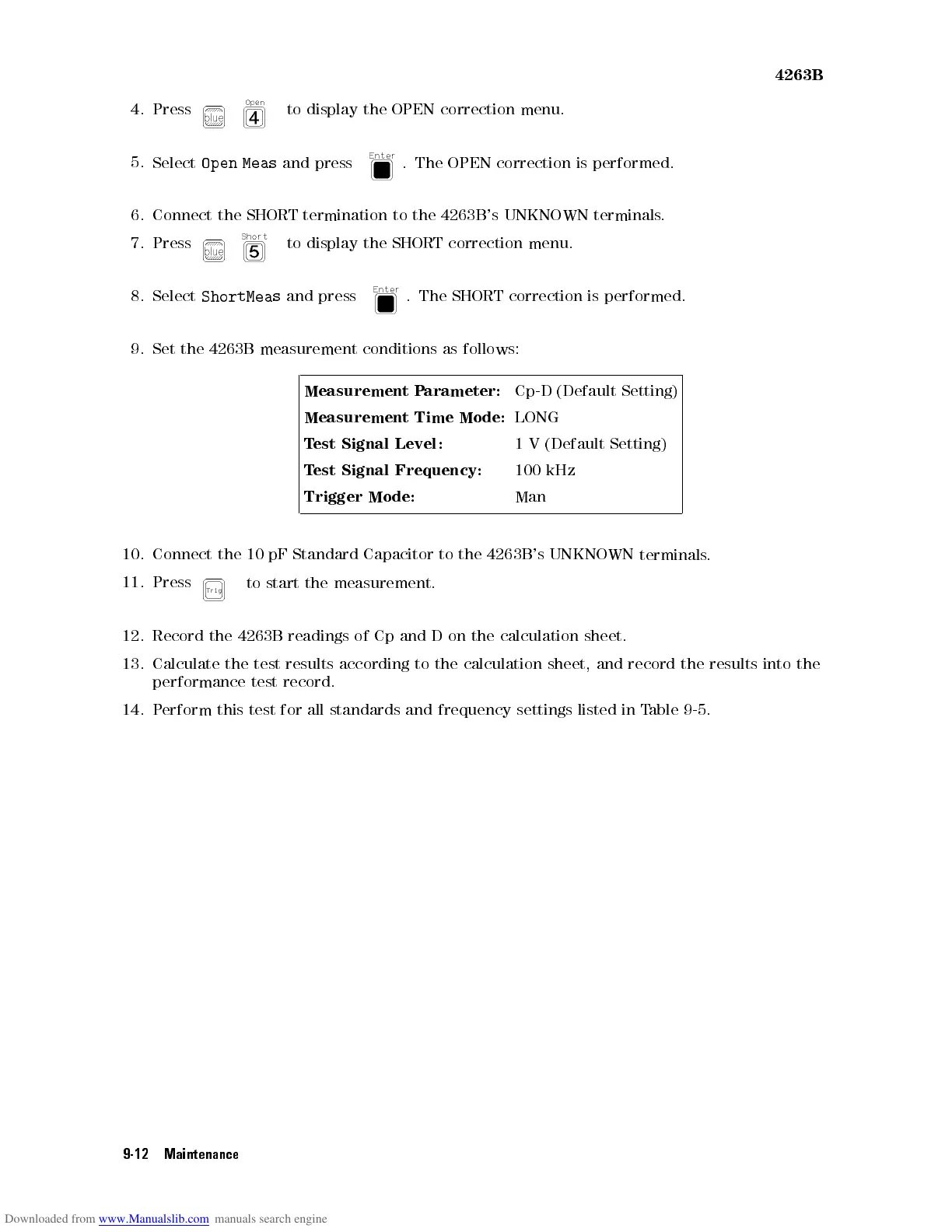

4. Press to display
the OPEN
correction menu.
5.
Select Open
Meas
and
press
.
The OPEN
correction
is
performed.
6.
Connect
the
SHORT
termination
to
the
4263B's
UNKNOWN terminals
.
7.
Press to
display
the
SHORT
correction
menu.
8. Select
ShortMeas and
press
. The
SHORT correction
is performed.
9.
Set
the
4263B
measurement
conditions
as
follows:
Measurement
P
arameter:
Cp-D
(Default
Setting)
Measurement
Time
Mode:
LONG
T
est
Signal
Level:
1
V
(Default
Setting)
Test
Signal Frequency:
100 kHz
Trigger
Mode:
Man
10.
Connect
the
10
pF
Standard
Capacitor
to
the
4263B
's UNKNOWN
terminals.
11.
Press
to
start
the
measurement.
12. Record
the
4263B
readings
of
Cp
and
D
on
the
calculation
sheet.
13. Calculate
the test
results
according
to
the
calculation
sheet,
and
record
the
results
into
the
performance
test
record.
14.
P
erform
this
test
for
all
standards
and
frequency
settings
listed
in
T
able
9-5
.
9-12 Maintenance
