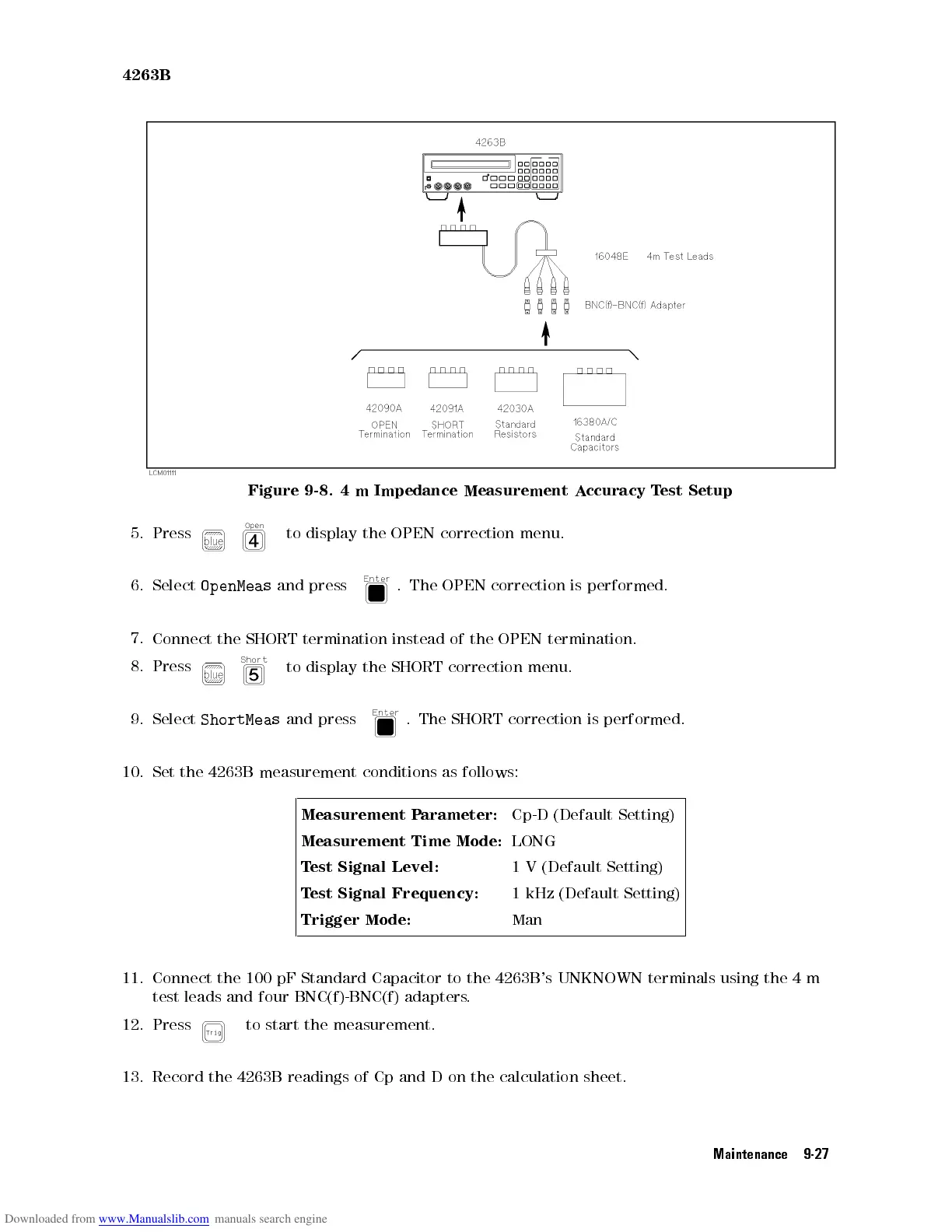

Figure
9-8.
4
m
Impedance
Measurement
A
ccuracy
T
est
Setup
5.
Press
to
display
the
OPEN
correction
menu.
6.
Select OpenMeas
and
press
.
The OPEN
correction
is
performed.
7.
Connect
the
SHORT
termination
instead
of
the
OPEN
termination.
8.
Press
to
display
the
SHORT
correction
menu.
9.
Select
ShortMeas
and
press
.
The
SHORT
correction
is
performed.
10.
Set
the
4263B measurement
conditions as
follows:
Measurement
P
arameter:
Cp-D
(Default
Setting)
Measurement
Time
Mode:
LONG
Test Signal Level:
1 V (Default Setting)
Test
Signal Frequency:
1 kHz (Default Setting)
Trigger Mode: Man
11. Connect the 100 pF Standard Capacitor to the 4263B's UNKNOWN terminals using the 4 m
test leads and four BNC(f)-BNC(f) adapters.
12. Press
to start the measurement.
13. Record the 4263B readings of Cp and D on the calculation sheet.
Maintenance 9-27
