4263B

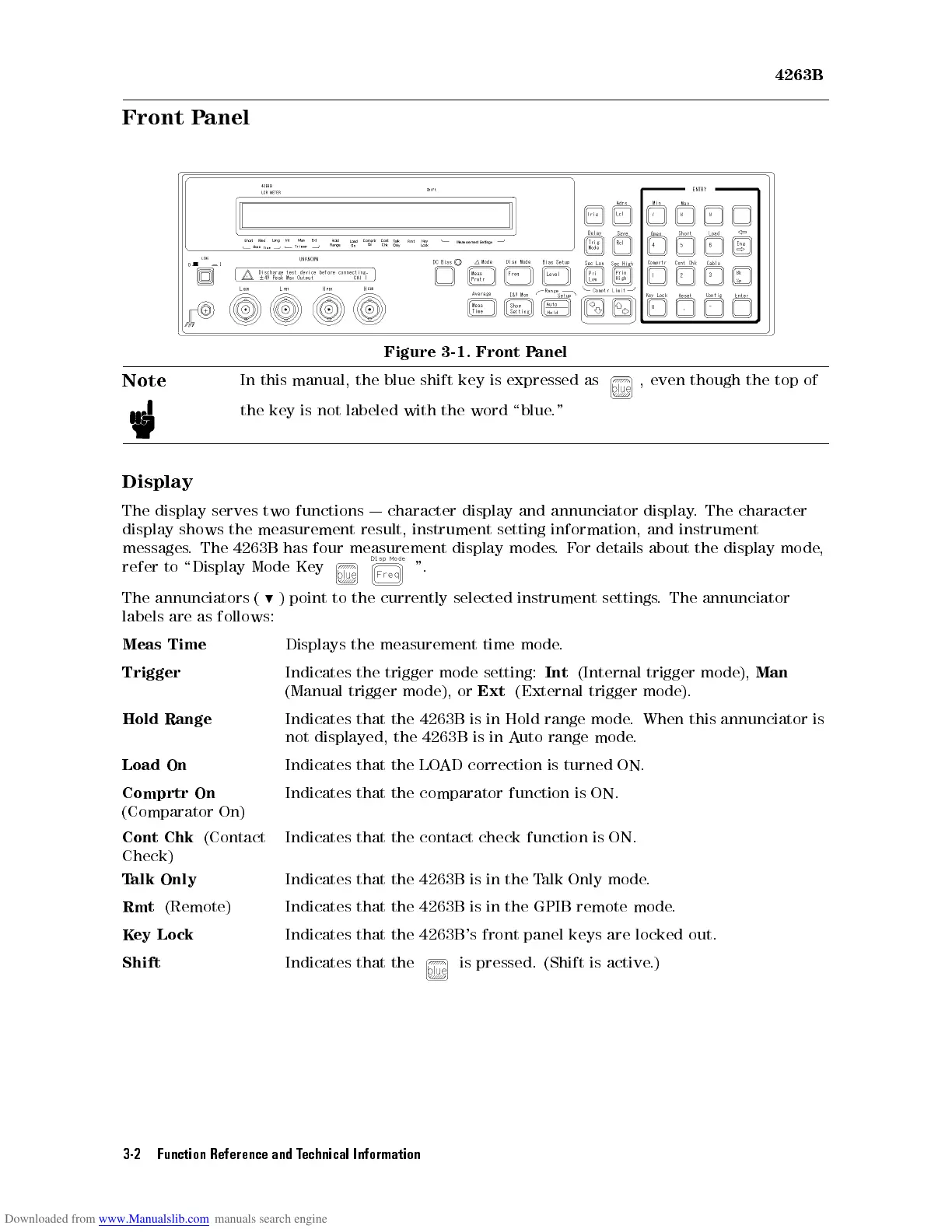

Front P
anel
Figure 3-1.
Front P
anel
Note
In
this
manual, the
blue shift
key is
expressed
as
,
even
though the
top of
the
key is
not labeled
with
the
word
\blue
."
Display
The
display serves
two functions
|
character
display
and
annunciator
display
.
The
character
display
shows the
measurement
result,
instrument
setting
information,
and
instrument
messages
.
The
4263B
has
four
measurement
display
modes
.
F
or
details
about
the
display
mode,
refer
to
\Display
Mode
Key
".
The
annunciators
(
9
)
point
to
the
currently
selected
instrument
settings
.
The
annunciator
labels
are
as
follows:
Meas
Time
Displays
the
measurement
time
mode
.
Trigger
Indicates
the
trigger
mode
setting:
Int
(Internal
trigger
mode), Man
(Manual
trigger
mode),
or
Ext
(External
trigger
mode).
Hold
Range
Indicates
that
the
4263B
is
in Hold
range mode
.When
this annunciator
is
not
displayed, the
4263B is
in A
uto
range
mode
.
Load
On Indicates
that the
LOAD
correction
is
turned
ON.
Comprtr
On
(Comparator
On)
Indicates
that the
comparator function
is ON.
Cont
Chk
(Contact
Check)
Indicates
that
the
contact
check
function is
ON.
Talk Only
Indicates that the 4263B is in the T
alk Only mode
.
Rmt (Remote) Indicates that the 4263B is in the GPIB remote mode
.
Key Lock
Indicates that the 4263B 's front panel keys are locked out.
Shift Indicates that the
is pressed. (Shift is active
.)
3-2 Function Reference and Technical Information
