Installation
1
Installation an
d First Startu
p
25
5

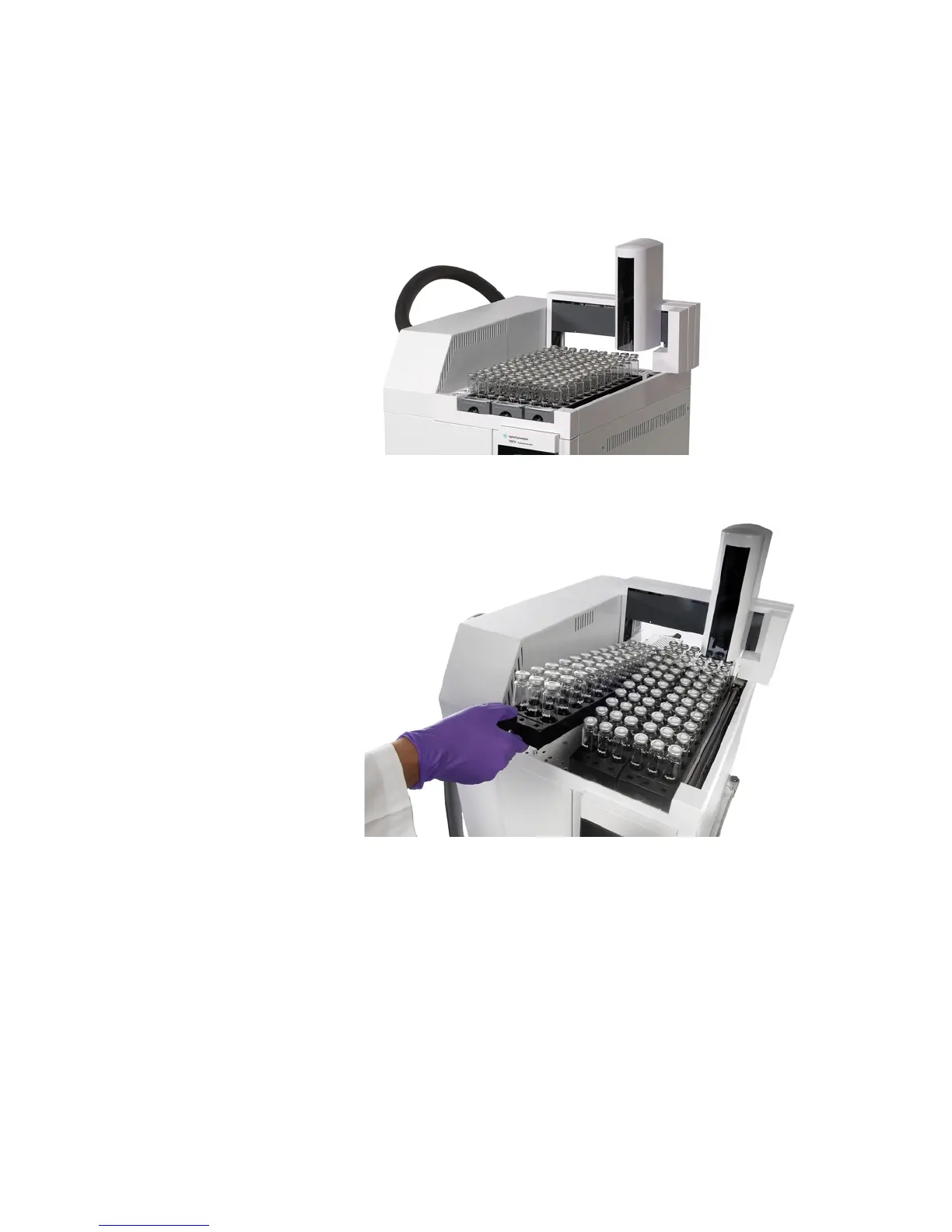

If needed, gently slide the gantr
y all the way to the back
of the tray.
6
Install t
he 3 vial rack
s into t
he tray.
24
26
Table of Contents
Default Chapter
3
Table of Contents
3
Before You Begin
6
Tools Required for Installation
6
Personnel Needed for Installation
6
Parts Supplied with the Instrument
7
Verify Site Preparation
8
Prepare the GC and Data System
8
Determine How You will Connect the Headspace Sampler to the GC
9
Install the GC Consumables Needed for HS Checkout
13
Inspecting the Headspace Sampler
14
Place the Headspace Sampler on the Bench
15
Install the Configuration Plug
17
Verify the Available Power Configuration
17
Install the Configuration Plug
18
Install the Vial Tray (111 Vial Model Only)
21
Connect Cabling
26
Cabling Diagrams for Agilent Gcs
27
Other Systems
28
Connect Gas Supplies
30
Connect the Vial Pressurization Gas
31
Connect the Carrier Gas (Using GC Inlet Carrier Control)
32
Connect the Transfer Line to the GC
35
Install the Transfer Line to the Headspace
36
Attach the Transfer Line to a GC Inlet
45
Install the Transfer Line Support Bracket
47
Turn on the Headspace Sampler
49
Set the IP Address
50
To Set the LAN Address at the Keyboard
50
To Use a DHCP Server
50
Configure the Headspace Sampler
51
2 First Startup
53
Tools and Materials Required
54
Load the Checkout Method in the HS
55
Make the First Connection
57
Set the Checkout Method Parameters
58
If Using an Agilent Data System
58
Checkout Method GC Parameters
58
Prepare the Checkout Sample
61
Run the Checkout Sample
62
Compare Results
64
Prepare for Your Method (Optional)
67
A Making Swagelok Connections
70
Making Swagelok Connections
70
Using a Swagelok Tee
73
