Getting Started
Setting Up a Burst Signal
Setting Up a Burst Signal
Task
Set up a burst signal with a burst repetition of 2
µ
s. Each burst consists of
two double-pulses at a period of 500 ns. The pulse width is 100 ns, the
delay between the two pulses of a double-pulse is 200 ns. The levels are
2 Vpp amplitude and 0 V offset.
Instructions
To set the
operating mode and trigger mode
as required:
1
Reset all parameters and modes by pressing SHIFT + STORE + 0.
2
Press the MODE/TRG softkey to enter the Mode/Trigger screen.
The internal PLL is used to trigger the startable internal oscillator.
The PLL defines the burst repetition, the oscillator generates the
pulse period. This requires the following settings:
3
Move to CONTINUOUS and turn the knob to select T
RIGGERED
.
4
Move to PULSES and select B
URST
.
5
Move down and select D
OUBLE
(D
OUBLE
-P
ULSES AT
O
UT
1).
6
Move left and select a burst length of 2.
7
Move down and select T
RG
’
D BY
: PLL and set the period to 2.000
µ
s
(burst repetition)
.

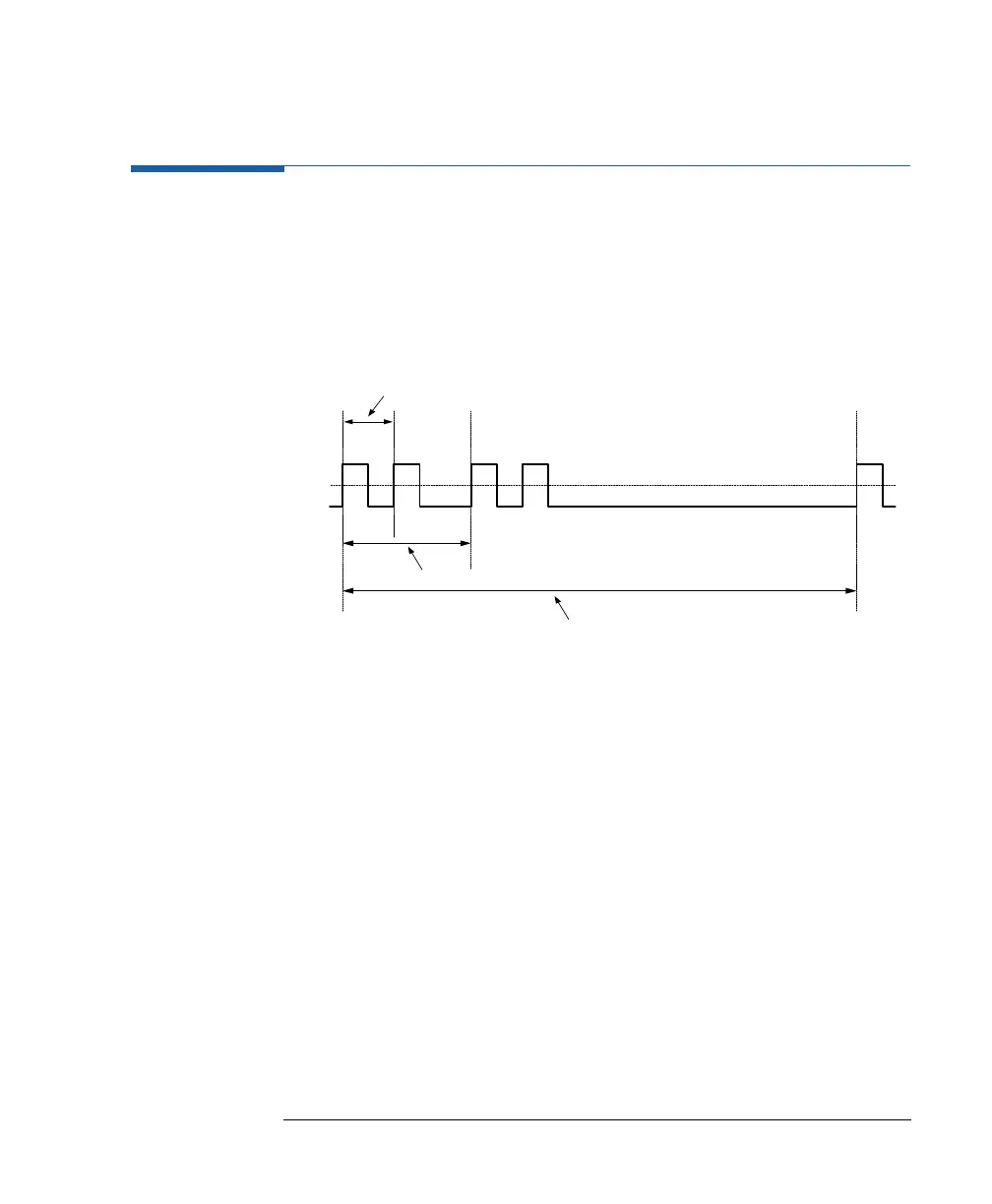

Double Pulse Delay = 200 ns
Burst Repetition = 2 µs
Pulse Period = 500 ns
1 V
0 V
1 V
