Using the Agilent 81101A
The Output Screen
Level Parameters
You can use the right part of the Output screen to view and control the
pulse level parameters and to enable or disable the outputs.
The individual level parameters are described in more detail in the
following. All parameters can be entered in different formats.

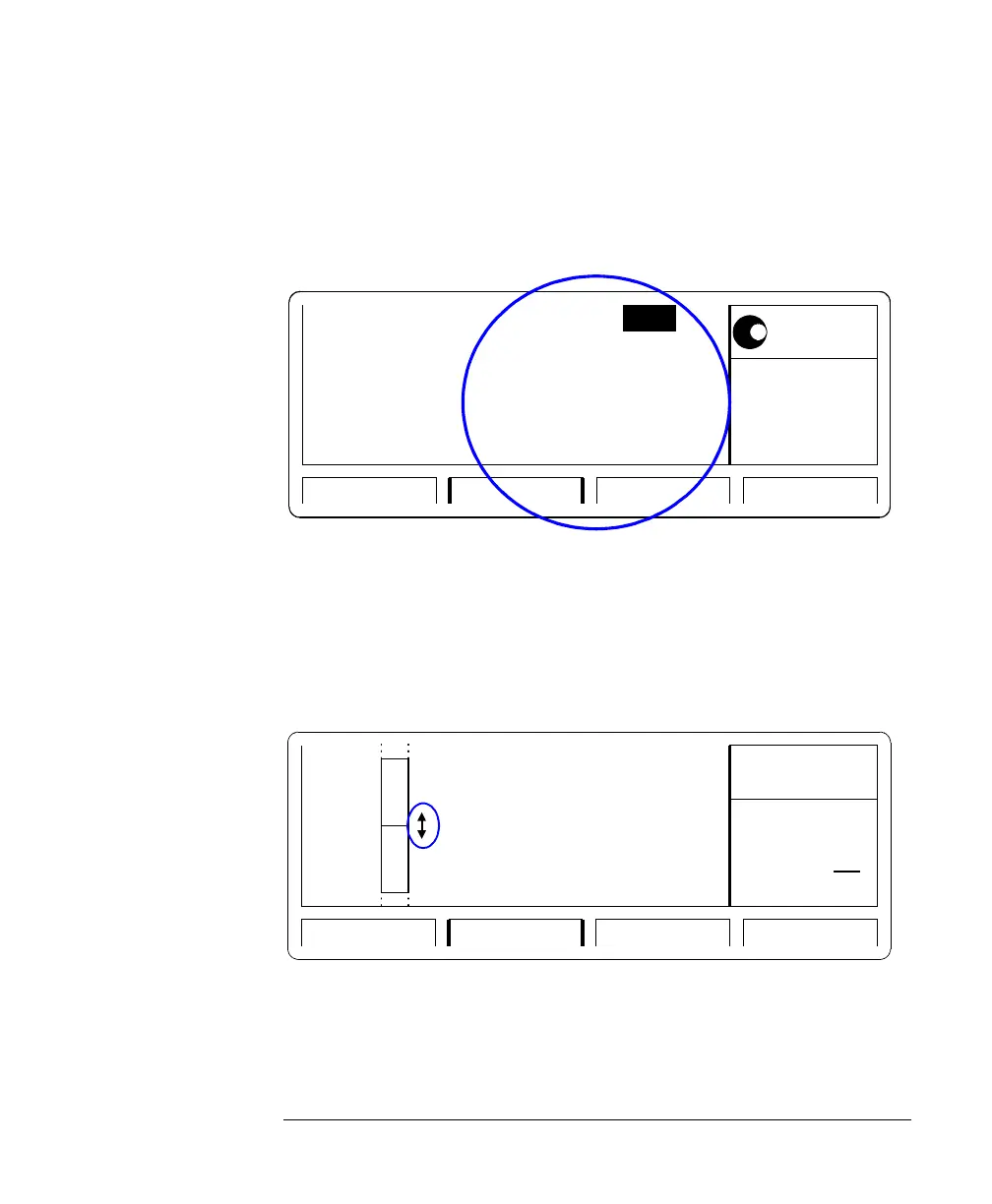

When you press SHIFT + MORE (GRAPH) while one of the level parameters is
selected, you will see a graphical representation of the level parameters.
The currently selected parameter is displayed in the Modify/Enter area
and is indicated in the graphical display.
When output limits are on, the limits are indicated on the Output screen
in graphics mode (see The Limits Screen on page 64).
