Agilent Technologies 81101A User Manual

47
Using the Agilent 81101A
The Mode/Trigger Screen
Continuous Burst Mode

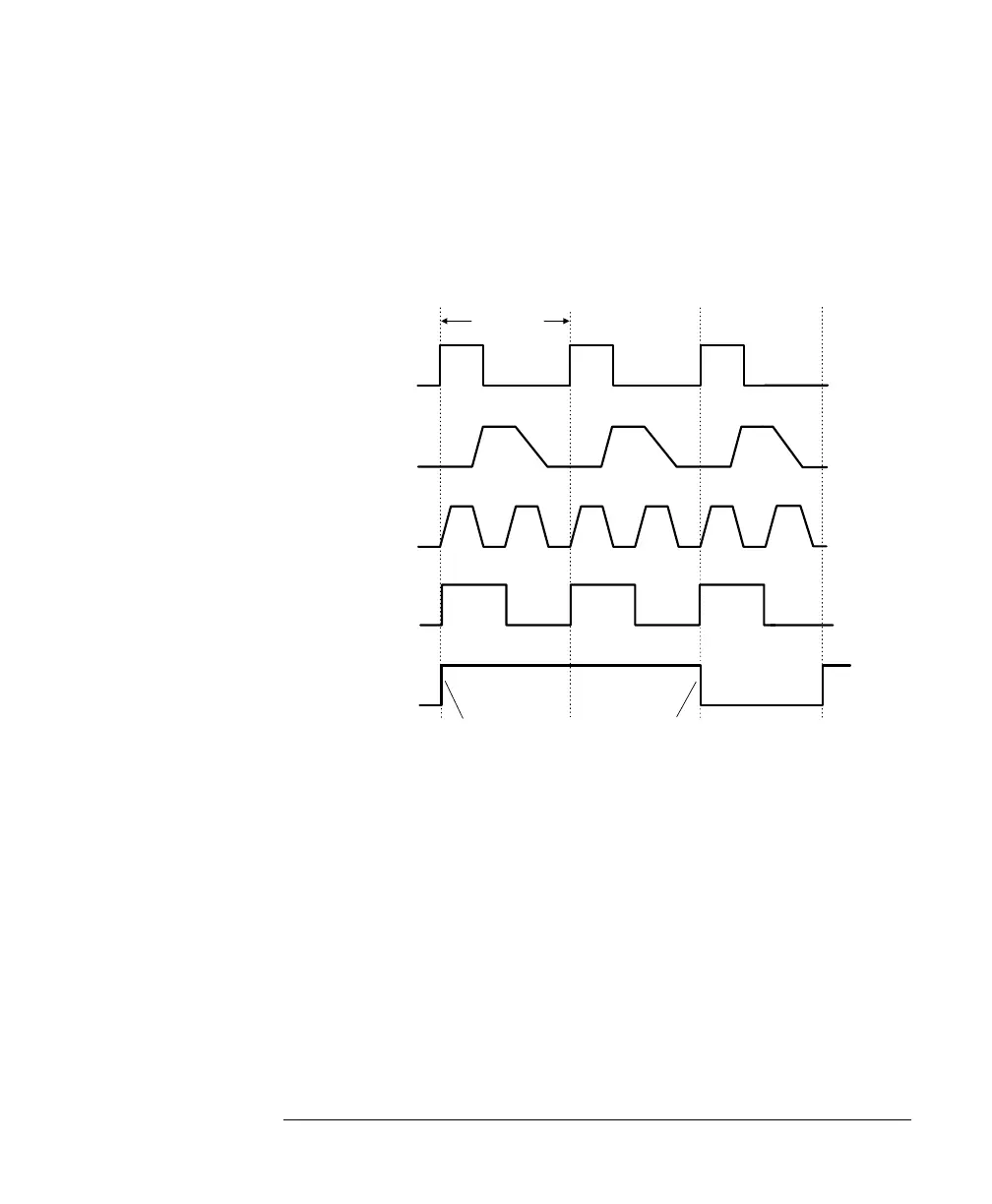

The following figure shows typical timings for trigger mode
CONTINUOUS and pulse mode BURST.
Characteristics

A burst of pulse periods is repeated continuously.

You can select the number of pulse periods per burst in the range of
265536.

You can select single pulses or double pulses per pulse period.

For the pulse period source you can select from

internal Osc (VFO)

internal PLL (higher accuracy)

external CLK-IN, synchronize to rising or falling edge.

TRIGGER OUT marks each pulse period.

STROBE OUT rises at the start of the first pulse period in a burst, and
falls at the start of the last pulse period.
Period
OUTPUT
OUTPUT
TRIGGER OUT
Period Source
int Osc, int PLL or Ext Clock
Single Pulse
Double Pulse
STROBE OUT
Burst of 3
1st period
last period
