Agilent Technologies 81101A User Manual

23
Introducing the Agilent 81101A Pulse Generator
Operating the Agilent 81101A
Adjusting Parameters
Adjusting parameters within a screen, requires two steps:

selecting the parameter

adjusting its value
Some parameters allow different formats of their values. For example,
the pulse width can be displayed and entered as an absolute value, as
duty cycle (percentage of the period), or as the delay of the trailing edge.
The following sections show the standard procedure for adjusting
parameters, and list some features useful for the advanced user.
Standard Procedure
To experience the standard procedure for adjusting parameters, consider
the following example where the duty cycle is set to 50%.
1
Press the OUTPUT softkey to access the Output screen.
2
Use the cursor keys to select the W
IDTH
parameter.

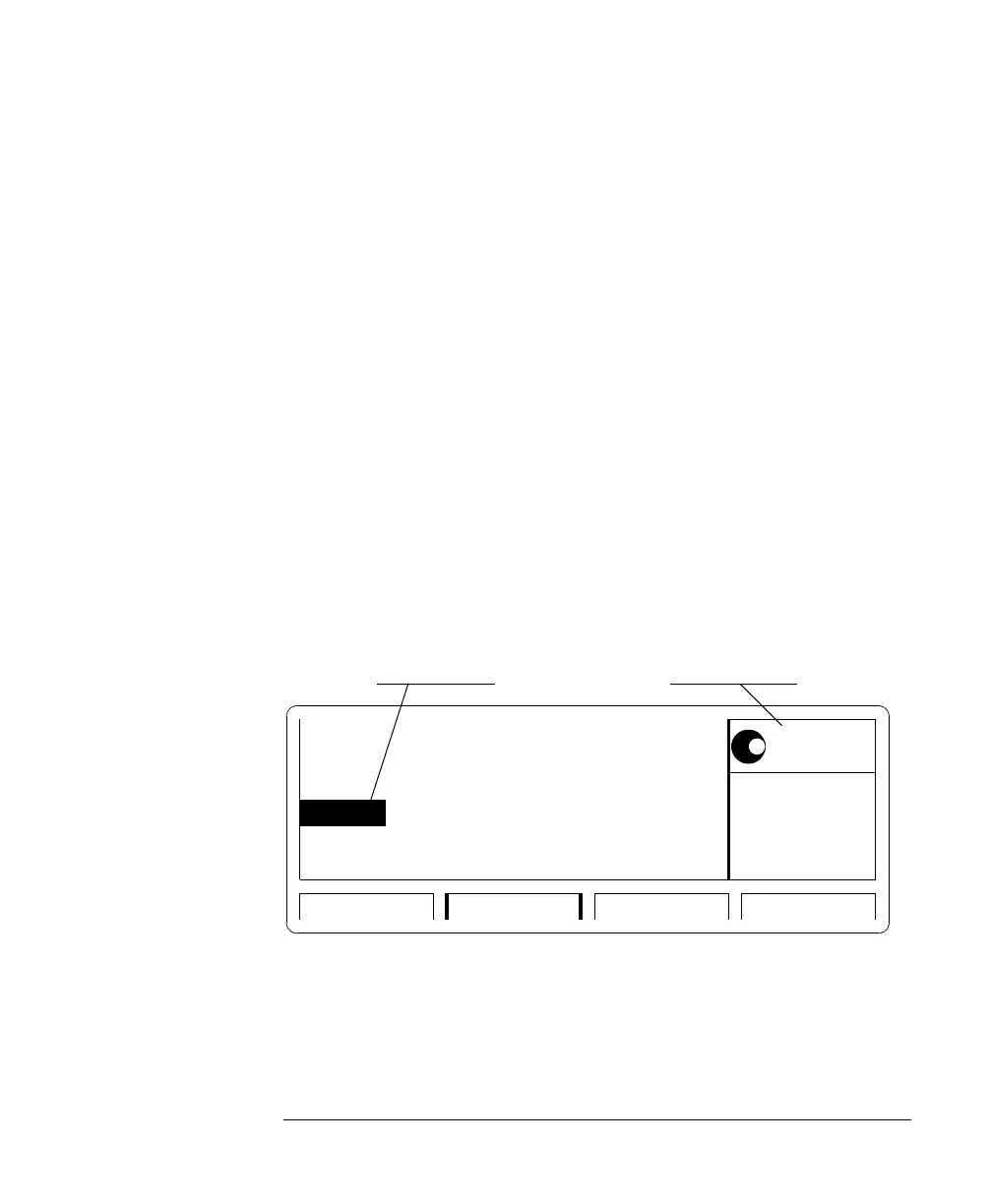

The available formats for the pulse width parameter are displayed in
the Modify/Enter area.
*Width
DutyCycle
TrailDel
Per 1.000 µ
µµ
µ s Normal OFF
OUTPUT TRG-LEVLIMITSMODE/TRG
Delay
1
0ps
LeadE
TraiE
100.0ns
5.00ns
=LeadE
Offset
Amplit
+0.0mV
1.00V
50 Ω
ΩΩ
Ω into 50.0 Ω
ΩΩ
Ω
MODIFY
Width
Selection Cursor Modify/Enter Area
