Using the Agilent 81101A
The Mode/Trigger Screen
Continuous Pulses Mode

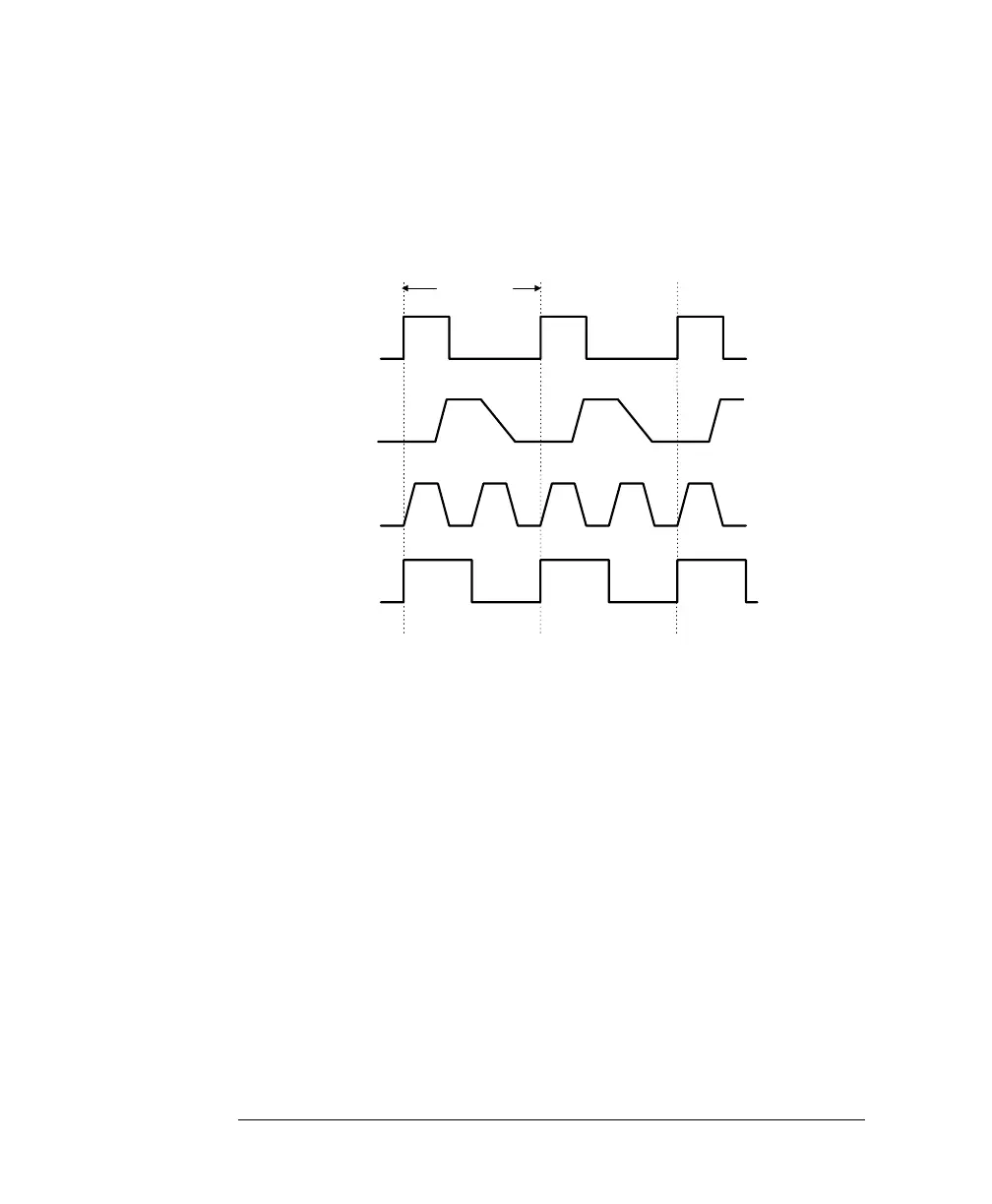

The following figure shows typical timings for trigger mode
CONTINUOUS and pulse mode PULSES.
Characteristics

Pulse periods are generated continuously.

You can select single pulses or double pulses per pulse period.

For the pulse period source you can select from

internal Osc (VFO)

internal PLL (higher accuracy)

external CLK-IN (external signal), synchronize to rising or falling
edge

TRIGGER OUT marks each pulse period.
NOTE
STROBE OUT is not used in continuous pulse mode.
Period
OUTPUT
OUTPUT
TRIGGER OUT
Period Source
int Osc, int PLL or Ext Clock
Single Pulse
Double Pulse
