Agilent Technologies 81101A User Manual

30
Getting Started

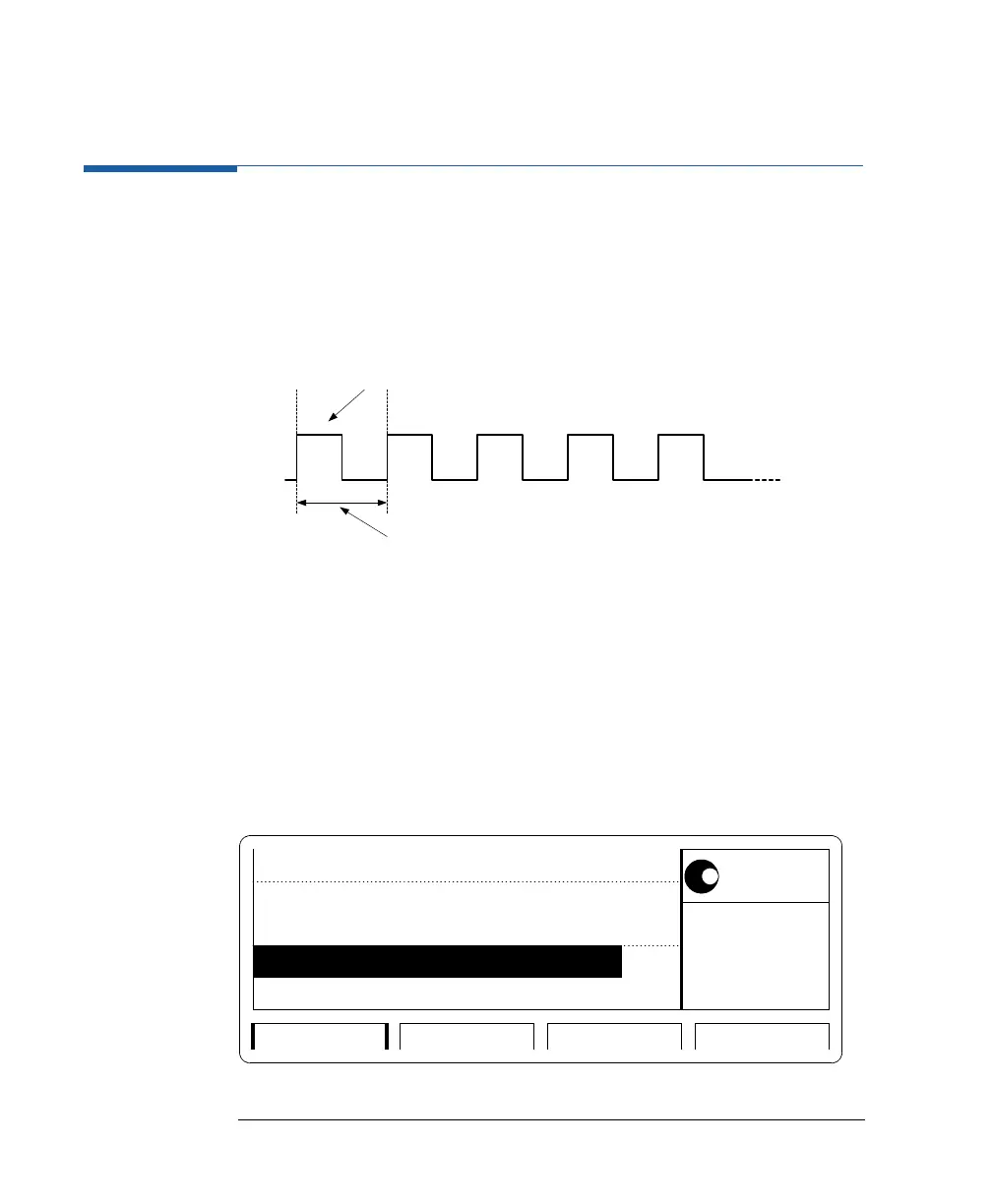

Setting Up a Clock Signal
Setting Up a Clock Signal
Task
Set up a continuous clock signal with 25 MHz frequency with PLL
accuracy, a duty cycle of 50 %, 6 ns transition times, a high level of 2.5 V
and low level of 0 V.
Instructions
To set the
operating mode and trigger mode
as required:
1
Reset all parameters and modes by pressing SHIFT + STORE (RECALL) + 0.
2
Press the MODE/TRG softkey to enter the Mode/Trigger screen.
Trigger mode CONTINUOUS and operating mode PULSES are
selected by default.
3
Move the entry focus down to P
ULSE
-P
ERIOD
and turn the knob to
select
INTERNAL
PLL.
Duty Cycle = 50 %
f = 25 MHz
2.5 V
0.0 V
intOsc
intPLL
*CLK-IN
OUTPUT TRG-LEVLIMITSMODE/TRG
CONTINUOUS PULSES
Single-Pulses at Out1
MODIFY
Pulse-Period: internal PLL
