Using the Agilent 81101A
The Mode/Trigger Screen
The Mode/Trigger Screen
This section describes the Mode/Trigger screen, starting with an
overview of the available parameter combinations, followed by detailed
descriptions of each combination.
Overview
To access the Mode/Trigger screen, press the MODE/TRG softkey.

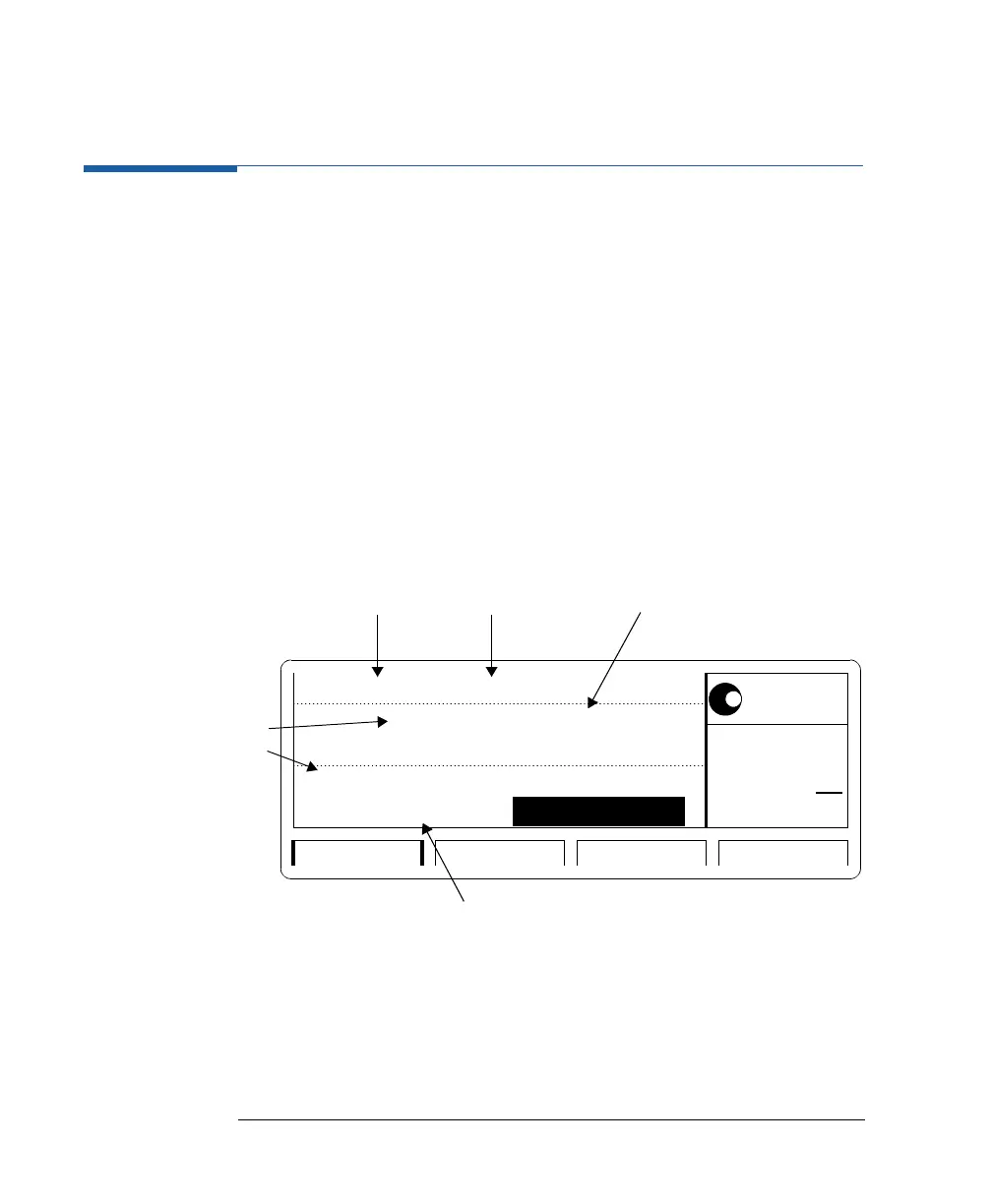

The following figure shows a typical Mode/Trigger screen, where the
individual parameters are indicated. The parameter combinations are
listed in the table on the next page.
In this screen, you can set up the signal to be triggered or continuous,
and to be a pulse stream or a burst (several pulses followed by a pause)
consisting of single or double pulses.
µ
µµ
µ
s
2.000
OUTPUT TRG-LEVLIMITSMODE/TRG
2-Double-Pulses at Out1
TRIGGERED BURSTS OF
Trg'd by: PLL ->
MODIFY
Per 2.000
µ
µµ
µ
s
Pulse-Period: internal Osc
➀
➁
➂
➃
➄
➅
