Using the Agilent 81101A
The Mode/Trigger Screen

TRIGGER OUT marks each pulse period.

STROBE OUT rises at the start of the first pulse period in a burst and
falls at the start of the last pulse period.
For the second example, either the internal PLL or an external CLK-IN
are used to source the periodboth cannot be triggered synchronously.
NOTE
You cannot use the PLL as both pulse period source and arming
(T
RG
'
DBY
) source at the same time.

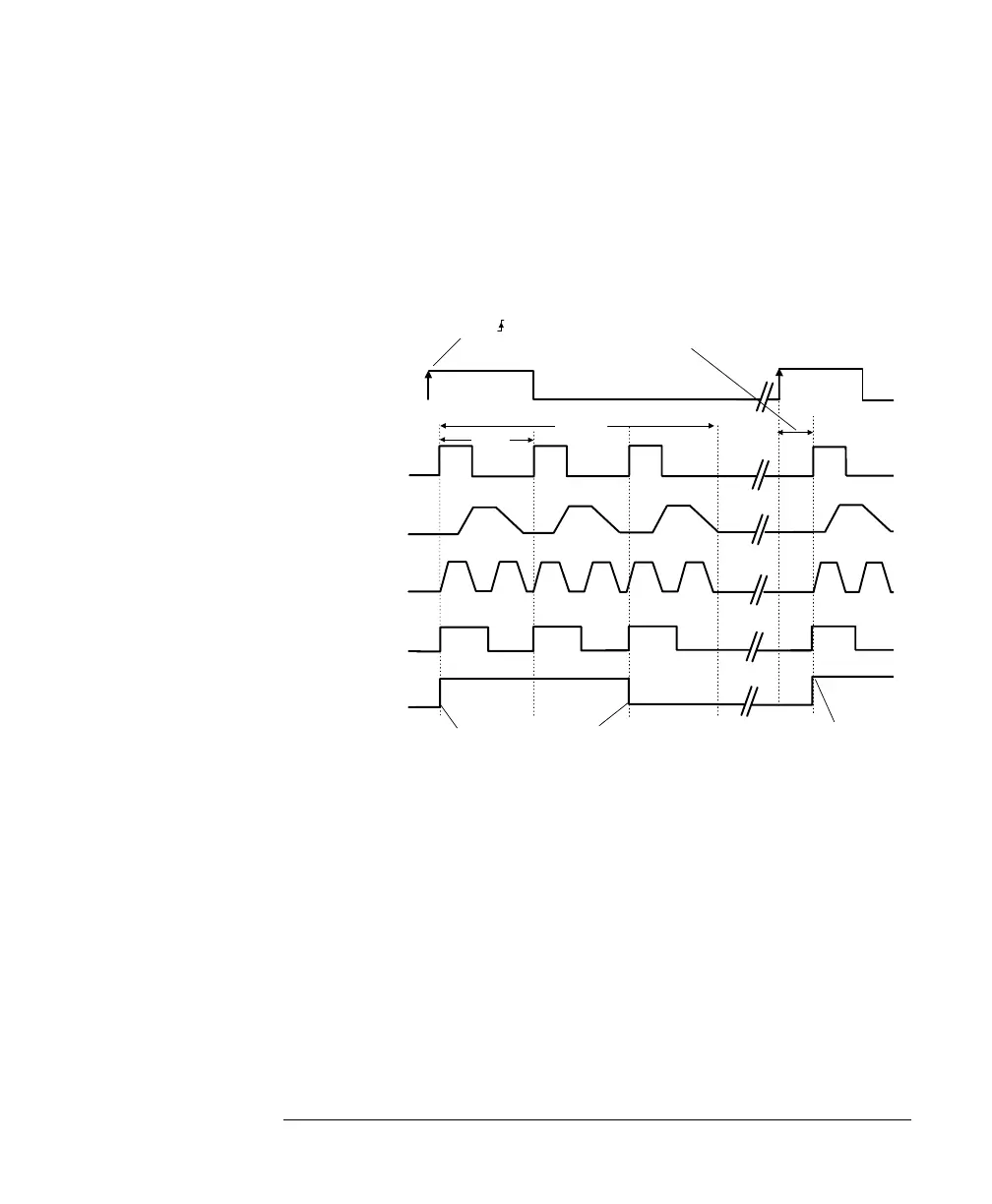

PERIOD SOURCE
OUTPUT
OUTPUT
TRIGGER OUT
internal PLL or CLK-IN.
Double Pulses
STROBE OUT
Single Pulses
ARMING SOURCE
1st period
last period
1st period
Trg'd by:
(Trg'd by:) EXT INPUT
or MAN Key
PLL/CLK-IN NOT synchronous to EXT INPUT
DELAY = n * Period, 1 < n
≤
2
Period
Burst of 3
