Using the Agilent 81101A
The Mode/Trigger Screen

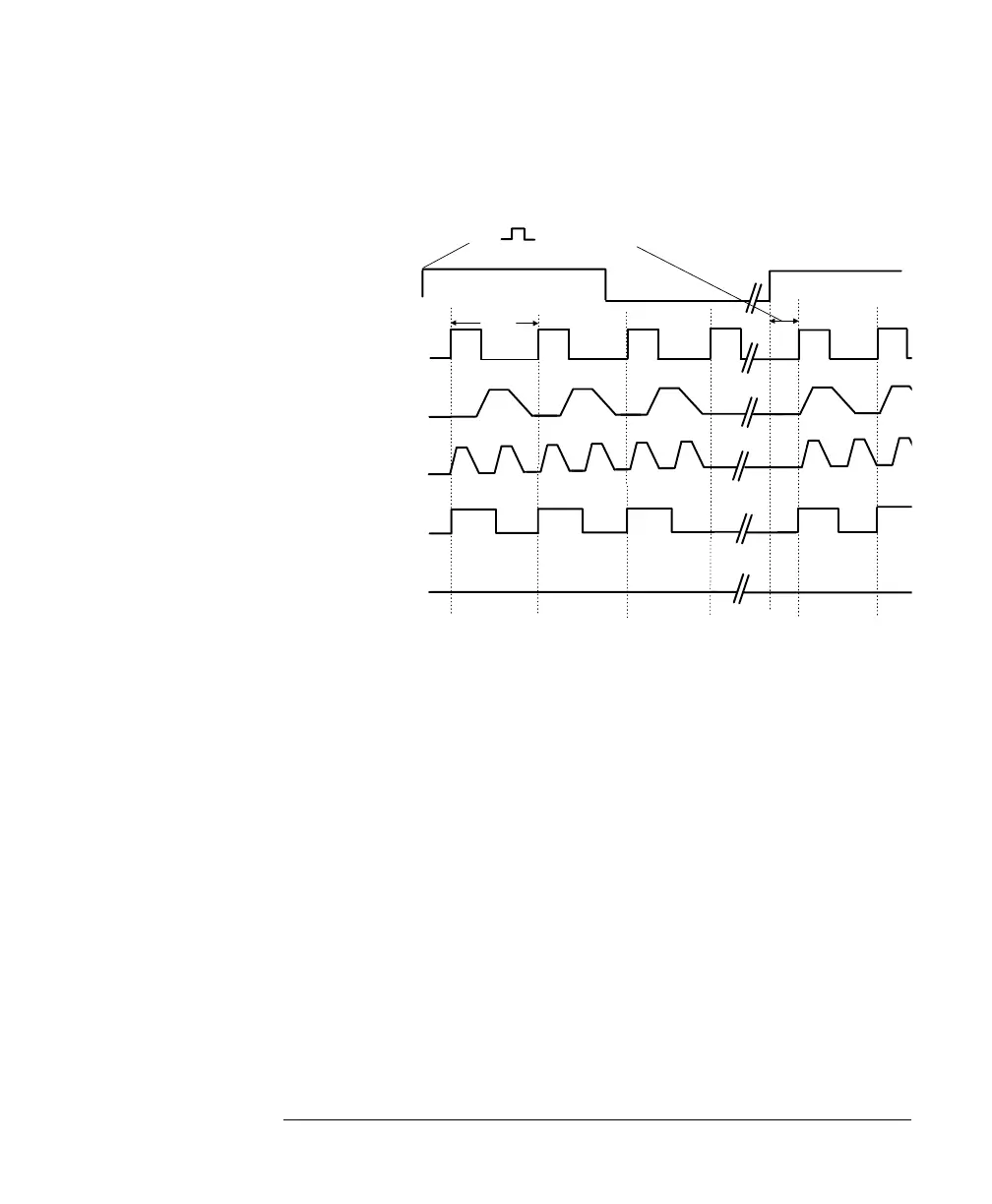

For the second example, either the internal PLL or an external CLK-IN
are used to source the periodboth cannot be triggered synchronously.
PERIOD SOURCE
ARMING SOURCE
OUTPUT
OUTPUT
TRIGGER OUT
internal PLL or CLK-IN
Double Pulses
STROBE OUT
Single Pulses
Gated by:
(Gated by:) EXT INPUT
or MAN Key
Period
PLL/CLK-IN NOT Synchronous to EXT INPUT
DELAY = n * Period, 1 < n
≤
2
