Chapter 3 181
Softkey Menus
Menu Trees

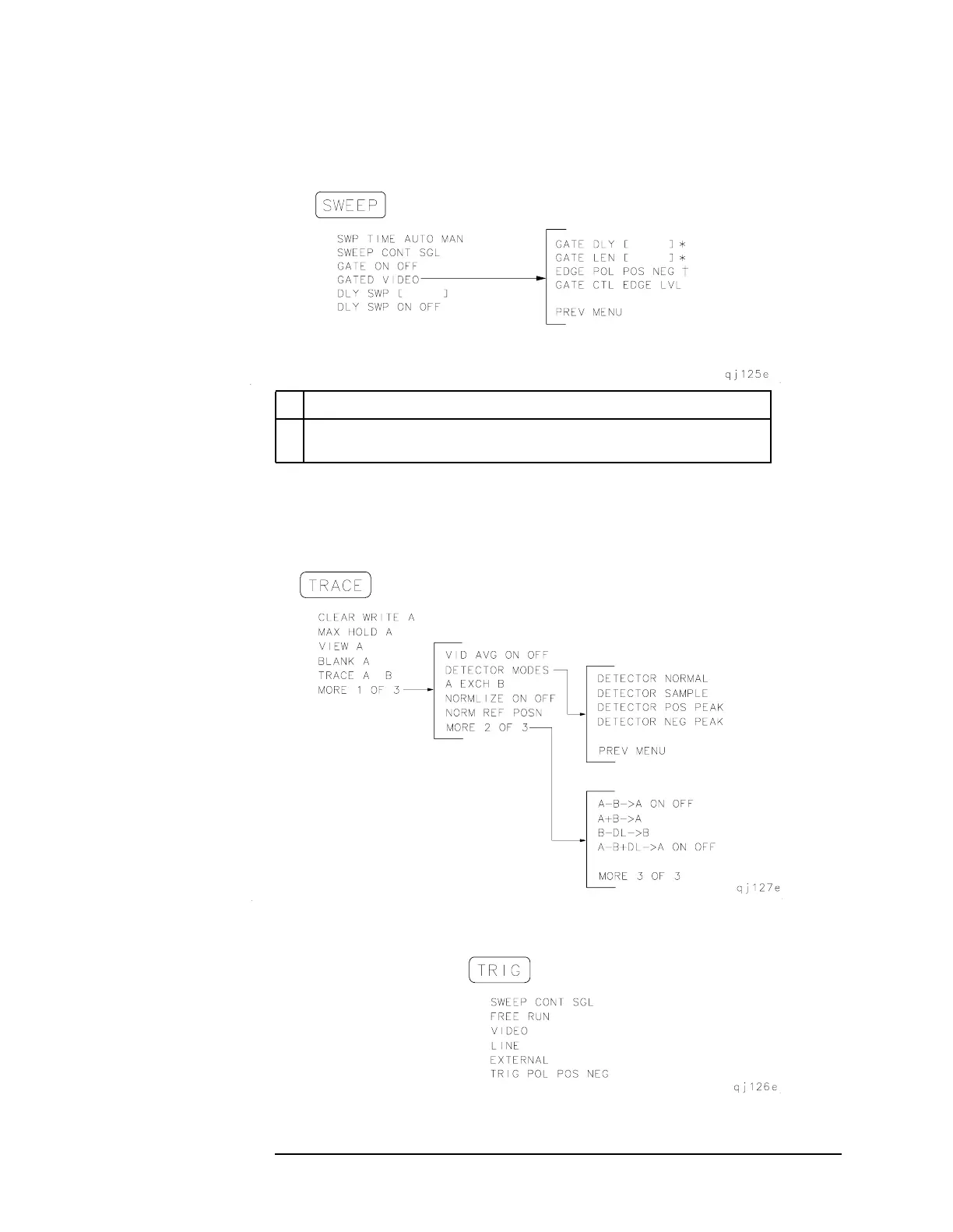

Figure 3-25 SWEEP Key Menu Tree
Figure 3-26 TRACE Key Menu Tree
Figure 3-27 TRIG Key Menu
* This softkey is blanked if GATE CTL EDGE LVL is set to level (LVL).
† This softkey becomes LVL POL POS NEG if GATE CTL EDGE LVL is set to
level (LVL).
