436
Chapter
7
Language Reference
CHANPWR Channel P
ower
CHANPWR Channel P
ower

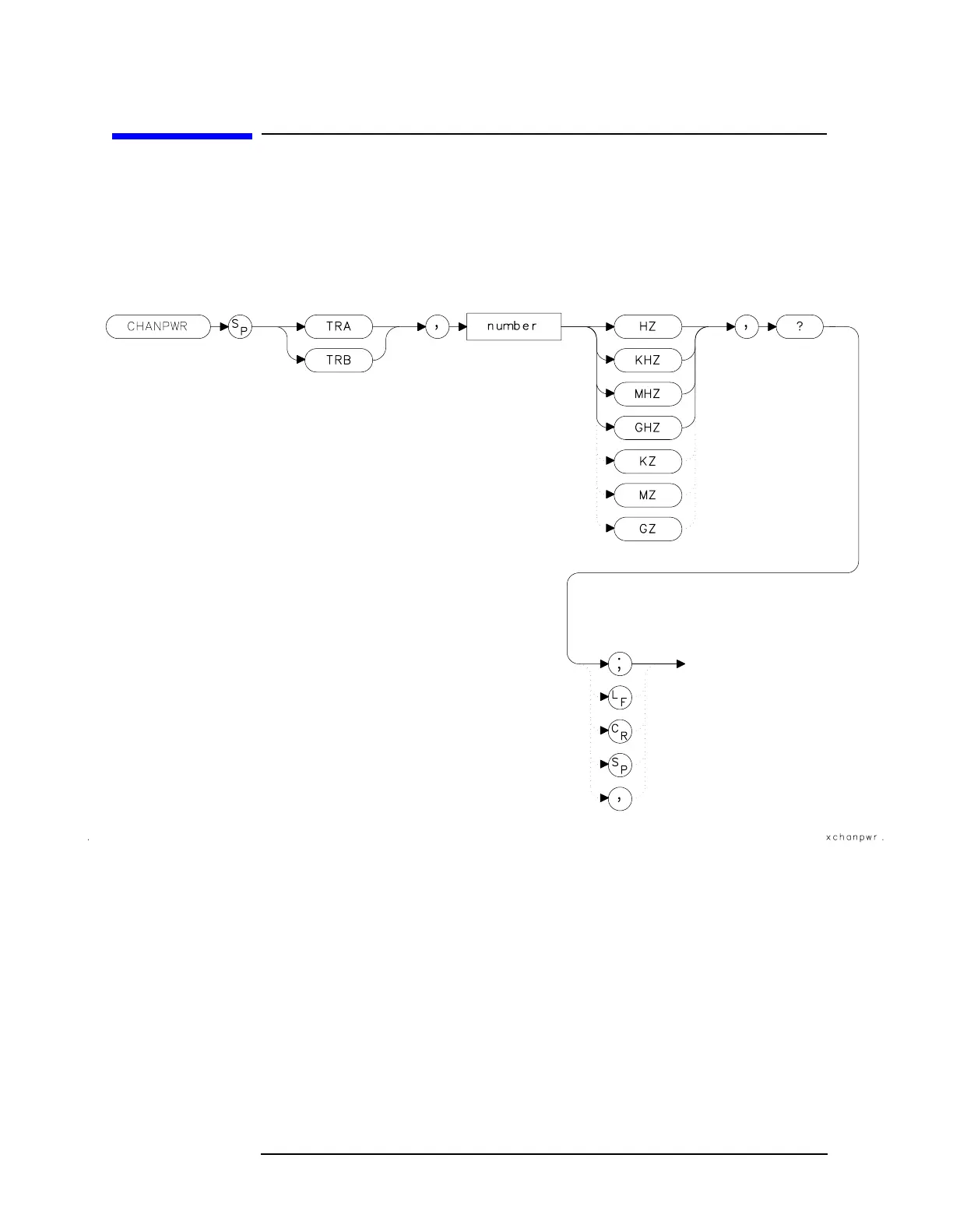

Syntax
Figure 7-74
CHANPWR Syntax
Description
The CHANPWR command measures the power within the channel
power bandwidth specified by the command.
