Chapter 7 617
Language Reference
ST Sweep Time
Parameters
number real from 50 ms to 100s with spans greater than 0 Hz
(50 ms to 2000s for Agilent 8562E/EC, Agilent
8564E/EC, Agilent 8565E/EC; and Agilent 8560E/EC,
Agilent 8561E/EC, and Agilent 8563E/EC with serial
number prefix ≥3424A).
real from 50 µs to 6000s when the span equals 0 Hz (50
µs to 100 s for firmware revision 920528).
UP or DN increments in a 1, 2, 5, 10 sequence.
Preset State
• AUTO
Query Response

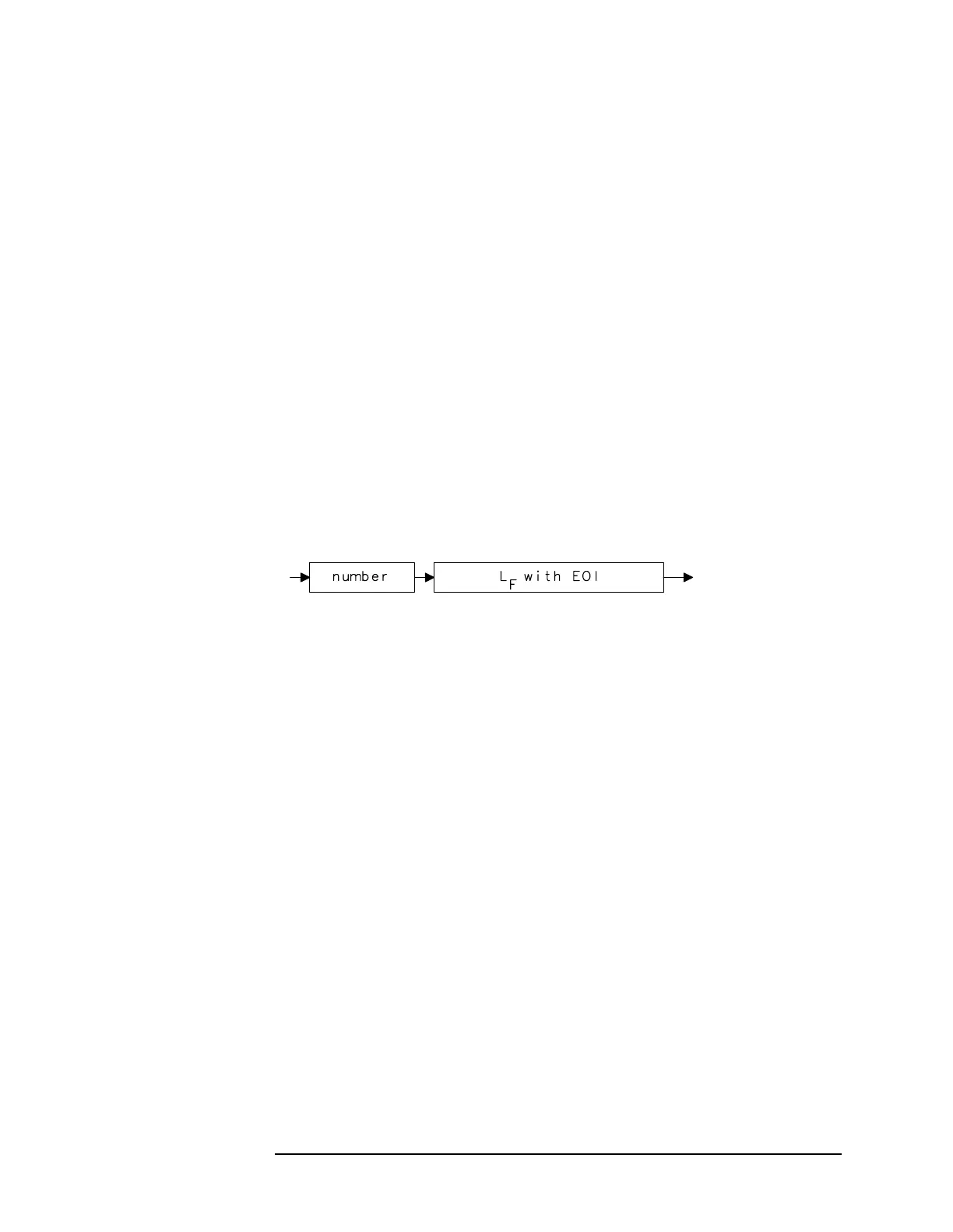

Figure 7-264 ST Query Response
Example
10 OUTPUT 718;"ST 500MS;"
20 OUTPUT 718;"ST DN;"
30 OUTPUT 718;"ST?;"
40 ENTER 718;St
50 PRINT St
60 END
