1-31
Installing the 86100C
To use the removable hard disk option
To exchange the removable hard disks
If you are removing the 86100C from a secure area, perform the procedure “To
declassify instrument memory” on page 1-28 before starting the following
steps.
1 Turn the 86100C on.
2 If the instrument has been returned from Agilent with a new mainframe
calibration, you must save a copy of the calibration file from the current hard
disk. Later in this procedure, you will install this file on the secure hard disk.
a Click Calibrate > All Calibrations. Click the Mainframe and Skew tab. Record
the calibration date for use later in this procedure. See Figure 1-25.
Calibration date: _______________________________

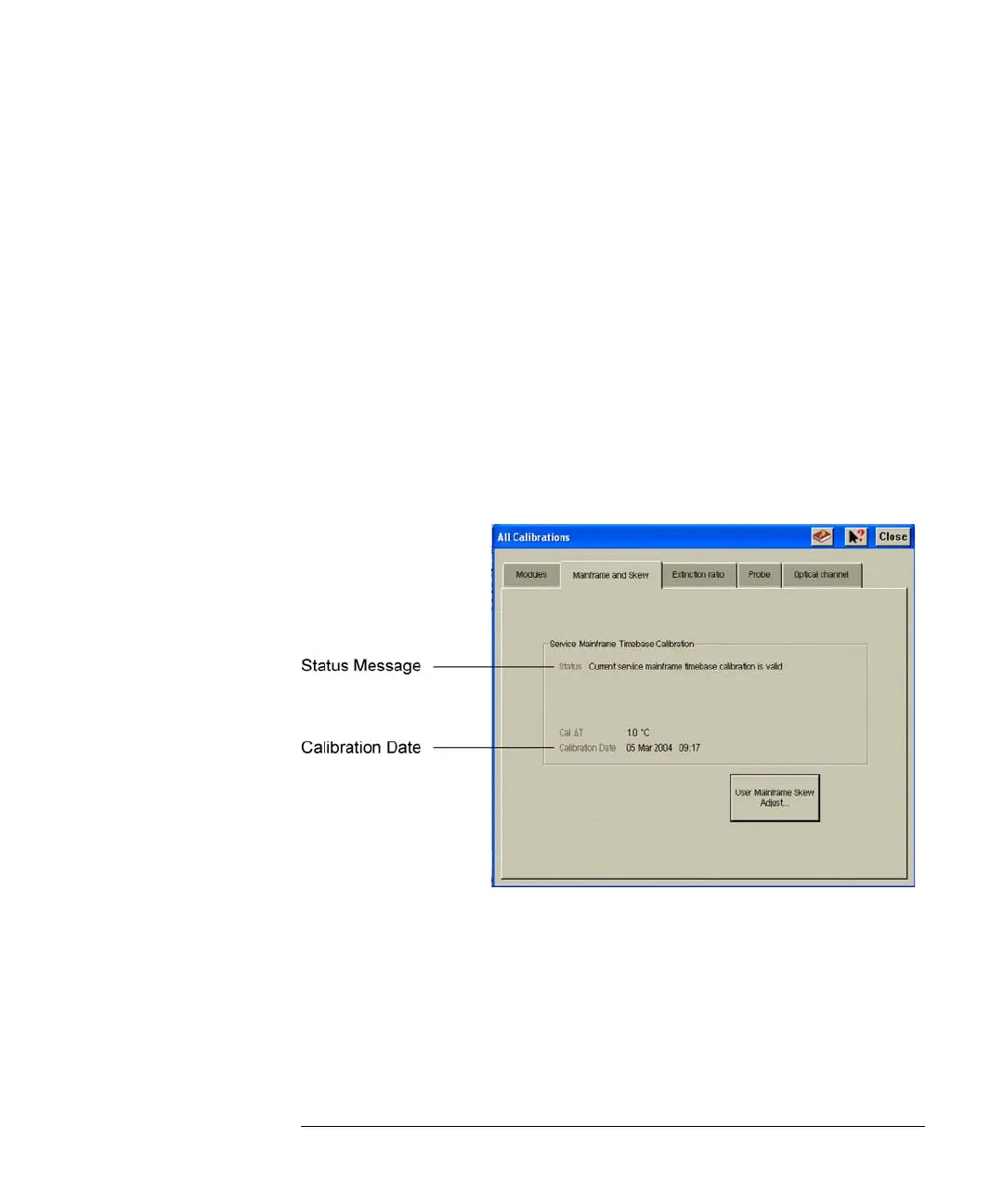

Figure 1-25. Mainframe timebase calibration status and date
b Close the All Calibrations dialog box.
c Click File > Exit to close the DCA application.
d Click Start > My Computer.
e Enter the path, c:\scope\cal, in the address line as shown in Figure 1-26
