1-32
Installing the 86100C
To use the removable hard disk option
on page 32. Then, press Enter to locate the file, framecal.dat.
NOTE The folder, c:\scope\cal, is hidden and will not be shown if you browse for
it.
f Copy the file, framecal.dat, to an external USB memory device.

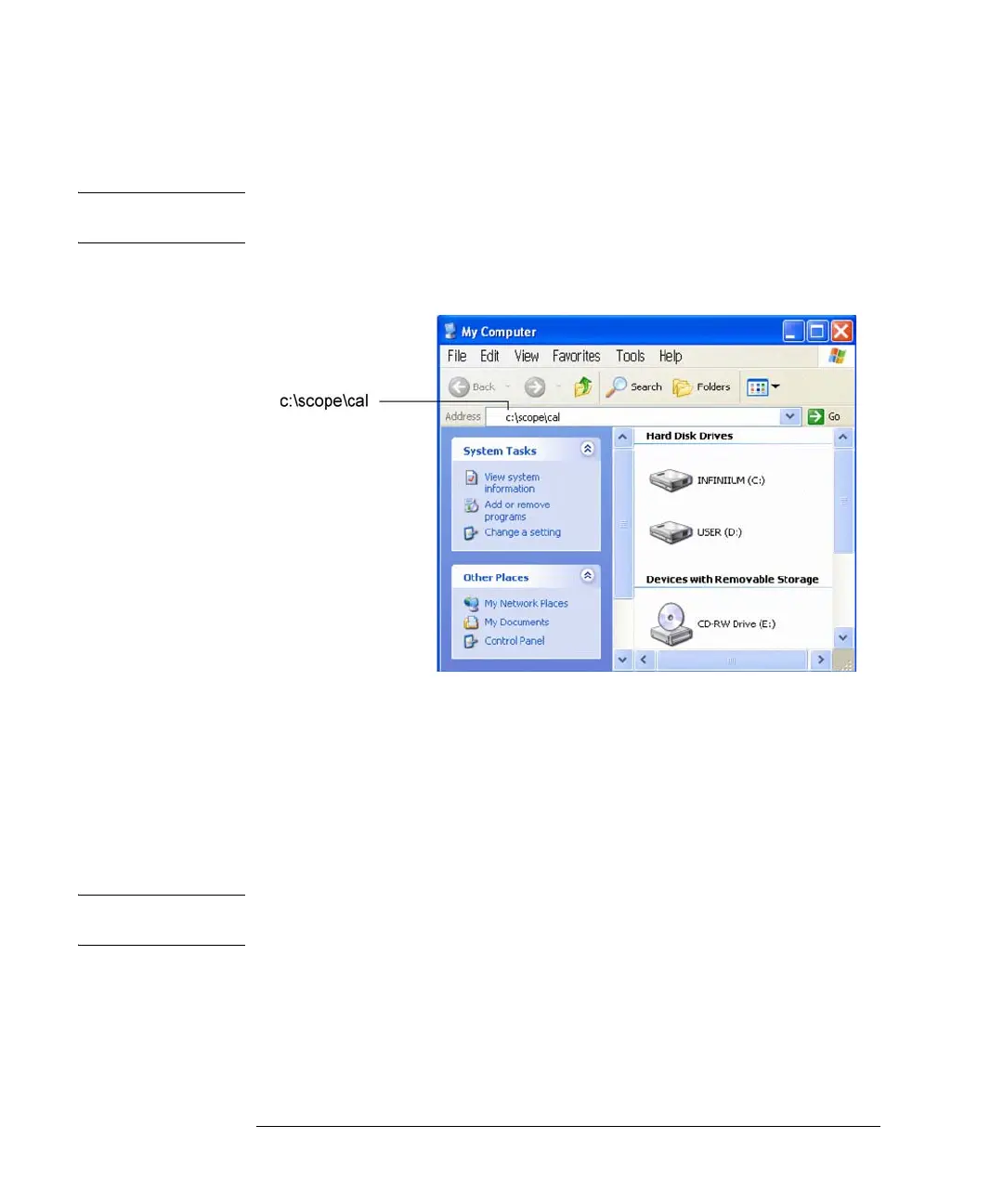

Figure 1-26. Locating the file framecal.dat
3 Turn off the 86100C.
4 Locate the hard disk lock, which is located at the upper-left corner of the
86100C's rear panel.
5 Insert one of the supplied keys into the hard disk lock, and turn the key counter
clockwise to unlock the hard disk.
NOTE Identical locks and keys are provided for all removable hard disks. The lock
mechanically secures the disk and is not intended for security purposes.
6 Press the button that is located beneath the lock, and pull out the hard disk.
7 Install the alternate hard disk. Make sure that the hard disk is oriented so that
the connector on the hard disk lines up with the connector in the mainframe.
8 Turn the key clockwise to lock the lock.
