3-3
Front/Rear Panel
Front Panel Features

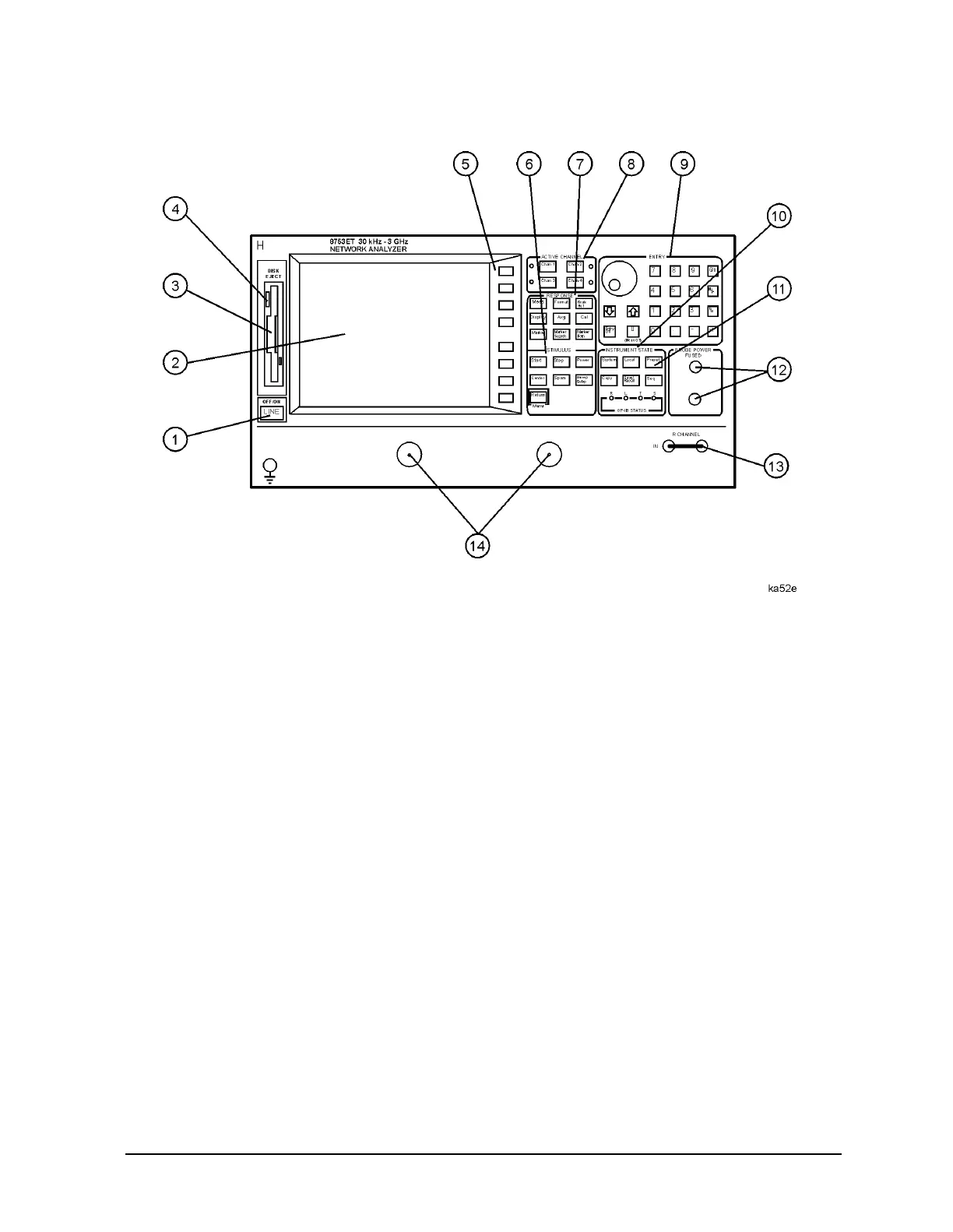

Figure 3-2 8753ET Front Panel
The location of the following front panel features and key function blocks is shown in
Figure 3-1 and Figure 3-2. These features are described in more detail later in this chapter,
and in Chapter 5 , “Hardkey/Softkey Reference,”.
1. LINE switch. This switch controls ac power to the analyzer. 1 is on, 0 is
off.
2. Display. This shows the measurement data traces, measurement
annotation, and softkey labels. The display is divided into specific
information areas, illustrated in Figure 3-3.
3. Disk drive. This 3.5 inch floppy-disk drive allows you to store and recall
instrument states and measurement results for later analysis.
4. Disk eject button.
5. Softkeys. These keys provide access to menus that are shown on the
display.
6. STIMULUS function block. The keys in this block allow you to control
the analyzer source's frequency, power, and other stimulus functions.
7. RESPONSE function block. The keys in this block allow you to control
the measurement and display functions of the active display channel.
8. ACTIVE CHANNEL keys. The analyzer has two independent primary
channels and two auxiliary channels. These keys allow you to select the
active channel. Any function you enter applies to the selected channel.
