Agilent Technologies 89410A Service Guide

2-19
Adjusting the Analyzer
To adjust anti-alias filter
3 Adjust L38.
a Attach a jumper to the pins shown in the following illustration.

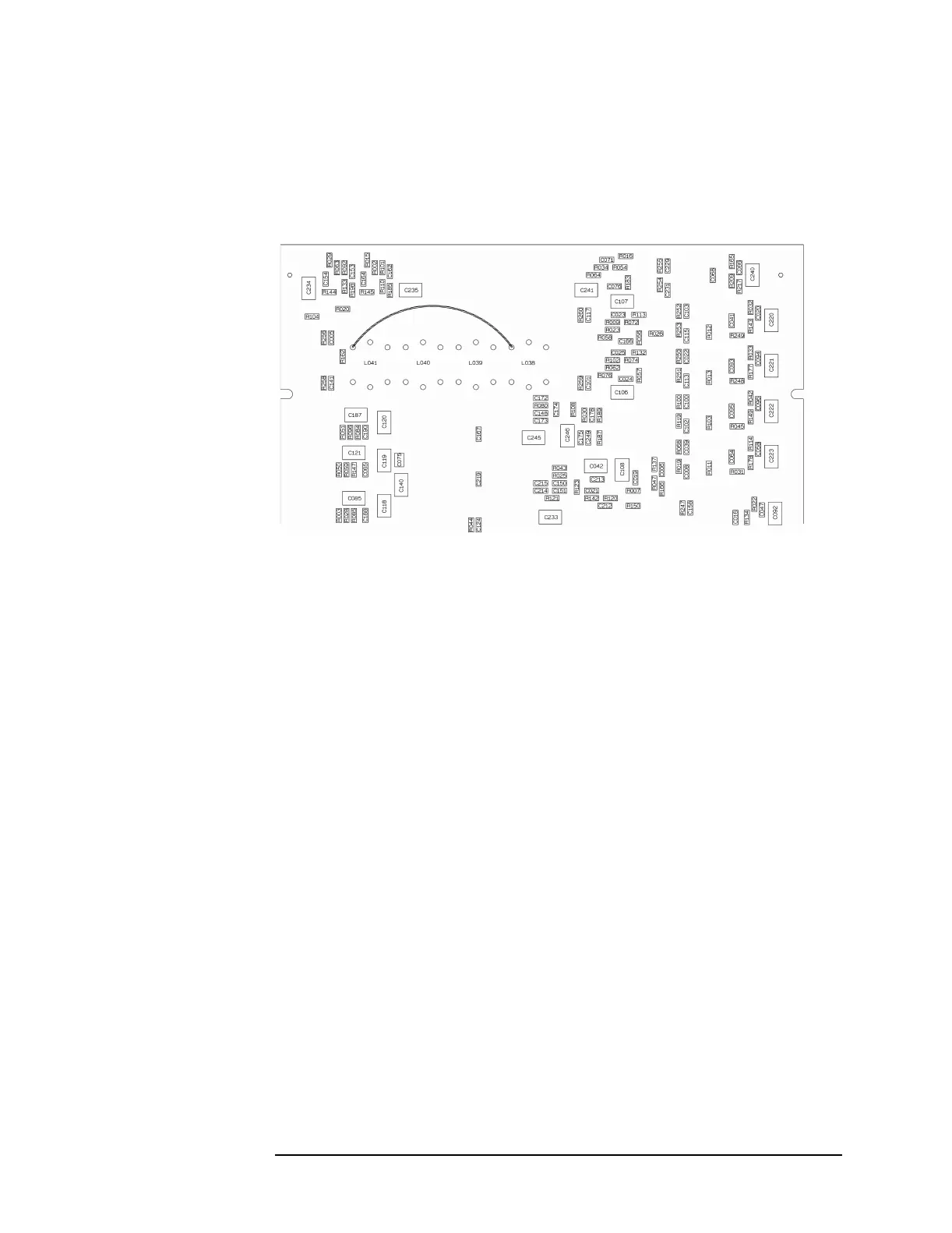

A10 Analog Input Component Locator, Back View
b Adjust the network analyzer’s reference level so the signal is
visible.
c Adjust L38 for a minimum marker reading using the flat-edge
adjustment tool.
d Remove the jumper.
