2-20
Adjusting the Analyzer
To adjust anti-alias filter

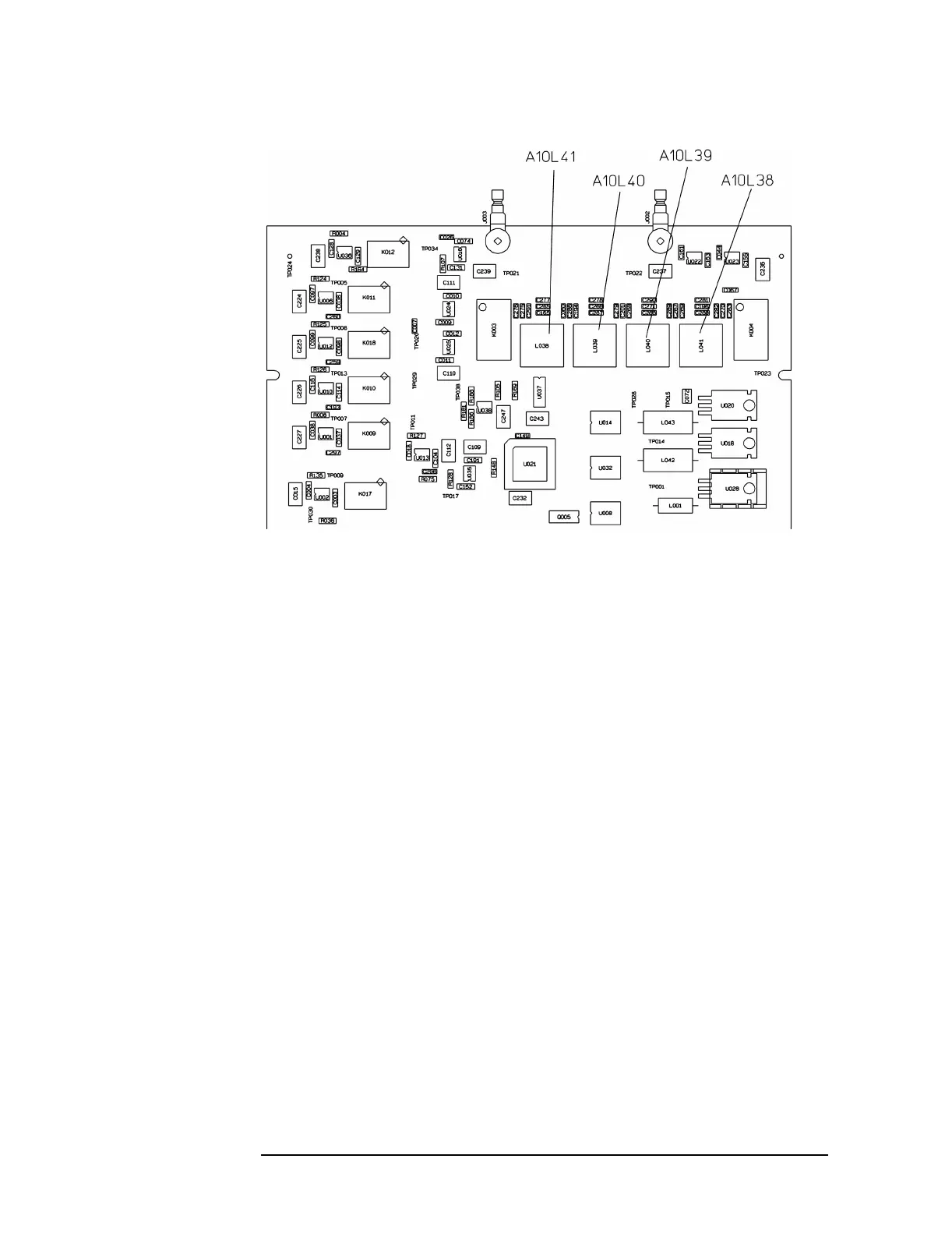

A10 Analog Input Component Locator, Front View
4 Normalize the measurement.
a Press the
[ setup 2 ] softkey.
b Set the network analyzer as follows:
c Wait for a complete sweep on the network analyzer.
d Store the trace data in a storage register.
e Set the network analyzer to divide the reference channel by the
storage register.
Receiver
Attenuation
Resolution BW
reference channel
0dB
1kHz
Source
Sweep Mode
Sweep Type
Sweep Time
Amplitude
Start Frequency
Stop Frequency
continuous
linear frequency sweep
1 s
-13 dBm
100 kHz
20.1 MHz
Display format log magnitude
