2-21
Adjusting the Analyzer
To adjust anti-alias filter
5 Adjust A10 L39, L40, and L41.
a Press the
[ setup 3 ] softkey.
b Set the network analyzer’s reference level 0 dB.
c Set the reference position at 80% of the display and the scale to
0.5 dB/div.
d Put the marker at 10.2 MHz.

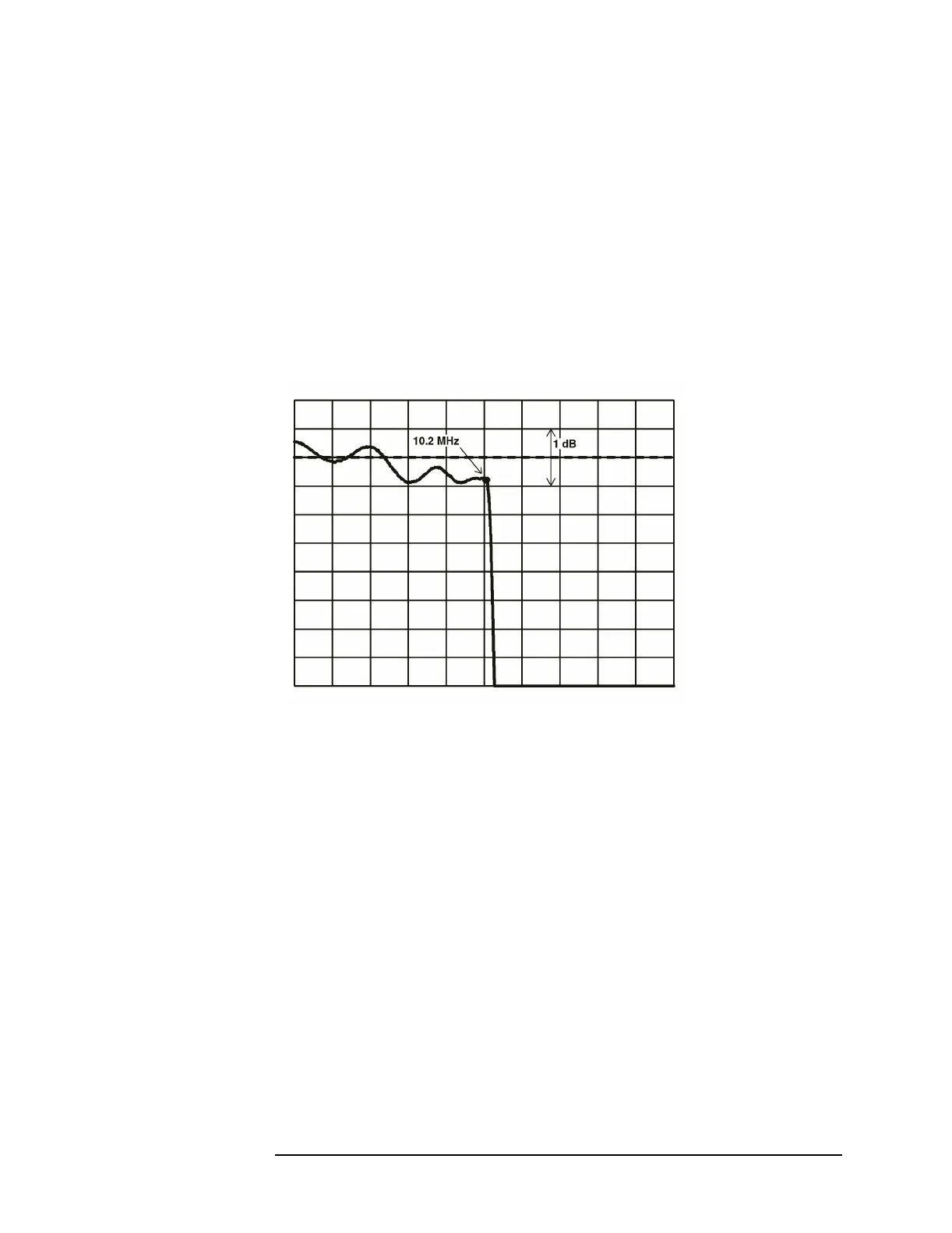

e Adjust A10 L39, L40, and L41 for less than 1 dB ripple from
100 kHz to 10.2 MHz using the flat-edge adjustment tool. L39,
L40, L41 Correctly Adjusted
