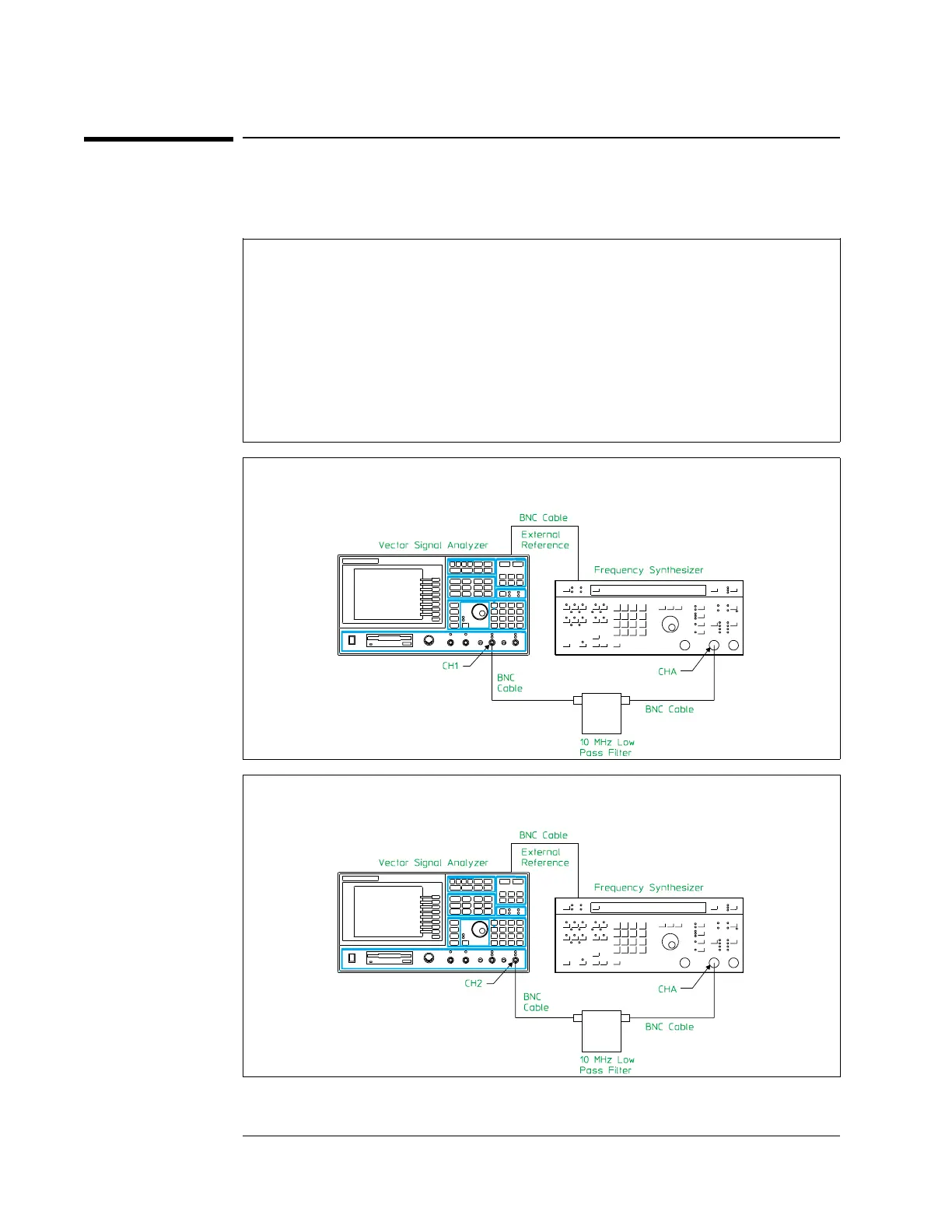

To set up the harmonic distortion test
Performance Test and Operation Verification
This test verifies that the Agilent 89410A meets its dynamic range
specification for harmonic distortion. In this test, a low pass filter attenuates
the harmonics of a signal from the synthesizer. The analyzer measures the
signal and the synthesizer level is adjusted for a full-scale input
(approximately 2 dBm). The analyzer then measures the second and third
harmonics. If the harmonics fall outside the analyzer’s frequency range, the
analyzer measures the alias frequencies. The synthesizer is set to 9.75 MHz
and 3.33 MHz.
1
2
Option AY7 only
Verifying Specifications Agilent 89410A
To set up the harmonic distortion test
2-28
