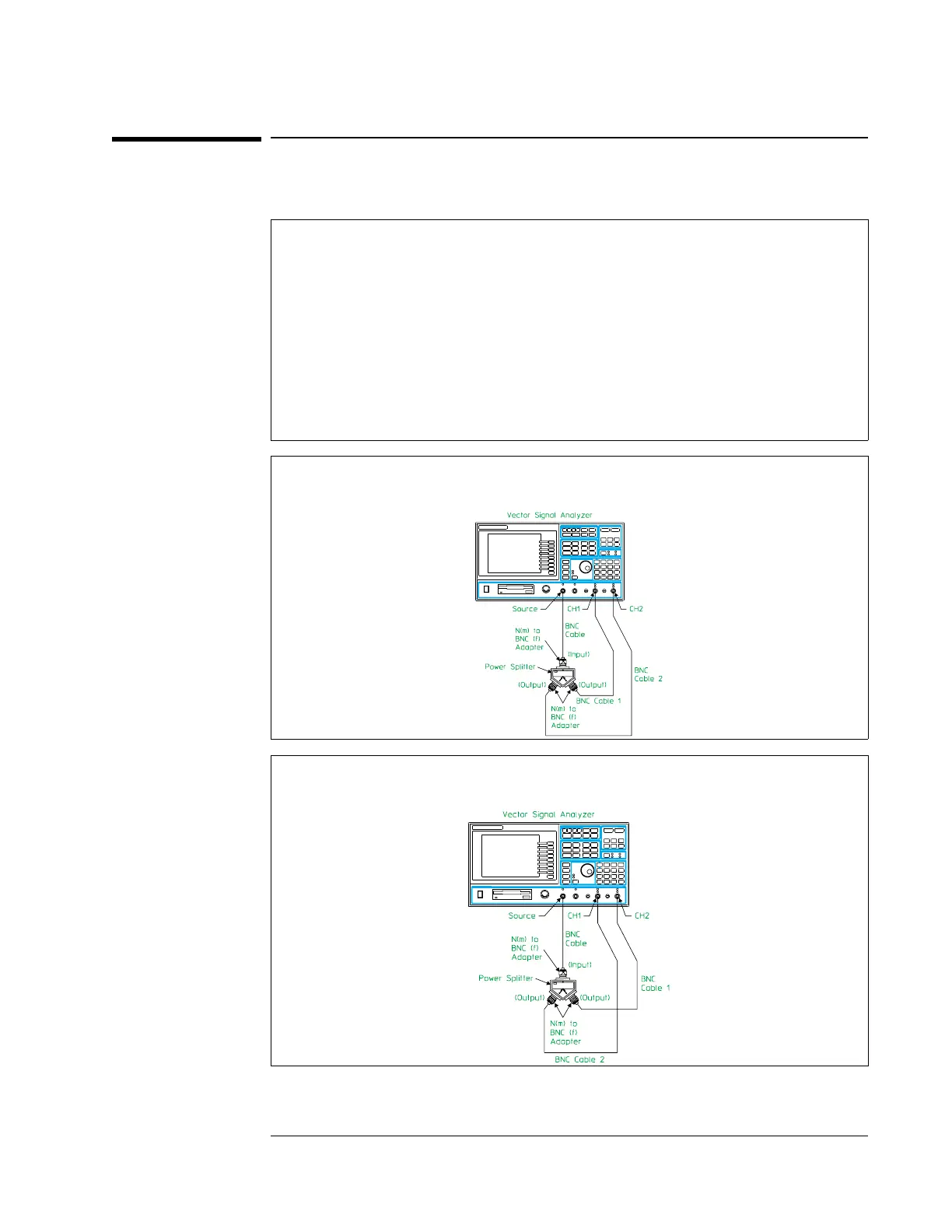

To set up the amp_phase match test
Performance Test and Operation Verification
This test is only for Agilent 89410A’s with the optional second channel
(option AY7). This test verifies that the Agilent 89410A, option AY7, meets
its two-channel specification for channel match. In this test, the Agilent
89410A’s source outputs a periodic chirp signal to the power splitter. The
power splitter and cables are calibrated by making two measurements and
storing the data in the internal data registers. A calibration trace is then
computed using the Agilent 89410A’s math capabilities. Channel match is
then measured using the calibration trace to correct for inaccuracies in the
power splitter and cables.
1 Option AY7 only
2 Option AY7 only
Agilent 89410A Verifying Specifications
To set up the amp_phase match test
2-21
