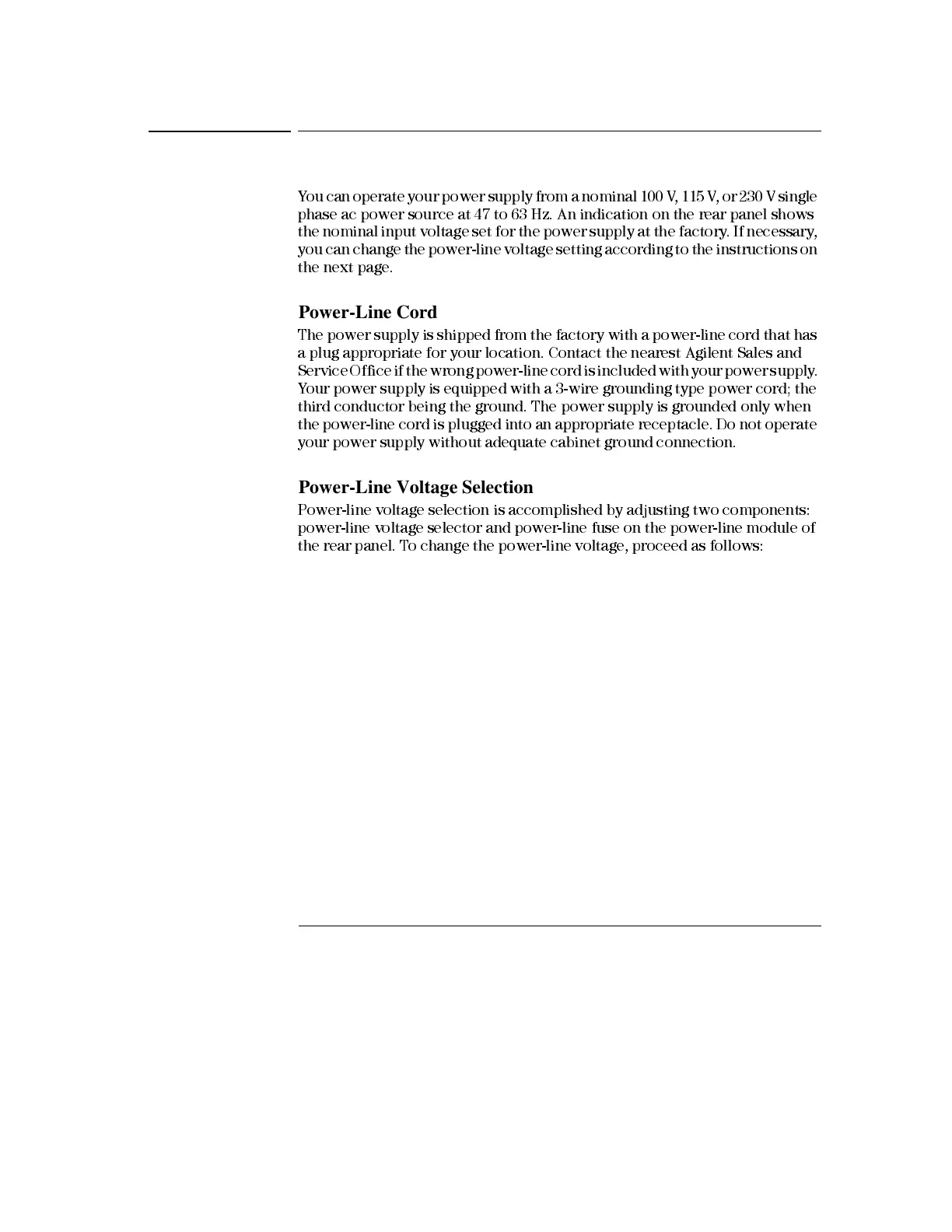

Chapter 1 General Information
Input Power Requirements
10
Input Power Requirements
Y ou ca n operate your power supply from a nominal 100 V , 115 V , or 230 V single
phase ac power source at 47 to 63 Hz. An indication on the rear panel shows
the nominal input voltage set for t he power supply at the fact ory. If necessary ,
you can change the power-line voltage setting according to the instructions on
the next page.
Power-Line Cord
The power supply is shipped from the factory wit h a power-line cord that has
a plug appropri ate for your location. Contact the nearest Agilent Sales and
Service Office if the wrong power-line cord is included with your power supply .
Your power supply is equipped with a 3-wire grounding type power cord; the
third conductor being the ground. The power supply is grounded only when
the power-line cord is plugged into a n appropriate recepta cle. Do not operate
your power supply without adequate cabinet ground connection.
Power-Line Voltage Selection
Power-line voltage selection is accomplished by adjusting two components:
power-line voltage selector and power-line fuse on the power-line module of
the rear pan el. To change the power-line voltage, proceed as follows:
