Chapter 2 Initial Operation
Output Checkout
17
2

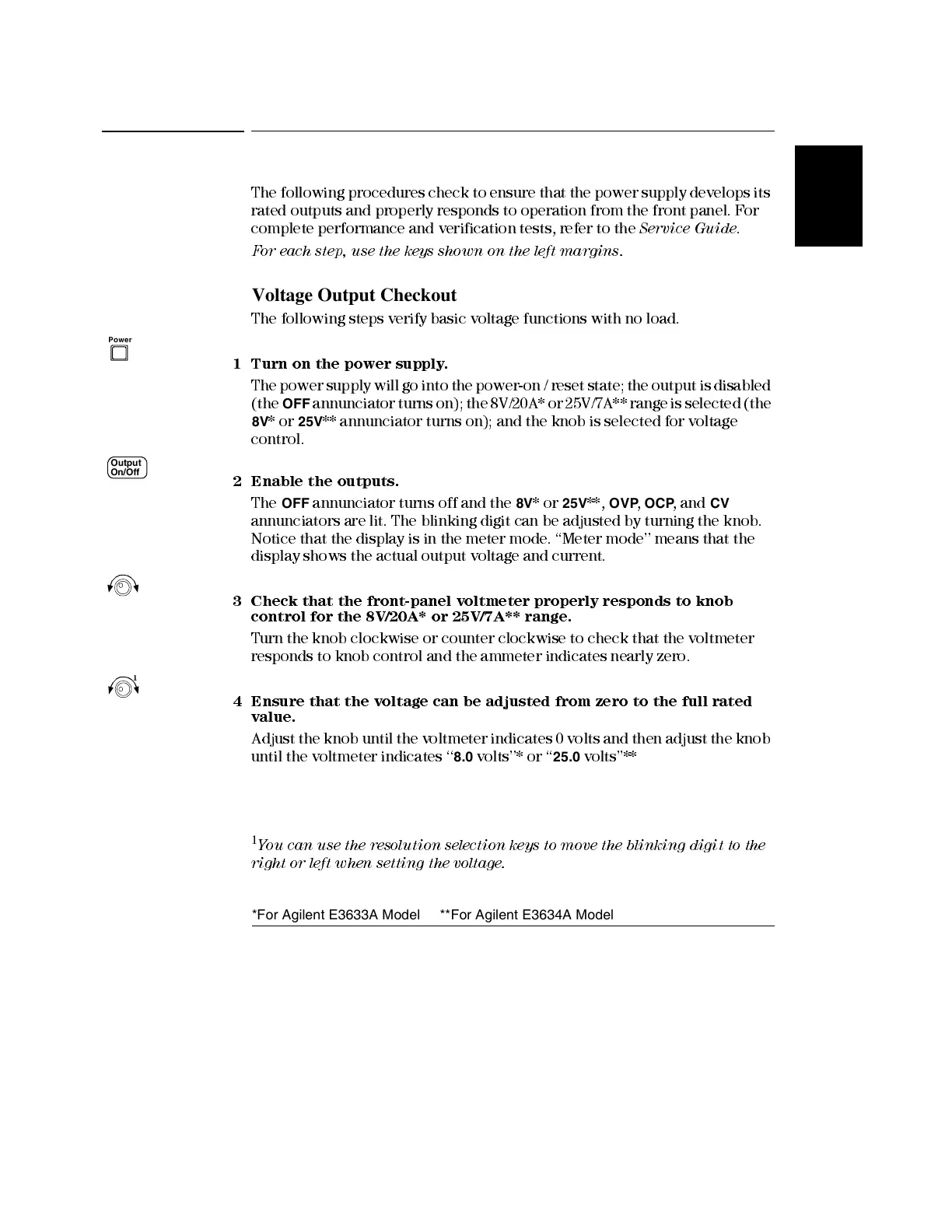

Output Checkout
The following procedures check to ensure that the power supply develops its
rated outpu ts and properly responds to operation from the front panel. For
complete performance and verification tests, refer to the Service Guide .
For each step, use the keys shown on the left margins.
Voltage Output Checkout
The following steps verify basic voltage functions with no load.
1 Turn on the power supply.
The power supply will go into the power-on / reset state; the output is disabled
(the
OFF annunciator turns on); the 8V/20A* or 25V/7A** range is select ed (the
8V * or 25V ** annunciator turns on); and the knob is selected for voltage
control.
2 Enable the outputs.
The OFF annunciator turns off and the 8V * or 25V **, OVP , OCP , and CV
annunciators are lit. The bli nki ng digit can be adjusted by turning the knob.
Notice that th e displ ay is in the meter mode. ‘‘Meter mod e’’ means that the
displ ay shows the actual output voltage and curr ent.
3 Check th at the front-panel voltmeter properly responds to knob
control for the 8V/20A* or 25V/7A ** range.
Turn the knob clockwise or counter clockwise to check that the voltmeter
responds to knob control an d the amm eter indicates nearly zero.
4 Ensu re that the voltage can be adjusted from zero to the full rated
value.
Adjust the knob until the voltmeter indicates 0 volts and then adjust the knob
until the voltm eter indicates ‘‘
8.0 volts ’’* or ‘‘ 25.0 vo l t s ’’ * *
1
You can use the resolution selection keys to move the blinking digit to the
right or left when settin g the voltage.
Power
Output
On/Off
1
*For Agilent E3633A Model **For Agilent E3634A Model
