Chapter 3 Front-Panel Operation
HP-IB Interface Configuration
51
3
HP-IB Interface Configuration

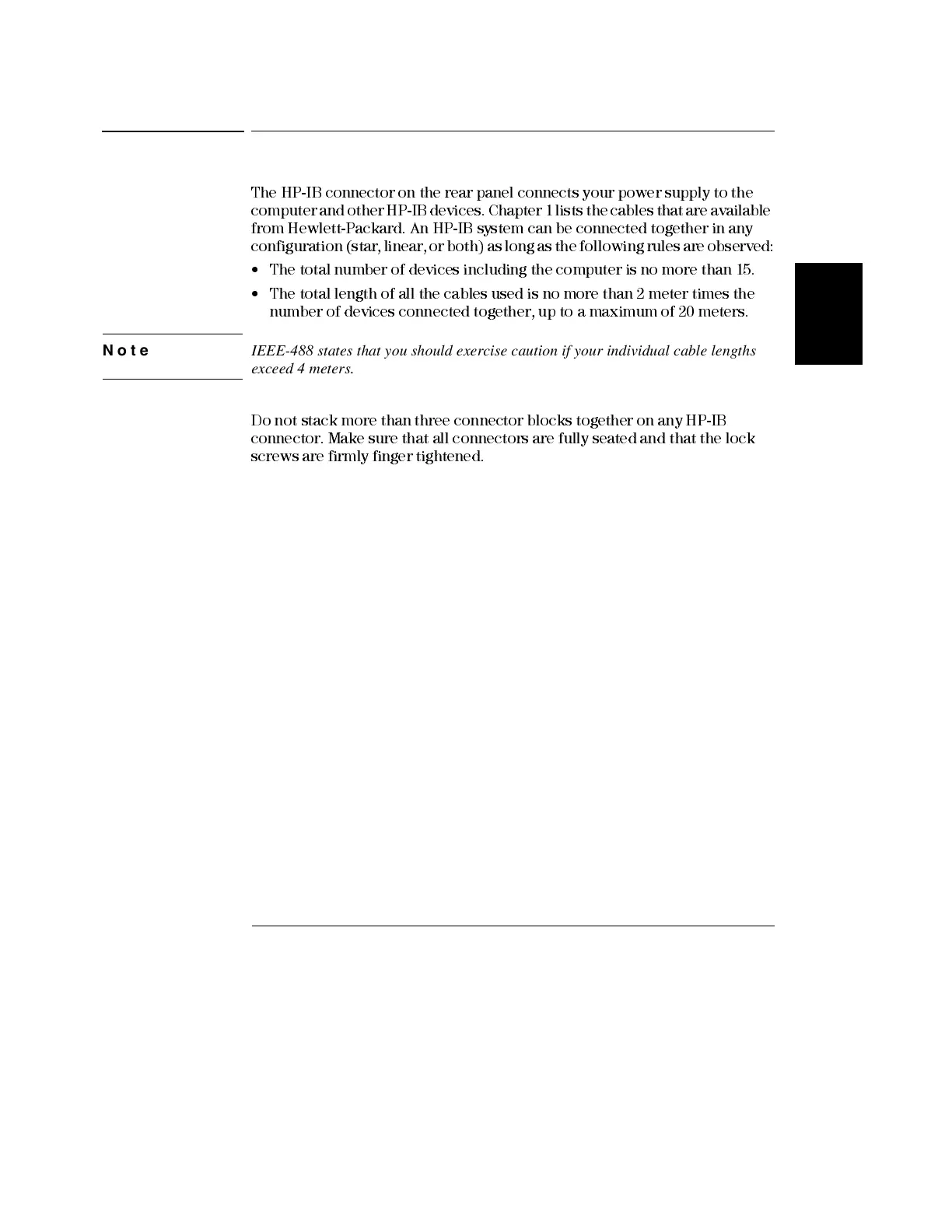

The HP-IB connector on the rear panel connects your power supply to the
computer and other HP-IB devices. Chapter 1 lists the cables that are available
from Hewlett-P ackard. An HP- IB system can be connected to gether in any
configuration (star , linear , or both) as long as t he following rules are obse rv ed:
• The total number of devices including the computer is no more than 15.
• The total length of all the cables used is no more than 2 meter times the
number of devices connected together, up to a maximum of 20 meters.
Note IEEE-488 states that you should exercise caution if your individual cable lengths
exceed 4 meters.
Do not stack more than three connector blocks together on any HP-IB
connector. Make sure that all connectors are fully seated and that the lock
screws are firml y finger tightened.
