3-30
Replaceable Parts
Cables

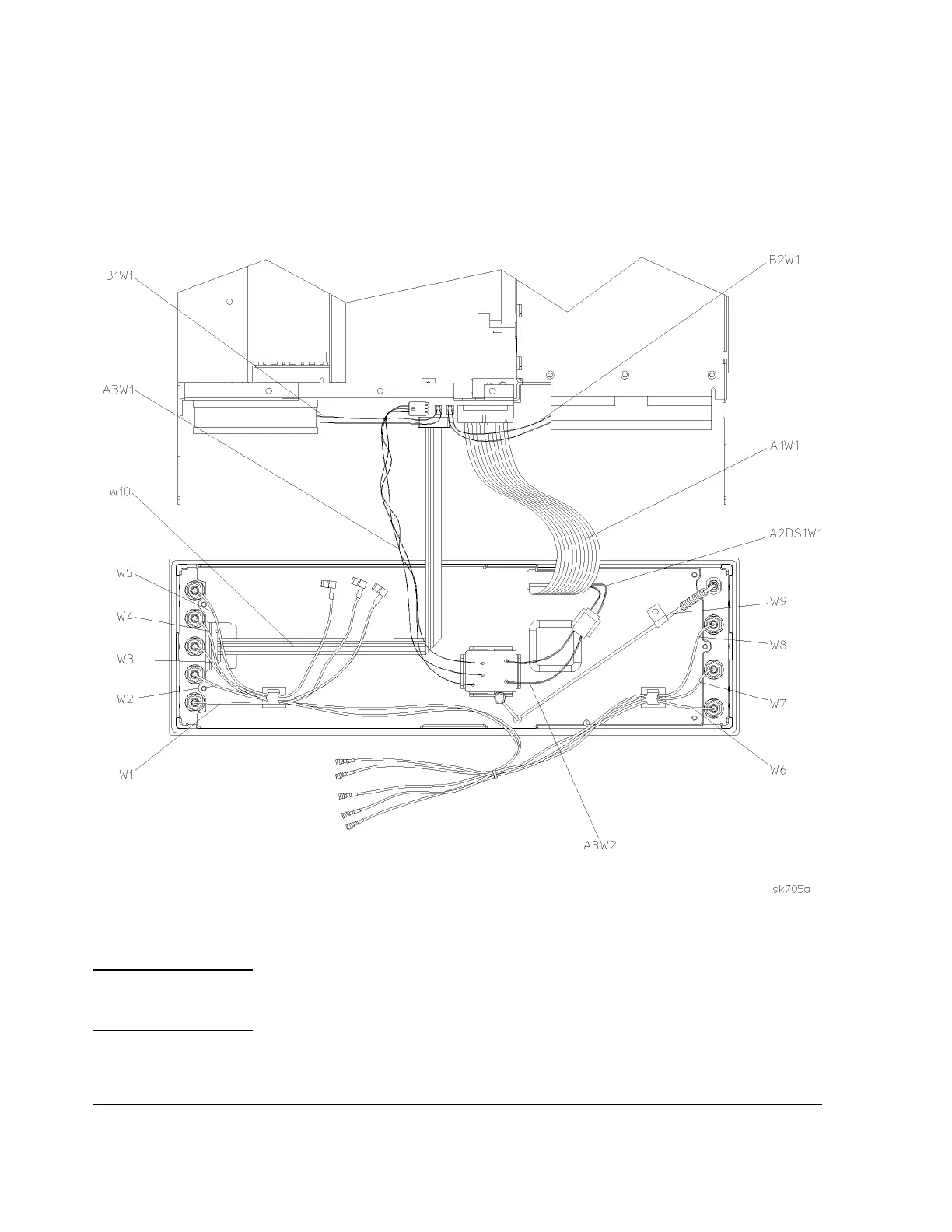

Inside Front Panel View
NOTE: The figure above represents an Option 1EH, UN3, or UN4 front panel assembly. On a
standard model, W3, W4, and W5 do not exist and the front panel connectors for W1 and
W2 will be in a slightly different location.
