132 1200 Series DAD and MWD User Manual
8Maintenance
Replacing Leak Handling System Parts
1 Pull the leak funnel out of the leak funnel holder.
2 Pull out the leak funnel with the tubing.
3 Insert the leak funnel with the tubing in its position.
4 Insert the leak funnel into the leak funnel holder.
5 Replace the front cover.
When required If the parts are corroded or broken
Tools required None
Parts required Leak funnel 5061-3388
Leak funnel holder 5041-8389
Leak tubing (120 mm) 0890-1711
Preparations Remove the front cover.

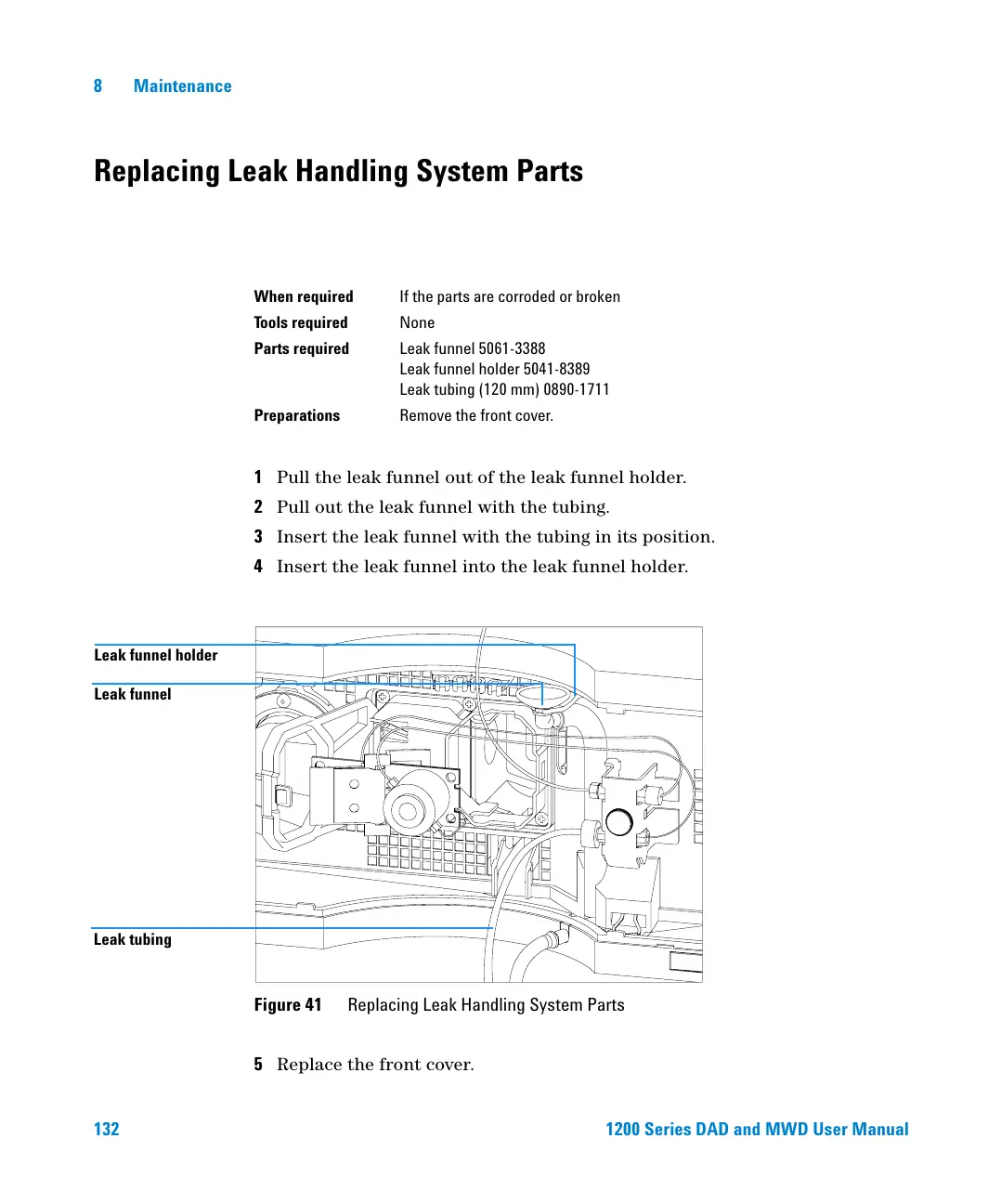

Figure 41 Replacing Leak Handling System Parts
Leak tubing
Leak funnel
Leak funnel holder
